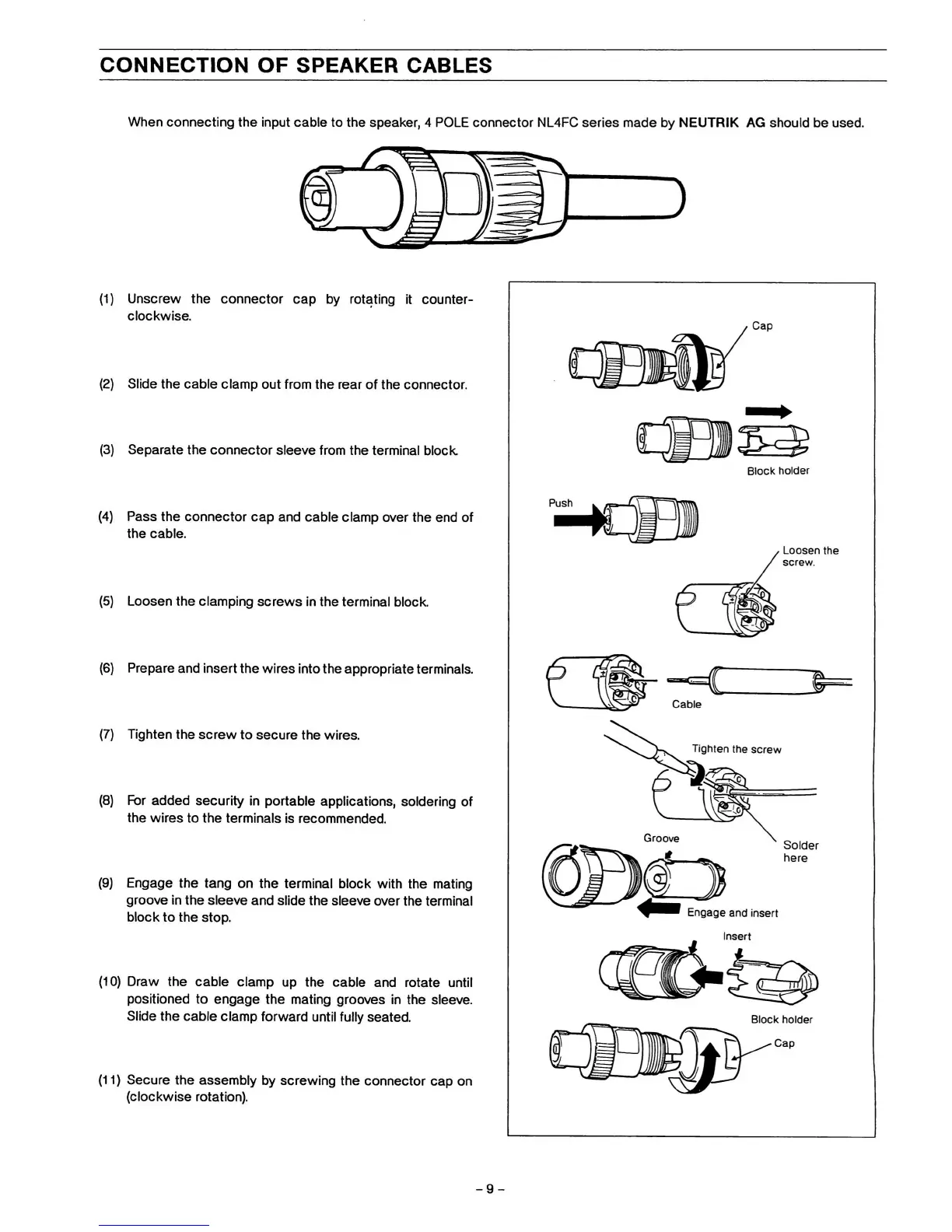

CONNECTION OF SPEAKER CABLES
When connecting the input cable to the speaker, 4 POLE connector NL4FC series made by NEUTRIK AG should be used.
3
(1) Unscrew the connector cap by rotating it
counter-
clockwise.
(2) Slide the cable clamp out from the rear of the connector.
(3) Separate the connector sleeve from the terminal
block.
(4) Pass the connector cap and cable clamp over the end of
the cable.
(5) Loosen the clamping screws in the terminal block.
(6) Prepare and insert the wires into the appropriate terminals.
(7) Tighten the screw to secure the wires.
(8) For added security in portable applications, soldering of
the wires to the terminals is recommended.
(9) Engage the tang on the terminal block with the mating
groove in the sleeve and slide the sleeve over the terminal
block to the stop.
(10) Draw the cable clamp up the cable and rotate until
positioned to engage the mating grooves in the sleeve.
Slide the cable clamp forward until fully seated.
(11)
Secure the assembly by screwing the connector cap on
(clockwise rotation).
Block holder
Loosen the
screw.
Cable
Tighten the screw
Groove
Solder
Engage and insert
Insert
Block holder
Cap
-9
