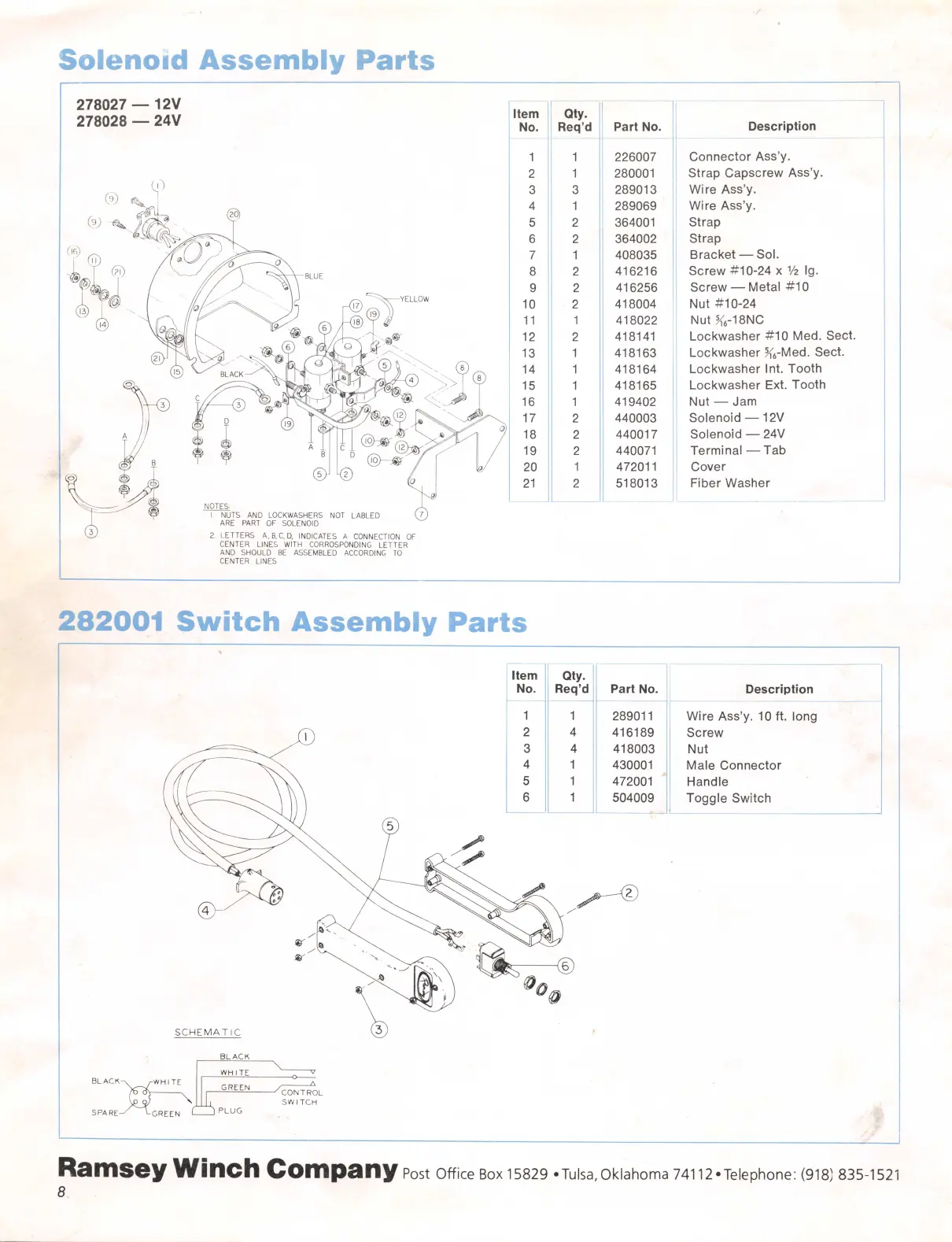

Solenoid Assembly Parts
278027 — 12V
278028 — 24V
ARE PART OF SOLENOID
2 LETTERS A, B,C,D, INDICATES A CONNECTION OF
CENTER LINES WITH CORROSPONDING LETTER
AND SHOULD BE ASSEMBLED ACCORDING TO
CENTER LINES
^ ^ )
BLUE
BLACK
Item Qty.
No.
Req'd Part No.
Description
1
1 226007
Connector Ass'y.
2
1
280001
Strap Gapscrew Ass'y.
3 3 289013
Wire Ass'y.
4
1 289069 Wire Ass'y.
5 2 364001
Strap
6 2
364002 Strap
7 1 408035
Bracket — Sol.
8 2
416216
Screw #10-24 x Vz Ig.
9
2 416256
Screw — Metal #10
10 2
418004
Nut #10-24
11 1 418022
Nut %-18NC
12 2
418141
Lockwasher #10 Med. Sect.
13
1 418163
' Lockwasher ?(j-Med. Sect.
14
1 418164
Lockwasher Int. Tooth
15 1 418165
Lockwasher Ext. Tooth
16 1 419402
Nut — Jam
17 2 440003
Solenoid — 12V
18 2
440017
Solenoid — 24V
19
2 440071
Terminal —Tab
20 1 472011
Cover
21 2 518013
Fiber Washer
282001 Switch Assembly Parts
Item
No.
Part No. Description
289011 Wire Ass'y. 10 ft. long
416189
Screw
418003 Nut
430001
Male Connector
472001
Handle
504009
Toggle Switch
SCHEMA! IC
