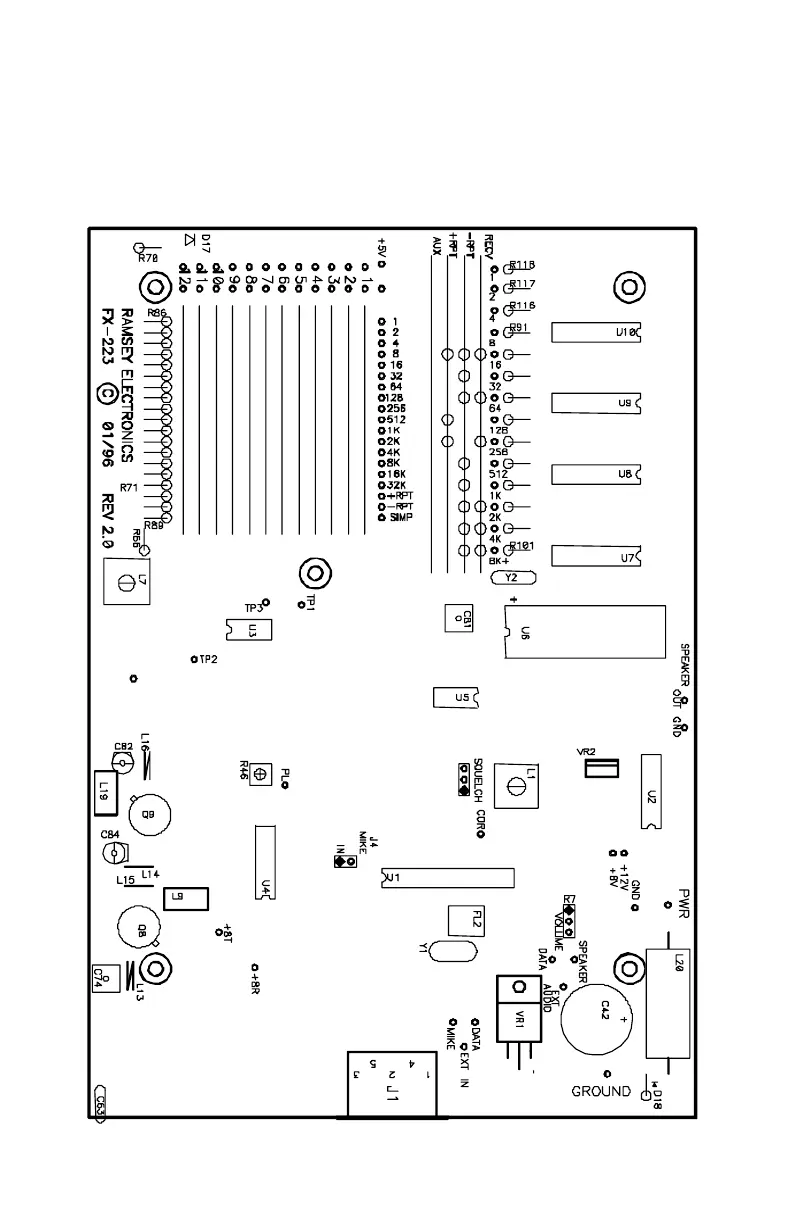

GUIDE TO PC BOARD I/O CONNECTIONS:
In addition to primary interconnections required for jacks and controls, etc.,
your FX-series Transceiver PC board provides additional access to
operating voltages and circuit features to make later customizing as neat
and easy as possible. All these points are plainly marked on the board itself
and highlighted on the facing page, with a few other components for
