Instrument Tour

R&S

RTC1000

19Getting Started 1335.7346.02 ─ 02

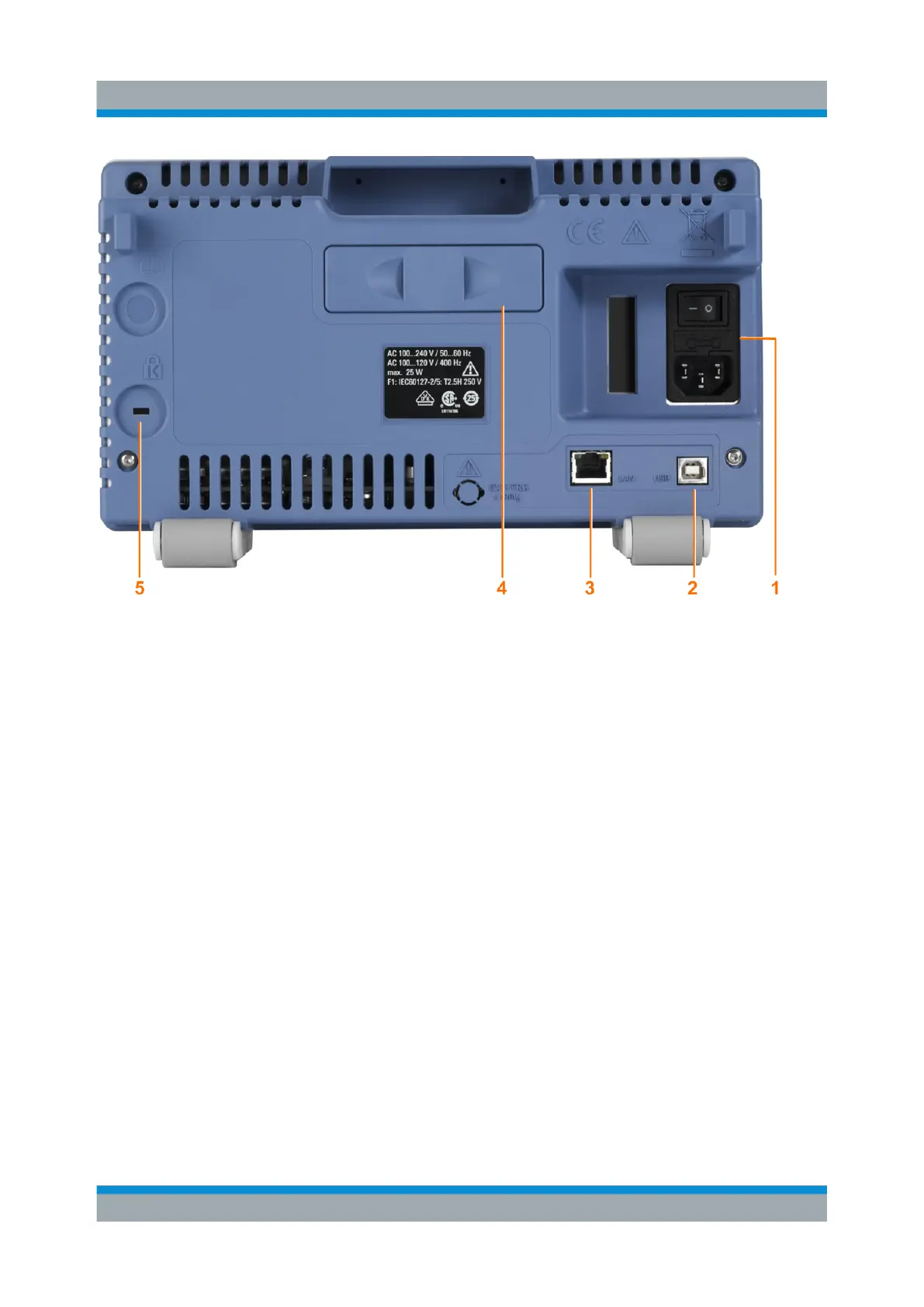

Figure 4-2: Rear panel view of R&S

RTC1000

1 = AC power supply connector and main power switch

2 = USB connector, type B

3 = LAN connector

4 = not used

5 = Kensington lock slot to secure the instrument against theft

AC supply: mains connector and main power switch (1)

The instrument supports a wide range power supply. It automatically adjusts to

the correct range for the applied voltage. There is no line voltage selector.

The AC main power switch disconnects the instrument from the AC power line.

USB type B (2)

USB 2.0 interface of type B (device USB) to connect a printer, or for remote con-

trol of the instrument.

Note: Electromagnetic interference (EMI) can affect the measurement results. To

avoid any impact, use only USB connecting cables with a maximum length of

1 m.

LAN (3)

8-pin connector RJ-45 used to connect the instrument to a Local Area Network

(LAN). It supports up to 100 Mbit/s.

Rear Panel
