Rane MP 44 - AUXILIARY INPUTS & OUTPUTS; AUX IN A & B; AUX OUT A & B; MASTER MIX PROCESSING

Manual-4

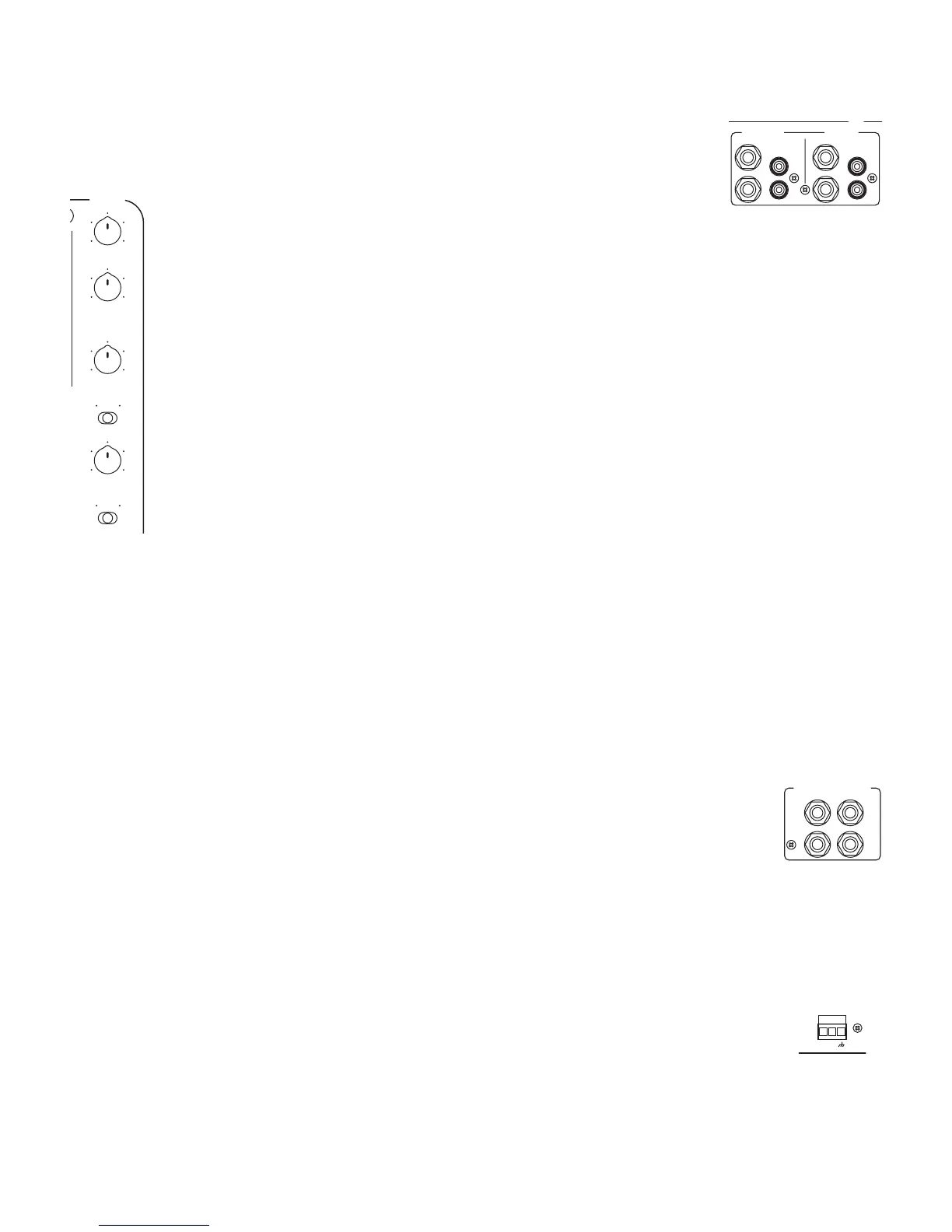

AUXILIARY INPUTS & OUTPUTS
Maximum Input and Output signal levels on the AUX jacks is +20 dBu.
AUX IN A is a line-level, unbalanced Input on stereo RCA jacks. AUX IN A is summed with the
4 Channel Input mix. AUX IN A applications include any unbalanced auxiliary input such as ADAT,
VCR, DVD, Video camera, computer audio card, etc.
AUX IN B is a line-level, balanced Input on two ¼" TRS jacks. AUX IN B is
summed with the 4 Channel Input mix. AUX IN B is ideal for use with a balanced
source located away from the main booth. A good example is a satellite performance mixer for a quest Turntablist.
AUX IN A & B level controls adjust gain from off to +6 dB.
AUX OUT A is a line-level, unbalanced Output on stereo RCA jacks.
AUX OUT B is a stereo, line-level, balanced output. e jacks are ¼" TRS.
AUX OUT A & B level controls adjust gain from off to +6 dB.
AUX OUT A, PRE • POST • MIC switch sets AUX OUT A source to PRE-Master-Effects-loop, POST-Mas-
ter-Effects-Loop or Post-Master-Effects-Loop-plus-MIC. Source selection and level control give AUX OUT A the
versatility to accommodate applications ranging from recording to additional Zone Output.
AUX OUT B PRE • POST • MIC switch sets AUX OUT B source to PRE-Master-Effects, POST-Master-Ef-
fects or Post-Master-Effects-plus-MIC. Source selection and level control give AUX OUT B the versatility to accom-
modate applications ranging from recording to additional Zone output.
MASTER MIX PROCESSING
e MASTER mix is the point at which all input signals (CH 1 – CH 4, AUX A, AUX B, MAIN MIC and AUX MIC) are
summed together to form one stereo signal.
MASTER signal processing includes the MASTER EFFECTS loop, REMOTE LEVEL control, MASTER LIMIT, system
MONO, system BALANCE, LIGHT TRIGGER and EMERGENCY PAGE.
All MASTER signal processing influences HOUSE and BOOTH Outputs equally. e MASTER mix is then split into HOUSE
and BOOTH Outputs.
Maximum Input and Output signal levels on MASTER EFFECTS jacks is +20 dBu.
MASTER EFFECTS SEND is an unbalanced Output on ¼" Tip/Sleeve jacks. is Output sends signal to
any external processing, including EQ, dynamic range control, special effects, etc. e MASTER signal is always
present at this Output.
MASTER EFFECTS RETURN is an unbalanced Input on ¼" Tip/Sleeve jacks. is Input receives the
signal from the external processor. ese are switching jacks—if no external connection is made to the jacks, the
MASTER EFFECTS SEND signal is internally connected to the MASTER EFFECTS RETURN.
e MASTER EFFECTS switch enables the MASTER EFFECTS loop. As stated above, if an external connection is not made
to the RETURN jacks, the MASTER EFFECTS switch has no effect.
e REMOTE LEVEL port provides a means to control the level of the MASTER mix from a remote loca-
tion. e range of control is 0 dB to –40 dB. Applications include ”gain riding” DJs, setting a comfortable listening
level from a remote location and reducing the maximum available gain. See VR 1 Remote Level Control on page
Manual-7 for hookup details.
