Range Master 463724313 - Assembly

18
3
4
Front Panel

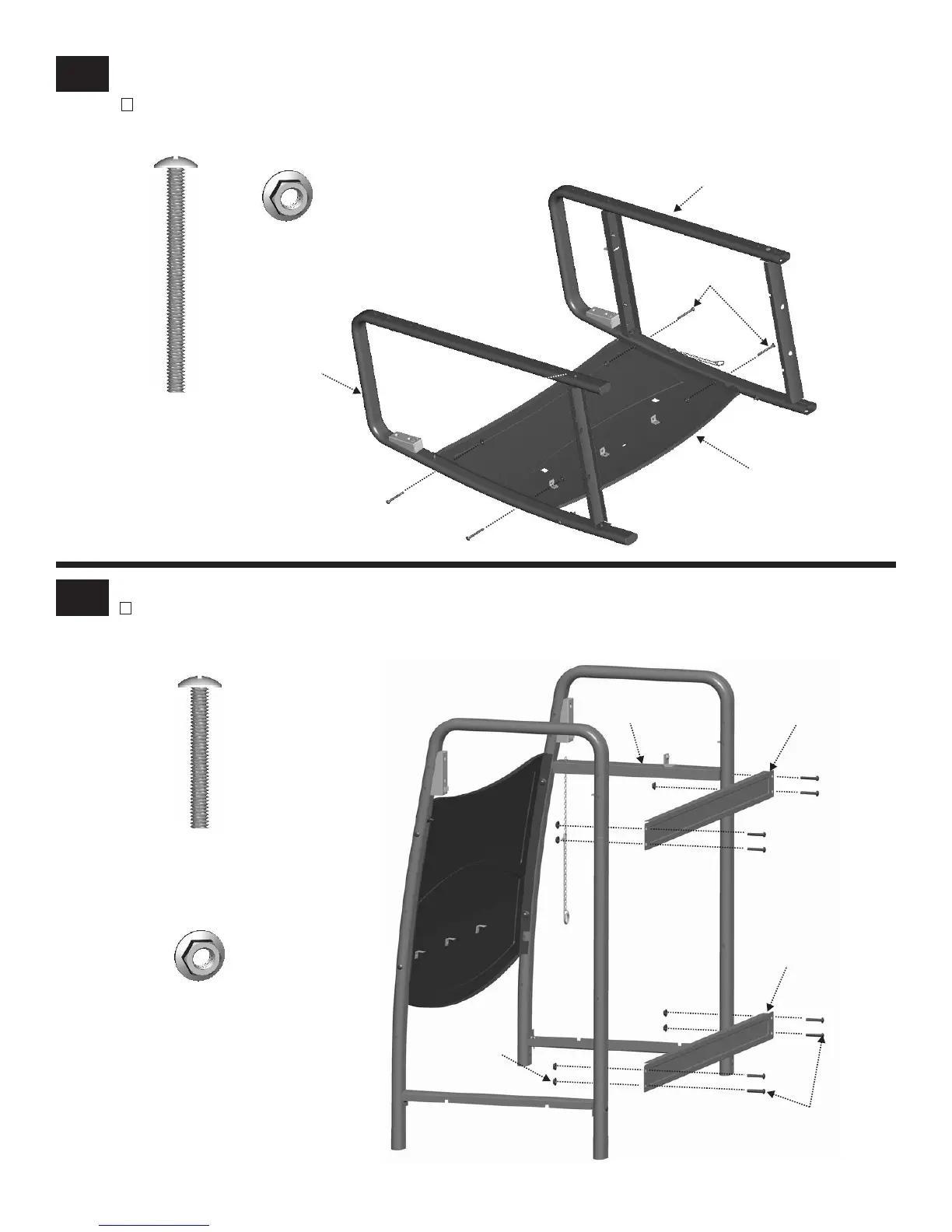

Lay front legs down on the floor
Slide front panel between legs. Attach with #10-24x2’’ machine screws and #10-24 flange nuts.
#10-24x2”
Machine Screw
Qty. 4
#10-24
Flange Nut
Qty. 4
Back Braces to Cart
Attach back braces with #10-24x1-1/4’’ machine screws and #10-24 flange nuts.
#10-24x1-1/4”
Machine Screw
Qty. 8
#10-24
Flange Nut
Qty. 8
Right leg
assembly
Left leg
assembly
Front panel
#10-24x2”
Machine Screw
Side brace
Back brace
Back brace
#10-24x1-1/4”
Machine Screw
#10-24
Flange Nut
