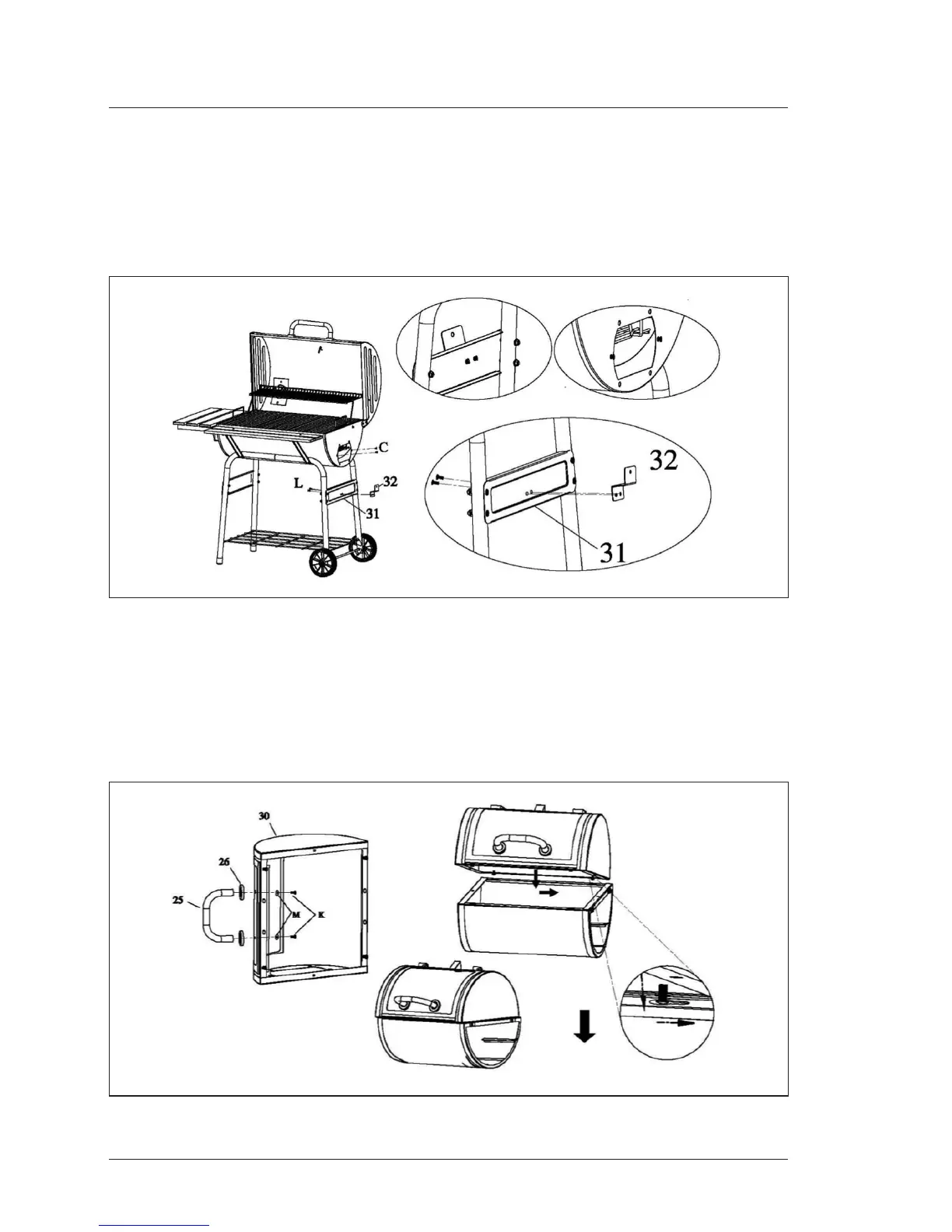

STEP 17
ParallyscrewtwoM6*12Screws(C)tothegrillbowlasshownbelow.
InstalltheFireboxSupporngPiece(32)totheRightLegSupport(31)usingtwoM5*15
Screws(L).
STEP 18
InstalltheFireboxHandle(25)andFireboxHandleSpacers(26)totheFireboxLid(30)with
M5*10Screws(M)anadM5*14Washers(K).
Posionthetwopiecesofthereboxtogether.Alignandseattheupperpiecescrewsinto
theholesinthelowerpieceasshown.
Lockfourscrewsandholesintoposionbyslidingtheupperpiecetotheright.
