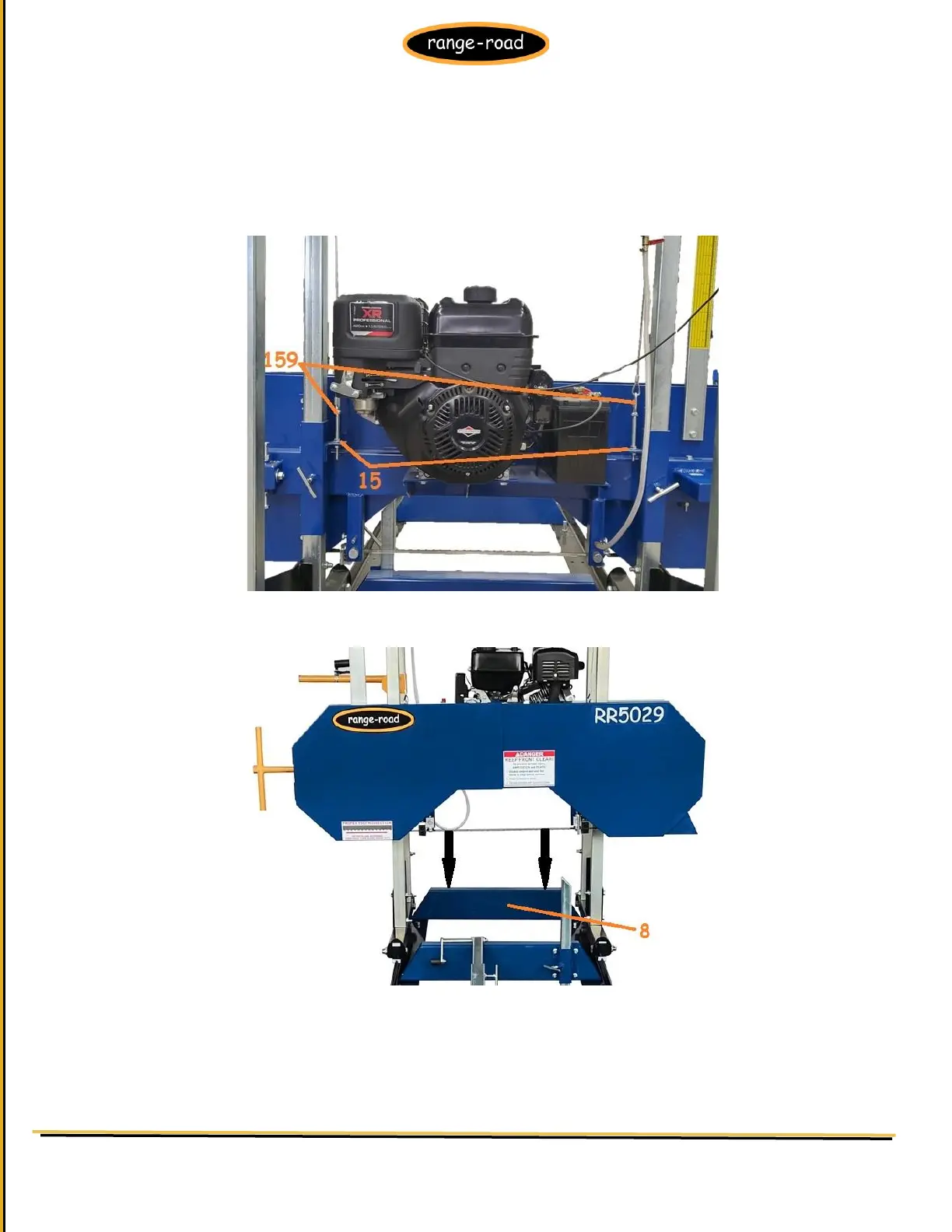

Figure S: Blade Adjustment
For horizontal Blade adjustment, loosen the Nut (15) (see Assembly Diagram) and adjust the left and right
Cable. Anchor Bolts (159) until the distance between the ends of the Blade and the top of the Middle Support
(8) are the same as shown in Figure S.
NOTE: Use a tape measure to verify distances.
