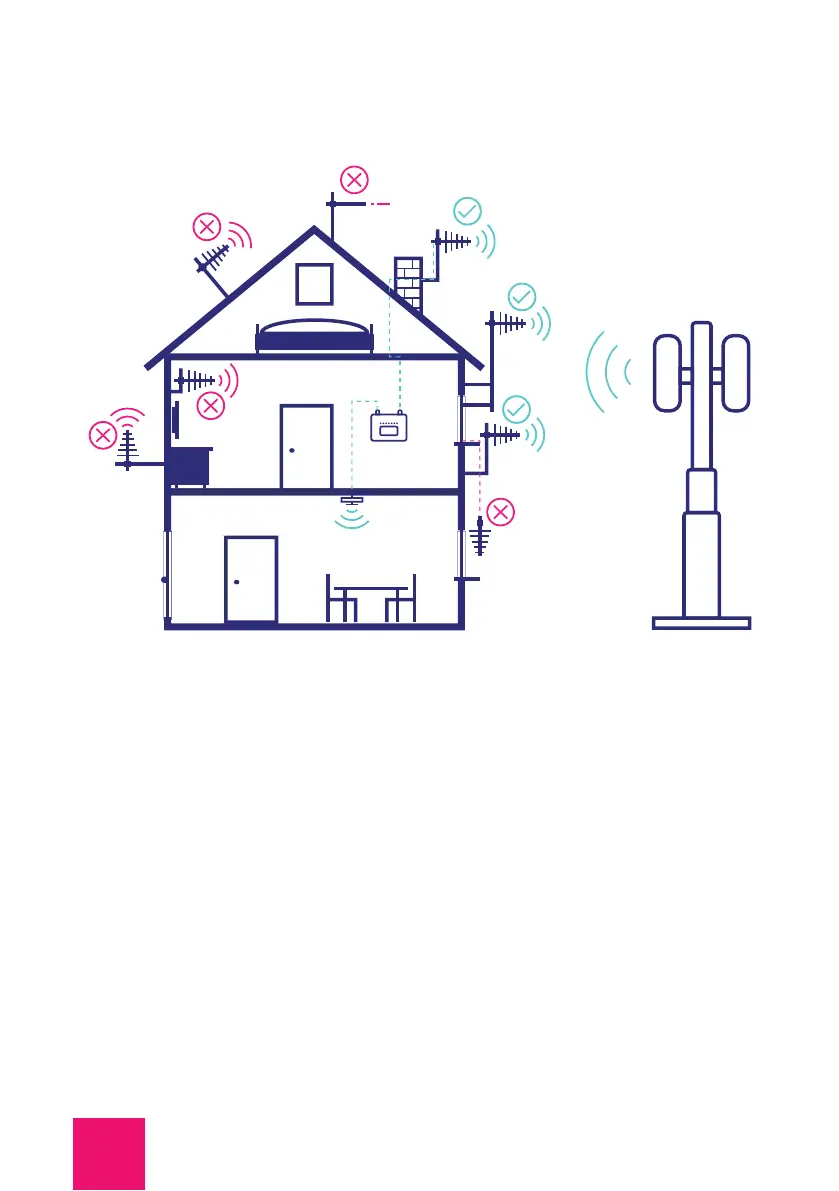

Сorrect and incorrect installation of an outdoor
antenna
1. Do not install the antenna on the roof slope.
6. The outdoor antenna is installed on the chimney. This
allows you to optimally tune it to the base stations. If the roof
is covered with metal panels, it creates an additional shield
between the outdoor and indoor antenna.
7. The antenna is installed on the mast. This allows to raise the
antenna higher and get a better input signal.
8. The antenna is installed on the wall of the building. This is the
quickest and easiest way to install the antenna.
3. Do not point the antenna towards the sky.
2. Wrong antenna direction.
5. The outdoor antenna must be securely mounted and pointed
towards the base station.
4. Installing an outdoor antenna inside will significantly reduce
signal performance.
