4.5. Lightning Surge Protector Installation

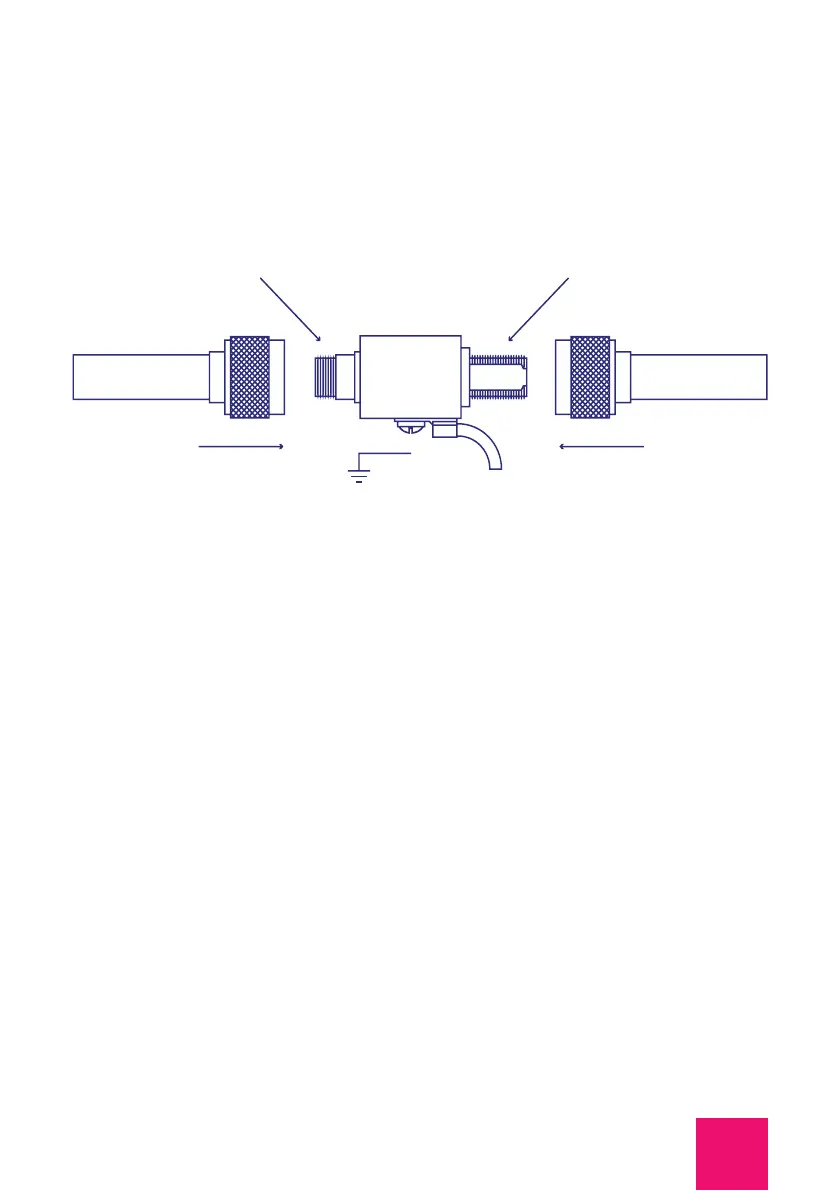

Connector*
Coax cable
*Unit provides protection
to both connectors
equally.
Coax cable
To ground
Connector*
The lightning surge protector must be installed between the
outdoor antenna and the coax cable connected to the repeater.
After connecting the lightning surge protector to the outdoor
antenna, connect one end of the coax cable to the repeater
and the second - to the surge protector. Since this cable runs
inside your home, make sure the lightning surge protector is
located outside your home, near the entry to mitigate fire
hazards.
To ground the surge protector, we suggest using a copper
ground wire no smaller than 2,5mm. If you are using insulated
wire, make sure to strip about 2-3cm of the insulation from
both ends before installing the wire.
Use a wire that’s long enough so it reaches your grounding
point, but short enough to avoid creating sharp bends or
coiling the wire. Also, avoid using braided copper wire.
Attach the bottom of the grounding wire to your grounding point.
ATTENTION! Not grounding your lightning surge protector will
have the same effect as not having a surge protector.
