Rangemaster Chimney Hood - Characteristics; Dimensions; Components

EN
1
1
11

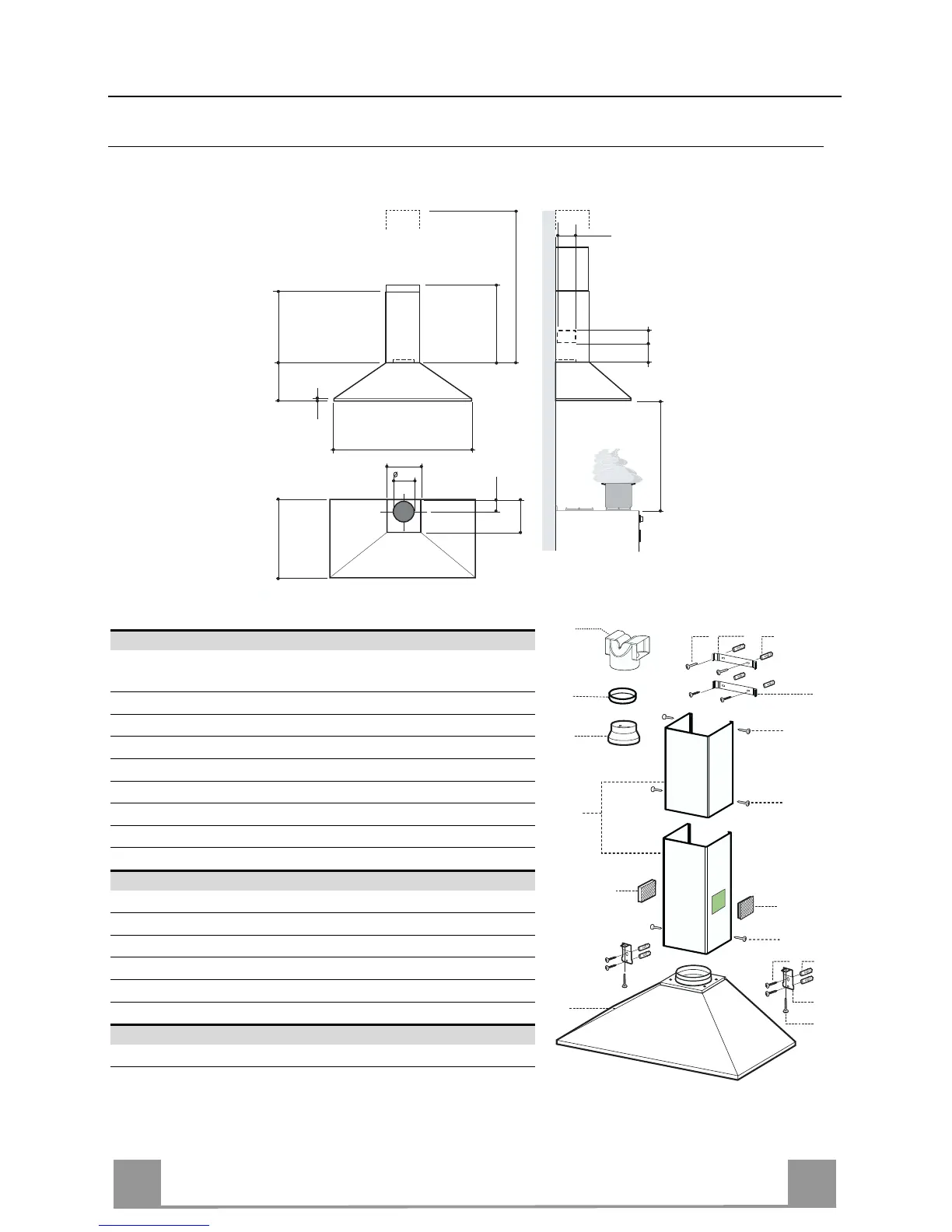

CHARACTERISTICS
Dimensions
650 min.
898 - 1098 - 1198
490
240
100
15
0
4 0
205
21
0
min.495
max. 770
465
90
132
80
Components
Ref. Q.ty Product Components
1 1 Hood Body, complete with: Controls, Light, Blower,
Filters
2 1 Telescopic Chimney comprising:
2.1 1 Upper Section
2.2 1 Lower Section
8a 1 Right Air Outlet Grill
8b 1 Left Air Outlet Grill
9 1 Reducer Flange ø 150-120 mm
10 1 Adapting ring ø 120-125 mm
15 1 Air Outlet Connection
Ref. Q.ty Installation Components
7.1 2 Hood Body Fixing Brackets
7.2.1 2 Upper Chimney Section Fixing Brackets
11 8 Wall Plugs
12a 8 Screws 4.2 x 44,4
12c 6 Screws 2.9 x 9.5
12d 2 Screws M4 x 25
Q.ty Documentation
1 Instruction Manual
15
12c
12c
2.1
2.2
2
7.2.1
12a 11
12c
9
10
7.2.1
1
8b
8a
7.1
12a 11
12d
