CARE AND CLEANING OF YOUR BEVERAGE CENTRE
Door alignment
The door should be parallel to the sides and top of the
refrigerator. If alignment is necessary the door may be
adjusted by loosening the 2 screws which secure the hinge
adapter brackets to the door and adjusting the door side to
side. Use a 5/32” hex key for this procedure. (See Figure 9
below).

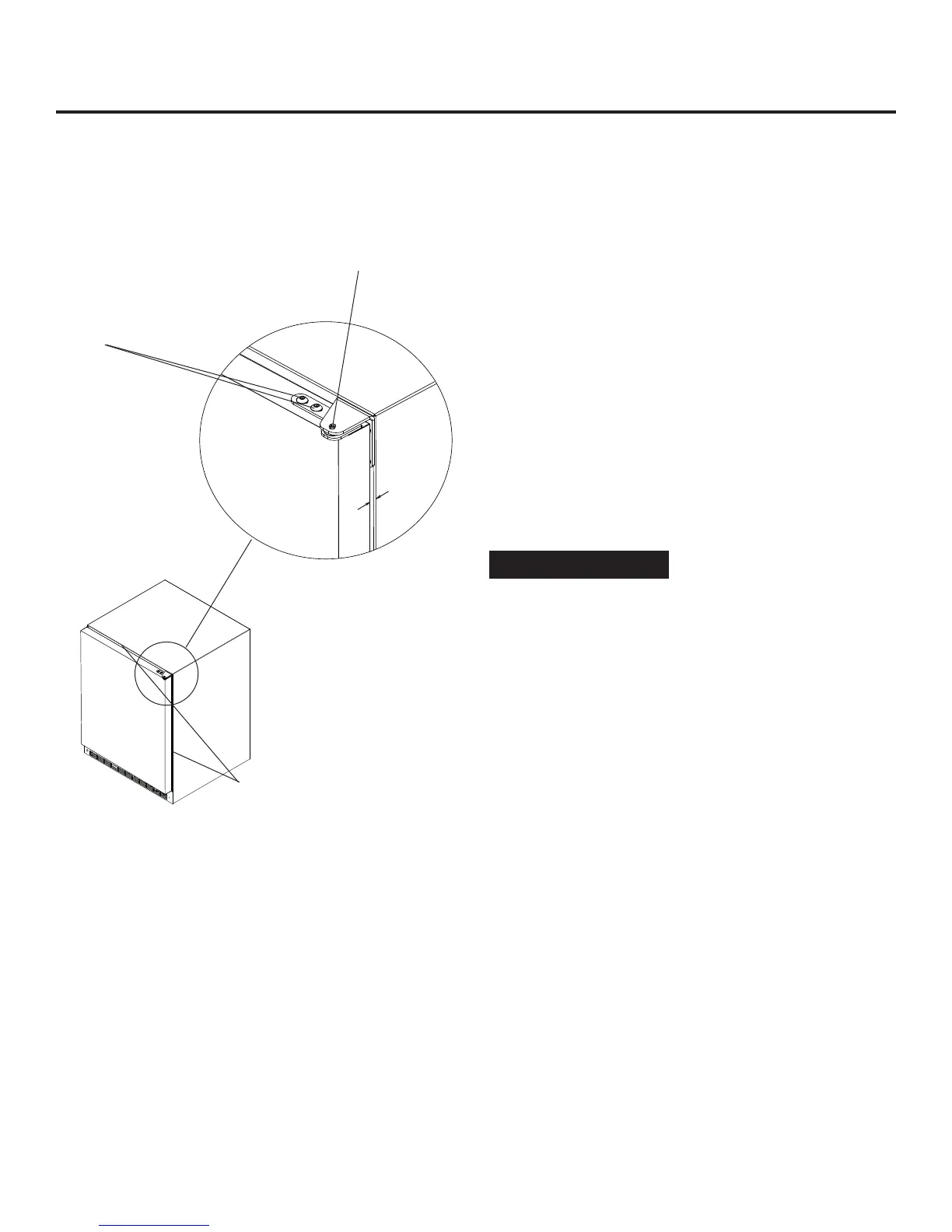

Figure 9
Hinge adapter screws loos-
en these to adjust door, on
the top and bottom of the
door.
Remove the top
hinge pin to re-
move the door.
Door must be
parallel to top
and sides of
refrigerator.
7.1mm minimum
NOTE: For door closer to work properly it is necessary to
maintain a minimum space of 7.1mm between door and
cabinet flange as shown. This space can be adjusted by
adjusting the top and bottom hinge adapter.
