Rans Inc. Section 1
Model S-7LS COURIER General Information
Revision - B May 8, 2007 1- 15
1 Engine Choke Control 17 Outside Air Temperature Gauge
2 Carburetor Heat Control 18 Hour Meter
3 Cabin Heat Control 19 Fuel Pressure Gauge
4 Park Brake Control 20 Voltmeter
5 Intercom 21 Tachometer RPM- Gauge
6 Air Speed Indicator 22 Transponder
7 ELT Remote Control 23 Radio/ GPS Combination
8 Trim Position Indicator 24 Master Switch
9 Vertical Speed Indicator 25 Fuel Pump Switch
10 Slip Indicator 26 Avionics Master Switch
11 Altimeter 27 Ignition Key Switch
12 Music In (Plug) 28 Trim Switch Elevator Trim “Nose UP”
13 Emergency Head Set Plug In 29 Trim Switch Elevator Trim “Nose Down”
14 Oil Pressure Gauge 30 Push to Talk Switch (Radio)
15 Cylinder Head Temperature Gauge 31 Remote Frequency Select Switch
16 Oil Temperature Gauge 32 Compass
33 Fuel Main Shut Off Valve (Floor Board)

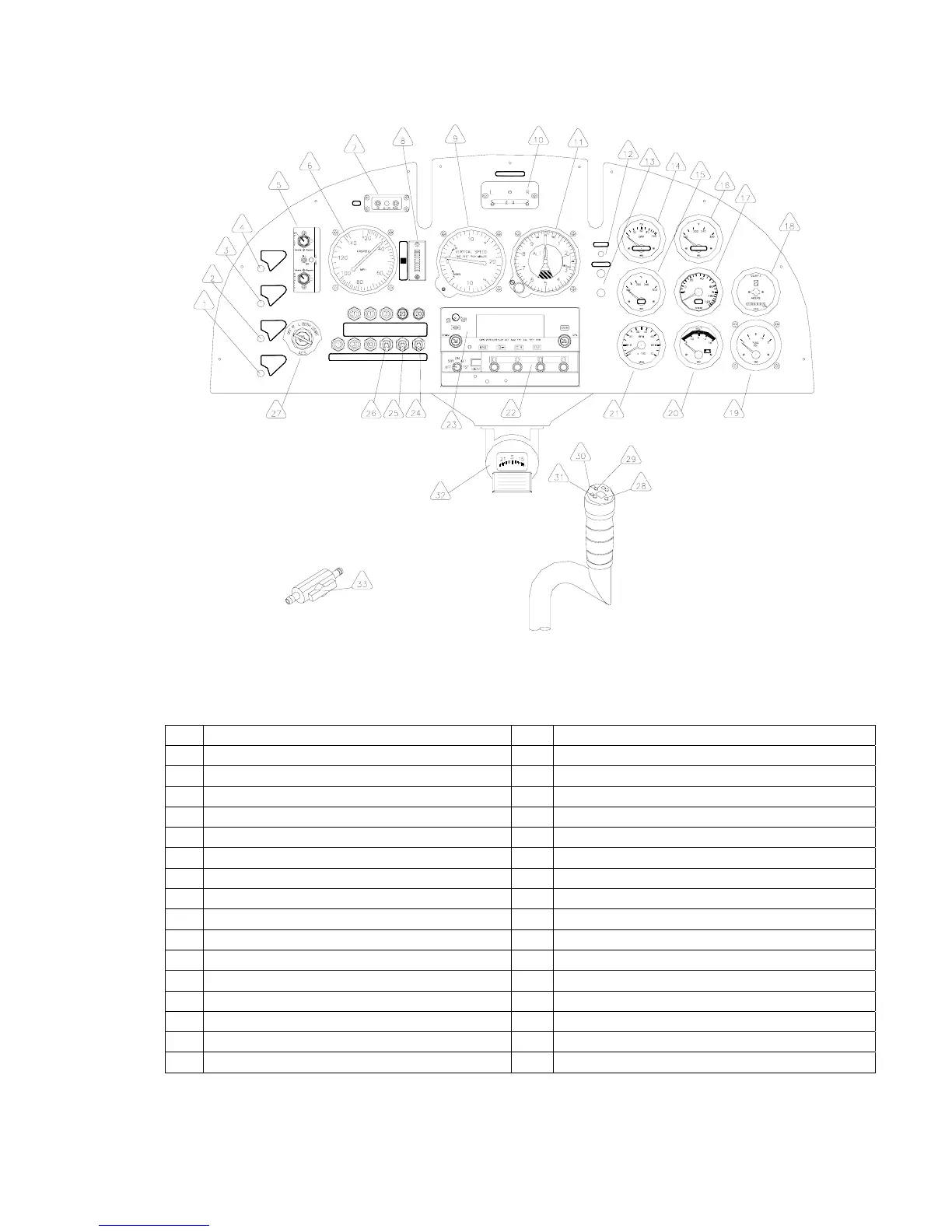

Figure 1- 6 Instrument Panel
CARB HEAT
CHOKE PULL
PULL ON
ON ON
FUEL
PUMP
AVIONICS
MASTER
ON
MASTER
RADIO/GPSTRANSPO.INTERCOM
REG.
OUTPUT
ENG. INSTR.
TRIM
STARTER REGULATOR
OPEN
SPINS PROHIBITED
ELT
CABIN HEAT
PULL ON
PARKING
PULL SET
DOWN
UP
T.O.
BRAKE
MUSIC IN
EMRG. COM
OIL PRESS. OIL TEMP.
CHT OAT
