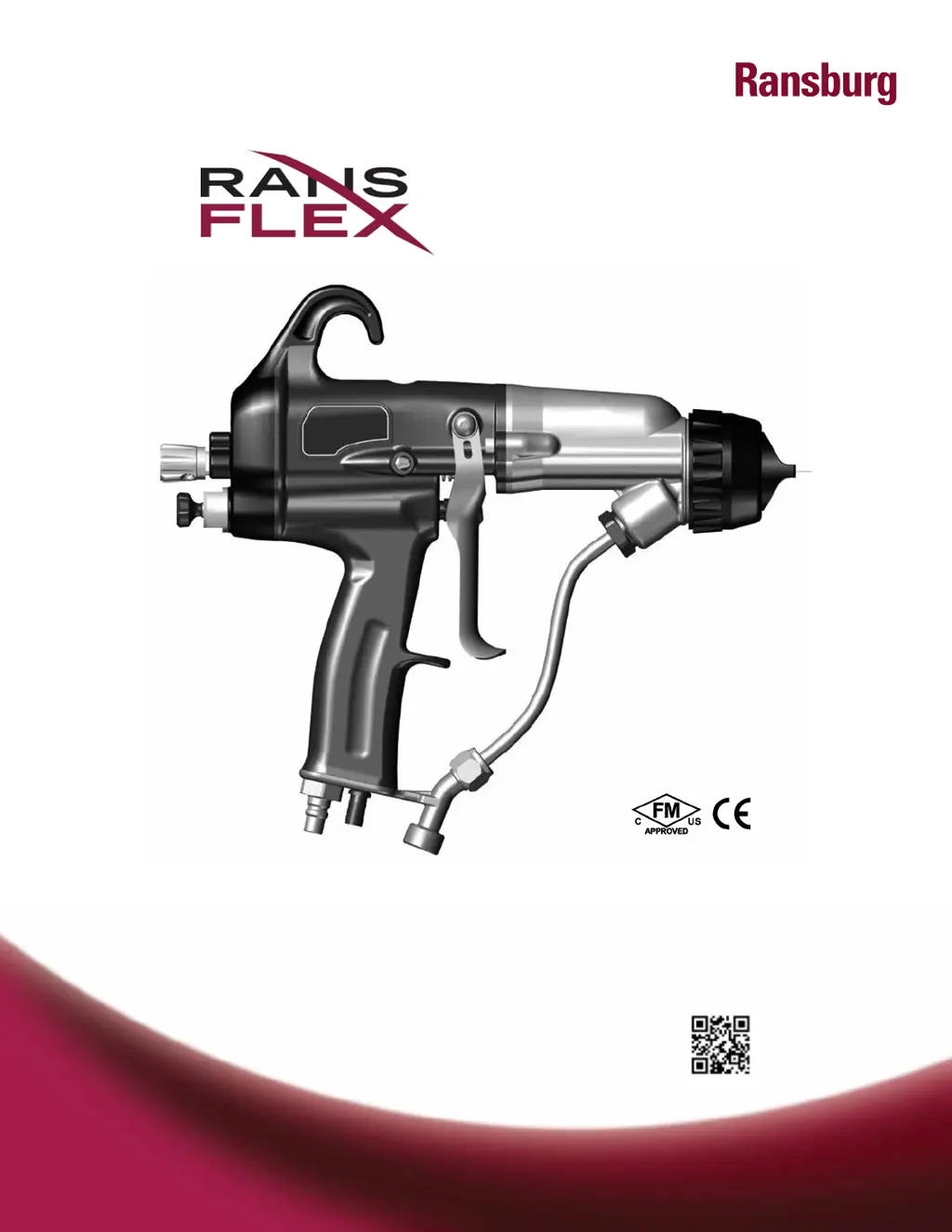

Ransburg RansFlex RX 80345

Questions and Answers

A
Allen WhitakerAug 3, 2025
Why is there no kV in my Ransburg Paint Sprayer?
- D
  Dennis SimmonsAug 3, 2025
  Several factors can cause a lack of kV in your Ransburg Paint Sprayer. It could be due to: * The On/Off lever being in the wrong position: Ensure it's in the On position. * Low pressure: Make sure there's 2.8 bar (40 psig) at the applicator handle when triggered. * No ground connection: Verify the air hose is properly grounded. * Cascade malfunction: Confirm the cascade is functioning correctly, swapping parts if needed. * Motor failure: Ensure the motor is working properly. * Paint conductivity: Confirm the paint resistance is greater than 0.1 Meg Ohm.
H
hannahburnsAug 9, 2025
What to do if there is no fluid flow in my Ransburg RansFlex RX 80345 Paint Sprayer?
- M
  Michael MuellerAug 9, 2025
  If you're experiencing no fluid flow in your Ransburg Paint Sprayer, consider these potential causes and solutions: * No pressure: Ensure there is adequate pressure at the fluid line at the applicator. * Plugged fluid tube: Replace or clean the fluid tube. * Plugged fluid nozzle: Replace or clean the fluid nozzle. * Improperly assembled electrode: Reassemble and tighten the electrode to the stop. * Material too viscous: Thin the material to a sprayable viscosity.
C
Caitlin DyerAug 15, 2025
How to fix low kV in my Ransburg RansFlex RX 80345 Paint Sprayer?
- R
  reynoldssuzanneAug 15, 2025
  Low kV in your Ransburg Paint Sprayer can often be resolved by addressing these issues: * Fluid remnants in the air passage: Clean the air passage with a non-polar solvent and ensure the fluid nozzle is properly tightened. * Using the wrong solvent for final cleaning: Always use a non-polar solvent for the final cleaning process. * Insufficient air pressure at the handle: Make sure there's 2.8 bar (40 psig) at the handle with the applicator triggered.
E
Eric ReyesAug 21, 2025
Why can't I adjust the fan pattern on my Ransburg RansFlex RX 80345?
- C
  Crystal ColemanAug 21, 2025
  If you cannot adjust the fan pattern on your Ransburg Paint Sprayer, check the following: * Restrictor missing: Ensure the restrictor is in place. * Fluid nozzle too tight: Tighten the nozzle until it seats on the barrel o-ring, then add an additional 1/8 turn.
J
Joyce CardenasAug 27, 2025
What causes poor atomization in a Ransburg Paint Sprayer and how to solve it?
- A
  Amanda ReyesAug 27, 2025
  Poor atomization in your Ransburg Paint Sprayer can be caused by foreign particles in the atomization air passages. To resolve this, ensure that the atomization air passages are clear of all foreign particles.

Summary

Safety

Safety Precautions

Key safety warnings and symbols used throughout the manual for user safety.

ATEX

European ATEX Directive 94;9;EC, Annex II, 1.0.6

Details specific instructions and requirements for ATEX certified equipment.

ATEX Product Marking Definitions

Explains ATEX product marking symbols and their meanings for safe use.

Introduction

General Description

Overview of the Ransflex applicator, its power source, and electrostatic field generation.

Ransflex New Features

Highlights key improvements and new technologies incorporated into the Ransflex applicator.

80345 Ransflex Solventborne Specifications

Details the environmental, physical, electrical, and mechanical specifications for the 80345 model.

80365 Ransflex Solventborne Specifications

Details the environmental, physical, electrical, and mechanical specifications for the 80365 model.

Installation

Air Hose Installation

Guidelines for selecting and installing the correct air hose for the applicator.

Fluid Hose Recommendation

Recommendation for using a specific fluid hose assembly for optimal fit and performance.

Filter Installation

Instructions for installing air and fluid filters to ensure proper system operation and air quality.

General Installation Requirements

Outlines essential requirements for safe and proper installation, including grounding and operator contact.

Interlocks Required

Details critical interlock requirements for solvent supply and applicator air for safety.

Operation

Applicator Operation

Step-by-step guide on how to operate the Ransflex applicator, including pressure and pattern adjustments.

Flushing and Color Change Procedure

Procedure for flushing the applicator for color changes or cleaning.

Fluid Nozzle and Air Cap Selection

Information on selecting the correct fluid nozzle and air cap for specific applications.

Nozzle Selection

Table detailing nozzle selection based on air cap compatibility and opening size.

Air Cap and Nozzle Performance

Performance data for different air caps and nozzle combinations.

Maintenance

Cleaning and Flushing

Procedure for cleaning the applicator using flushing, emphasizing safety precautions.

Routine Maintenance Schedule

Recommended maintenance tasks to ensure applicator longevity and efficient operation.

Daily Checks

Daily checks and maintenance actions to perform at the start of each shift.

Bi-Yearly Maintenance

Periodic maintenance checks, including air hose resistance testing.

Air Cap Removal

Step-by-step instructions for safely removing the air cap from the applicator.

Fluid Nozzle Removal

Procedure for safely removing the fluid nozzle, including pressure relief.

Barrel Removal

Instructions on how to remove the barrel from the applicator for maintenance.

Cascade Removal and Replacement

Detailed steps for removing and replacing the cascade assembly.

Packing Removal and Replacement

Guide on how to remove and replace packing components within the applicator.

Re-Install Needle Shaft Into Barrel

Steps for correctly re-installing the needle shaft into the applicator barrel.

Rear Cover;Motor Module Repair

Procedures for repairing the rear cover and motor module of the applicator.

Air Valve Removal and Replacement

Instructions for removing and replacing the air valve assembly.

Troubleshooting Guide

Troubleshooting Electrical Problems

Addresses electrical issues like low voltage, low pressure, and grounding.

Troubleshooting Inadequate Delivery

Addresses issues related to no fluid flow, low pressure, and plugged components.

Troubleshooting Spray Performance Issues

Solves problems like poor atomization, incorrect fan pattern, and spitting.

Parts Identification

RX Solvent Base Parts Identification

Identifies parts for the RX solvent base model, including atomization components.

RFX Solvent Base Parts Identification

Identifies parts for the RFX solvent base model, including atomization components.

Retaining Ring Assembly

Details the parts and assembly of the retaining ring.

RX (45 KV) Unit Parts

Lists and illustrates parts specific to the RX 45kV unit, including barrel and needle shaft.

RFX (65 KV) Unit Parts

Lists and illustrates parts specific to the RFX 65kV unit, including barrel and needle shaft.

Handle Components

Identifies common handle components used across all Ransflex applicator models.

Spare Parts Kits

Catalog of available spare parts kits, including nozzles and atomization kits.

Recommended Spare Parts

List of recommended spare parts with quantities per applicator for easy reordering.

Warranty Policies

Limited Warranty

Outlines the terms and conditions of the limited warranty for Ransburg equipment and parts.

Manual Change Summary
