Raptor E820 - Control Arm Set; 控制臂組組裝

(4)
(2)
(5)
(1)
(3)
(4)
(2)
(5)
-14-
Control Arm Set / 控制臂組組裝
QtyDescription 名稱 No.
1
1-1
1-2
1-3
1-4
1-5
CONTROL ARM SET-L
CONTROL ARM-L
LINK BALL
SOCKET SCREW, M2x8
LINKAGE BALL(A)
BEARING, d8xD12xW3.5
側轉控制臂座組-左
側轉控制臂座-左
連結球座
內六角螺絲, M2x8
內六角連接頭螺絲(A)
滾珠軸承, d8xD12xW3.5
1
1
2
2
4
4
No.
2
3
3-1
4
5
QtyDescription 名稱
SOCKET SCREW, M2.5x6
CONTROL ARM SET-R
CONTROL ARM-R
LINKAGE ROD SET(67.5mm)
CONTROL ARM CAP
內六角螺絲, M2.5x6
金屬副翼控制臂組-右
金屬 副翼 控制臂A-右
連接桿(67.5mm)
墊圈
2
1
1
2
2
Bag F
(1-4)
(1-3)
(1-1)
(1-2)
(1-5)
(1-5)
(1-4)
(1-4)
(1-5)
(1-3)
(1-2)
(3-1)
(1-5)
Secure all screws shown on this page with a drop of threadlocker.
本頁顯示之螺絲請使用適量防鬆膠鎖固。

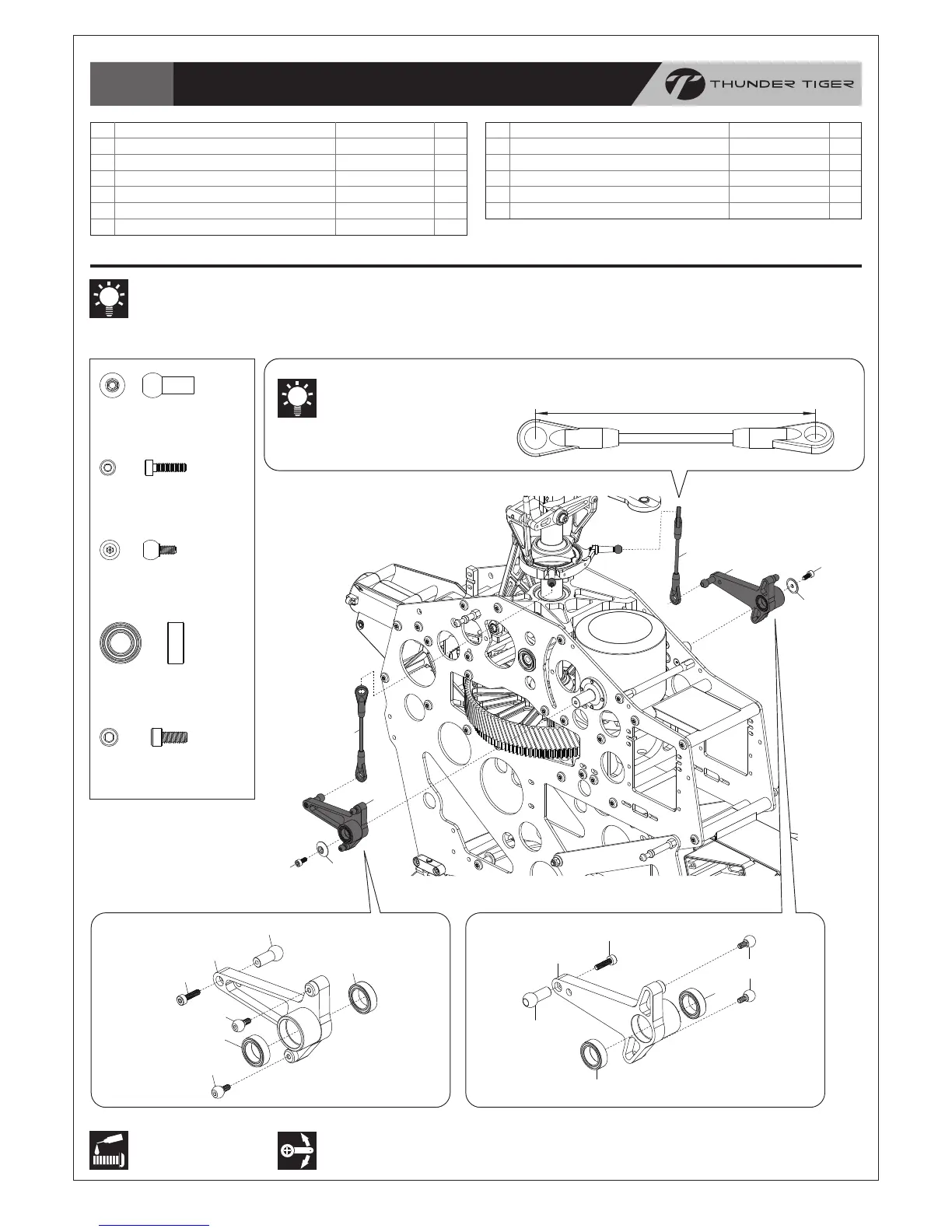

Attach the Control Arm onto the Main Frames as drawing, and note the difference of Left & Right Control Arms.
參考圖示將控制臂裝上側板上，請注意左、右邊方向性。
Ensure smooth, non-binding movement
when assembling 確認組件靈活度
Apply threadlocker
使用螺絲防鬆膠
The length of the Linkage
Rod Set is fixed (67.5mm)
without adjustment req’d.
此處連桿長度固定為67.5mm，
長度無需進行調整。
Scale=1:1 (unit:mm)
67.5 (Fixed Length)
x2
LINK BALL
連結球座
SOCKET SCREW, M2x8
內六角螺絲, M2x8
BEARING, d8xD12xW3.5
滾珠軸承, d8xD12xW3.5
LINKAGE BALL(A)
內六角連接頭螺絲(A)
SOCKET SCREW, M2.5x6
內六角螺絲, M2.5x6
