Raptor E820 - Bag K Servo Installation; 伺服機裝配

-18-

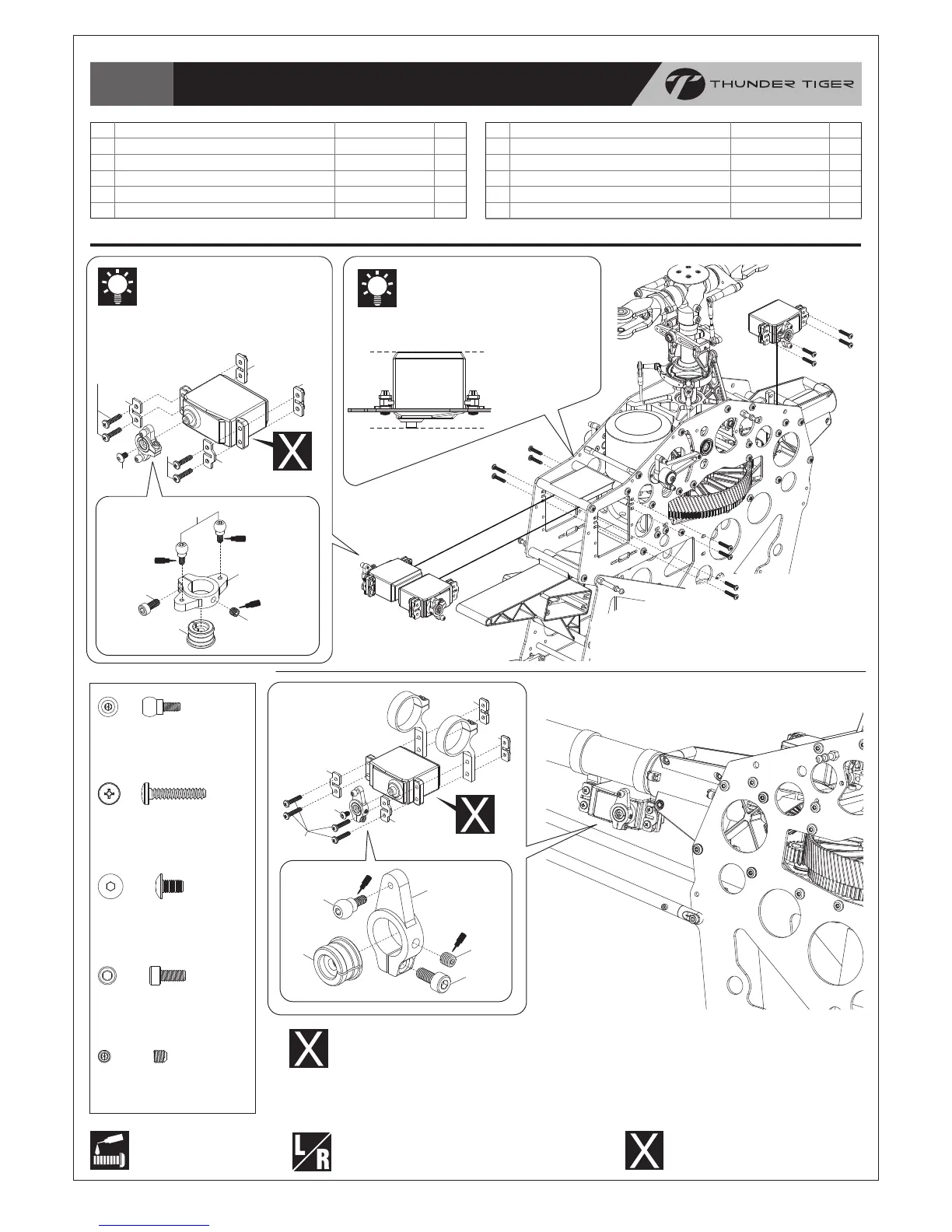

Servo Installation / 伺服機裝配
Attach the Servos onto the Servo Trays
of Main Frame Set as drawing.
參考圖示將伺服機裝入主側板組上伺服機座。
No.
1
2
3
4
5
QtyDescription 名稱
伺服機擺臂軸套
伺服機擺臂
尾舵伺服機擺臂
連接球座
伺服機墊片
SERVO HORN COLLAR
SERVO HORN
RUDDER SERVO HORN
LINK BALL
SERVO MOUNTING
4
3
1
7
8
No.
6
7
8
9
10
QtyDescription 名稱
伺服機螺帽
扁圓自攻螺絲(粗), M2.6x14
半圓頭內六角螺絲, M3x5
內六角螺絲, M2.5x6
無頭內六角螺絲, M3x3
SERVO NUT
BUTTON PHILLIPS TAPPING SCREW, M2.6x14
BUTTON HEAD SOCKET SCREW, M3x5
SOCKET SCREW, M2.5x6
SET SCREW, M3x3
8
16
4
4
4
LINK BALL
連接球座
BUTTON PHILLIPS TAPPING SCREW, M2.6x14
扁圓自攻螺絲(粗), M2.6x14
SOCKET SCREW, M2.5x6
內六角螺絲, M2.5x6
SET SCREW, M3x3
無頭內六角螺絲, M3x3
BUTTON HEAD SOCKET SCREW, M3x5
半圓頭內六角螺絲, M3x5
(8)
(5)
(7)
(5)
(7)
(6)
(6)
(4)
(1)
(9)
(2)
(10)
Do not tighten the screw #9
& #10 at this step for
preforming servo of
calibations later.
螺絲#9&#10暫勿鎖緊以便後續
中立點調整。
Apply threadlocker
使用螺絲防鬆膠
Must be purchased separately
改裝品需另購
The adaptors come with the kit are applicable to ACR RC / Futaba servos as standard parts.
The option adaptors for JR or Hitec are also available separately:
套件內附標準之伺服機擺臂軸套適用於ACE RC及Futaba品牌伺服機。
JR或Hitec伺服機使用之軸套可另外購買：
Item No. PV1623-J Servo Horn Adaptor for JR 伺服機擺臂軸套, JR
Item No. PV1623-H Servo Horn Adaptor for Hitec 伺服機擺臂軸套, Hitec
Screws should be separately
fastened diagonally to ensure
the servos mounted evenly.
鎖固時須依對角依序平均鎖上，
以使伺服機平整安裝於側板上。
Main Frame
側板
(4)
(3)
(10)
(9)
(1)
(5)
(5)
(8)
(6)
(6)
(7)
Bag K
Assemble left and right side the same way
左右側組件相同
