Raritan PM Series Quick Setup Guide

Power Meter Quick Setup Guid
e
9
QSG
-PMM-1A-v3.3.10-E  255-64-0004-00

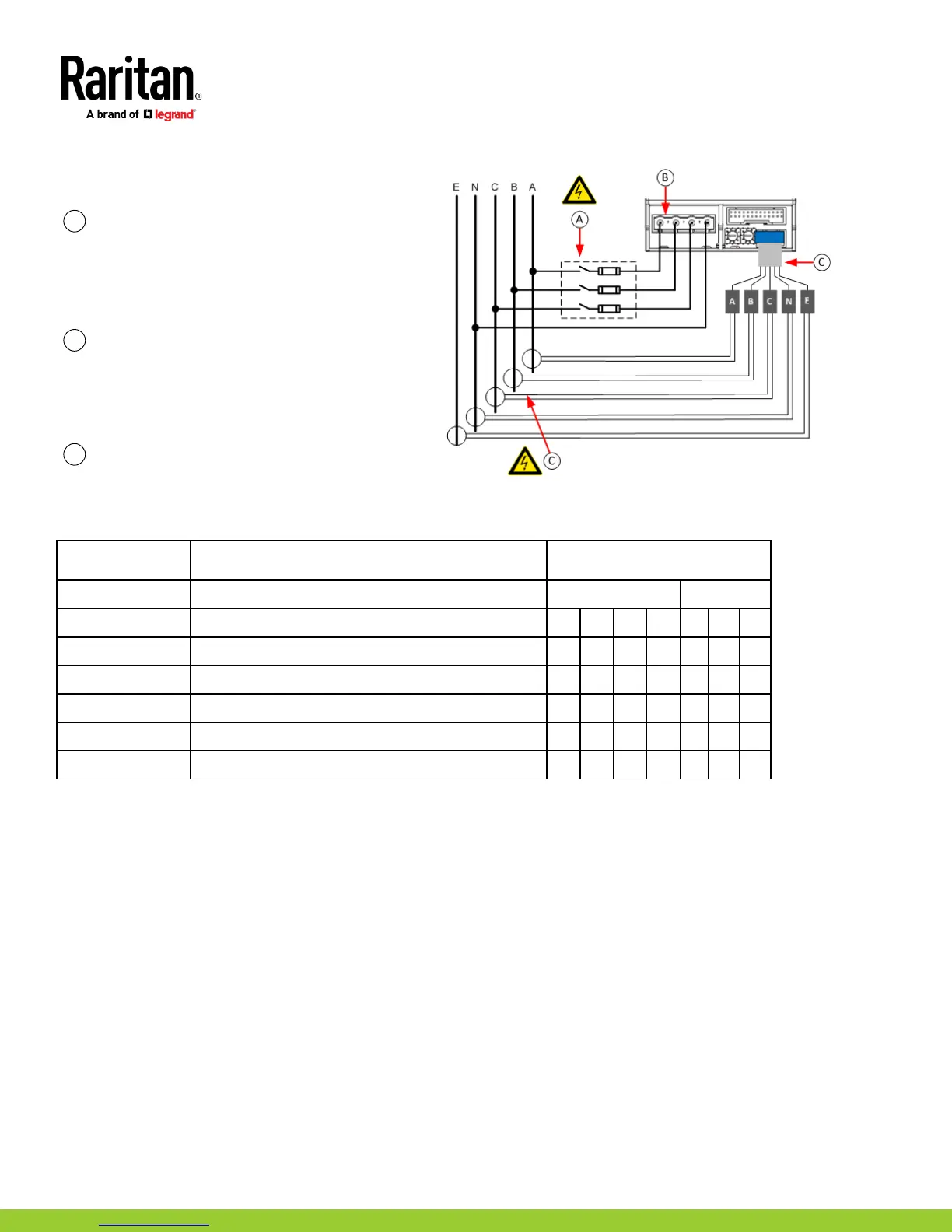

Voltage and Current Measurement Wiring
A
Protect phase lines with fused disconnects rated
for available short circuit current at connection
point.
B
All wiring: 14-22 AWG, 75°C, solid or stranded.
Do not solder tin wire ends.
C
All CT: 333mV output at rated current. Do not
use current output CT.CTs can be connected to
live circuits. Connect CT in either direction.
Circuit Type
Circuit Description
Wiring Connections
Voltage
CT
A B C N A B C
Single-Phase L-N (120V,230V,240V) X X X
L-L (208V, 400V) X X X
Split-Phase North American 120/240V Panel, 2L+N circuit X X X X X
Three-Phase 3L, 3-phase without neutral X X X X X X
3L+N, 3-phase with neutral X X X X X X X
