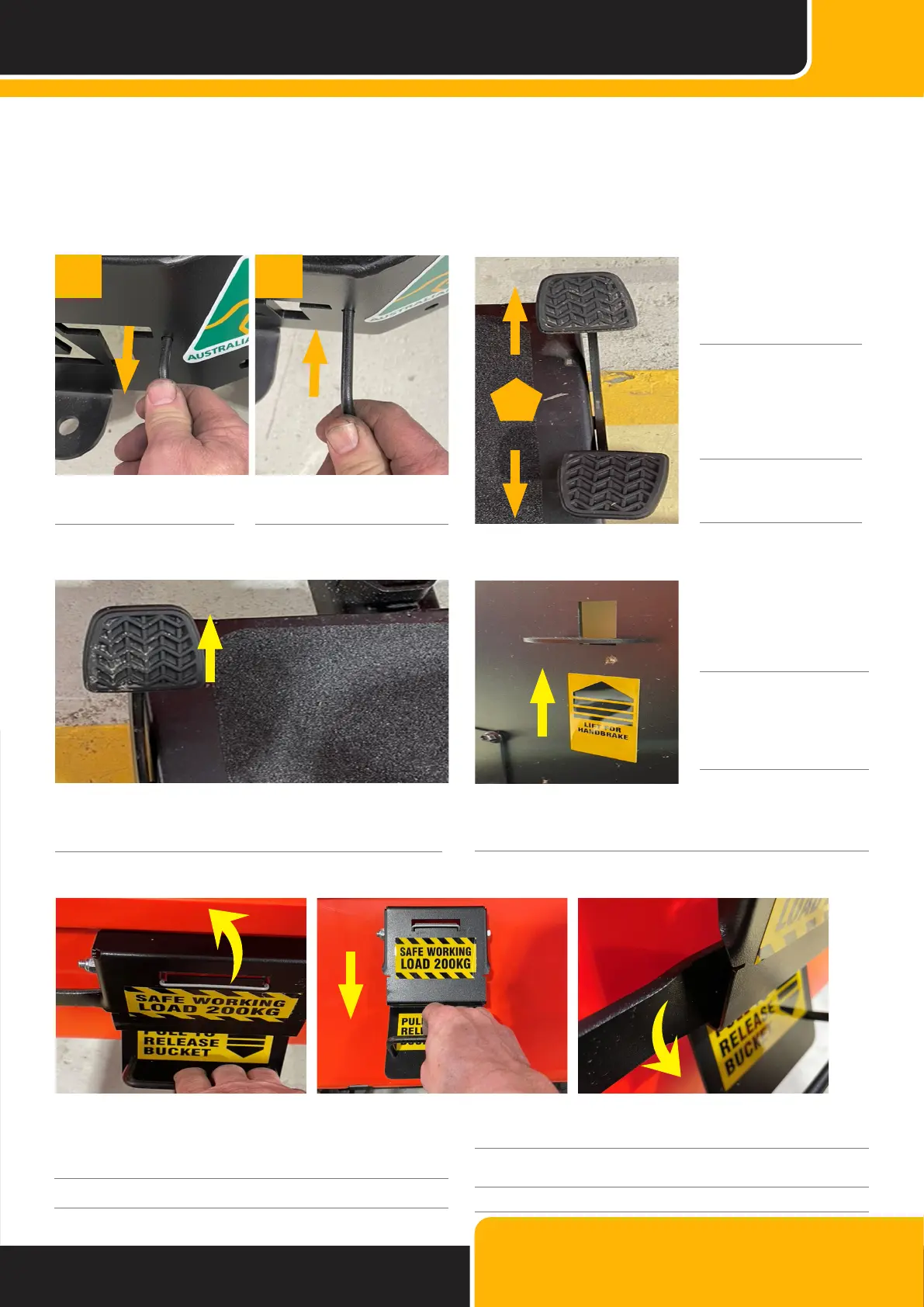

RAT BARROW - Understanding the Controls

Push rod in to move with
Motor (Engage)
Pull rod out to move manually,
this disengages the differential
FORWARD / BACKWARD MOVEMENT
BRAKE
TRANSAXLE ENGAGE/ DISENGAGE
PEDAL BRAKE
UNDERSTANDING THE CONTROLS
A - FORWARD Press the
Front right pedal forward
to move forward. The
further forward, the faster
the RAT Barrow will move
B - BACKWARD Press
the front right pedal
backwards to move
backwards. The further
backward the faster the
RAT Barrow will move
C - NEUTRAL Remove
pressure from right pedal
and it returns to neutral
BRAKE:
Left Side Single Pedal Push down to stop
PARK BRAKE:
STEP A Press Brake Pedal
(left hand side) down,
holding the RAT Barrow in
a stationary position
STEP B While pressing the
Brake pedal down, hold the
brake lever up. Release the
pedal and the lever should
remain in the up position
TUB TIPPING:
STEP A Check load weight is centred in tub.
Note: Too much weight forward of centre line of tub will cause
tub to tip rapidly
STEP B Pull Release latch backwards lowering your load
TUB TIPPING FUNCTION
F
B
N
RELEASE BRAKE:
To release park brake, depress brake pedal and the brake lever
will release, allowing the unit to drive
A B
TUB LIFTING:
STEP A From seated position pull tub back with latch handle.
STEP B Open latch up, so latch goes over your side of latch
locking bar
STEP C Push latch forward to lock latch under the locking bar
05
UNDERSTANDING THE CONTROLS
