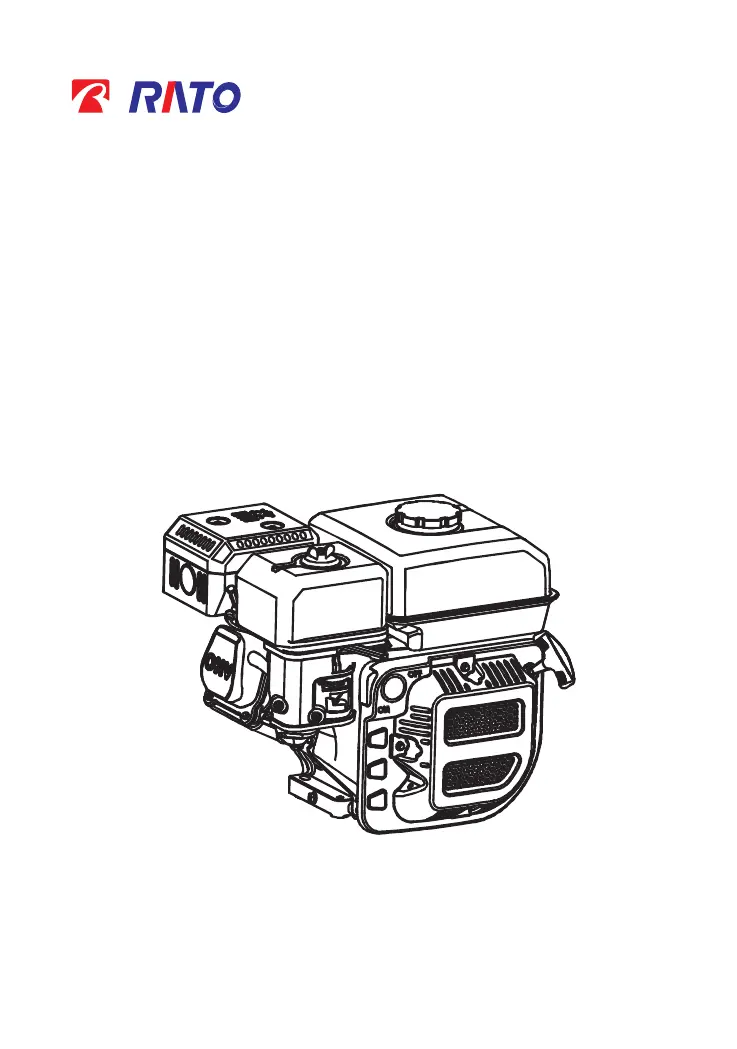

R100 R160 R180 R200 R210 R225
R270 R300 R390 R420 R440
Gasoline Engine
Owner’s Manual
Chongqing Rato Technology Co.,Ltd.

Table of Contents

Other manuals for Rato R225

Preview: Service Manual
Service Manual78 pages

Questions and Answers

  • L
    lmartinezNov 4, 2025
    How to fix a Rato Engine that is difficult to start?
    • M
      Mark HigginsNov 4, 2025
      If your Rato Engine is difficult to start using the recoil starter, several factors could be at play. Check the fuel system: ensure there's enough fuel by filling it and opening the fuel cock. Inspect the air vent in the fuel filler cap for clogs and dredge it if necessary. Also, a clogged fuel cock can cause issues, so clean and dredge it. An improperly adjusted or clogged main oil flow hole can also be the culprit; readjust or clean it. Other potential causes include a needle valve that isn't closing properly or a clogged start hole, a damaged or sticking float, or fuel that's too filthy, deteriorated, or contains water. Too much fuel in the engine can also cause starting difficulties, so drain the excess and dry the spark plug electrodes. Ensure you're using the correct fuel brand. For ...
  • D
    Darren SparksNov 7, 2025
    Why is the Rato Engine power output insufficient?
    • S
      Stephanie Shah DDSNov 7, 2025
      If your Rato gasoline engine's power output is insufficient, several factors could be responsible. Start by checking the fuel line for air or clogs; exhaust any air or dredge the fuel line. Ensure the main oil flow hole is properly adjusted. A clogged needle valve hole or main oil flow hole in the carburetor can also cause this issue, so clean them. Additionally, a clogged fuel cock can restrict fuel flow; clean or replace any damaged parts. Excessive carbon deposits in the combustion chamber or in the muffler and exhaust pipe can hinder performance, so clear them away. A clogged air cleaner can also reduce power, so clean the filter element. Check for intake pipe leaks and repair or replace as needed. Worn piston, cylinder, or piston rings can lead to power loss, so replace them. Air leak...
  • C
    Charles SinghNov 12, 2025
    What to do if Rato Engine is running unsmoothly?
    • M
      Michael EdwardsNov 12, 2025
      If your Rato gasoline engine is running unsmoothly, several components may be worn or malfunctioning. Excessively worn pistons, cylinders, or piston rings can cause rough running, so replace them. Similarly, worn piston pins and piston pin holes, or a worn tie rod small head, can contribute to the problem; replace the affected parts. A worn roller bearing for the crankshaft main shaft should also be replaced. Overheating, excessive carbon deposits in the combustion chamber, improper gasoline, water in the float chamber, or improper spark plug electrode clearance can also lead to unsmooth operation. Ensure you are using qualified gasoline, clean the float chamber if there is water, and adjust the spark plug electrodes. Issues with the induced coil may also be to blame; check and replace any...
  • J
    Jeffery DiazNov 16, 2025
    Why is my Rato Gasoline Engine overheat?
    • L
      laura53Nov 16, 2025
      If your Rato gasoline engine overheats, it could be due to several reasons. First, ensure there is sufficient oil by refilling the engine oil to the correct level. A blocked exhaust pipe can also cause overheating, so clean it. Check for shroud leaks and repair any damaged parts. Cooling fins blocked by foreign matter will also cause overheating, so clear the cooling fins. Ensure the cooling fan is properly installed and functioning correctly. Other potential causes include connection rod deformation leading to piston and cylinder bushing side wear, worn cylinders, pistons, or piston rings causing hunting between the cylinder and crankcase, or improper adjustment of the engine governor leading to high speed. A burnt-out crankshaft main bearing can also result in overheating, so replace the...
  • W
    washingtonjeremyNov 21, 2025
    What to do if Rato Engine stop suddenly when running?
    • L
      Leonard ObrienNov 21, 2025
      If your Rato Engine stops suddenly while running, several issues could be the cause. The most straightforward is that the fuel is finished, so refill it. A clogged carburetor can also cause this, so check the fuel line and dredge it. Other potential causes include a leaking float, a stuck needle valve, or a punctured spark plug. In such cases, repair the float, dismantle the float chamber to address the needle valve, or replace the spark plug. A side electrode of the spark plug that has dropped out or a high-tension wire that has become disconnected can also cause sudden stops, so replace the spark plug or weld the wire back on. Issues with the ignition coil, such as being punctured or short-circuited, require replacing the ignition coil. A parking wire located on the engine body can cause...
  • D
    Daniel HannaNov 25, 2025
    Why is there abnormal noise when Rato Engine is running?
    • E
      Erica StantonNov 25, 2025
      If there is an abnormal noise when your Rato Engine is running, several factors could be responsible. Worn pistons, piston rings, or cylinders can cause unusual sounds, so replace the worn parts. Similarly, worn connection rods, piston pins, or piston pin holes can contribute to the noise, so replace the worn parts. A worn crankshaft main neck may also be the culprit, requiring bearing replacement. A broken piston ring should also be replaced. Excessive carbon deposits in the combustion chamber can create noise, so clear away the carbon deposit. Too small electrode clearance of the spark plug can also cause abnormal noise, so adjust the electrode clearance properly. Check relative parts such as carburetor if the engine fuel is too much. An improper fuel brand can lead to unusual sounds, so...
  • J
    Jeffrey RamirezDec 1, 2025
    Why is my Rato R225 Engine hard starting?
    • J
      Jennifer KelleyDec 1, 2025
      A hard starting Rato Engine can be due to several reasons related to the fuel or ignition systems. It could be something as simple as needing more fuel or opening the fuel cock. The air vent in the fuel tank cover might be clogged, or there could be an issue with the main jet, needle valve, or float. Old or contaminated fuel, including water in the fuel, can also cause this, as well as too much fuel in the engine. Other potential causes include using the wrong fuel grade, a faulty spark plug (either dirty, burned, damaged, or with an improper gap), a damaged high-tension cord or ignition coil, a magneto that has lost magnetism, or an abnormal gap between the ignition coil and flywheel. Try adding fuel, unclogging the air vent, readjusting or cleaning the main jet, dismantling and repairing...

Summary

Safety Messages and Symbols

Safety Precautions for Operation

Battery Connection Guide

Pre-Operation Inspection Procedures

Engine Oil Check and Maintenance

Procedures for checking and maintaining engine oil levels and type.

Starting the Gasoline Engine

Electric Start Operation

Running the Gasoline Engine

Stopping the Gasoline Engine

Routine Engine Maintenance

Maintenance Schedule and Tasks

Detailed table outlining maintenance tasks and frequencies.

Engine Oil Replacement Procedure

Step-by-step method for draining and refilling engine oil.

Air Cleaner Element Service

Spark Plug Inspection and Adjustment

Guide to inspecting, cleaning, and adjusting spark plugs.

Engine Transport and Storage

Engine Troubleshooting Guide

Troubleshooting Difficult Start (Recoil)

Causes and remedies for engines that are difficult to start with a recoil starter.

Troubleshooting Difficult Start (Electric)

Causes and remedies for engines that are difficult to start using an electric starter.

Troubleshooting Low Engine Power

Troubleshooting low power output and performance issues.

Troubleshooting Rough Engine Running

Troubleshooting Sudden Engine Stop

Troubleshooting Engine Overheating

Causes and solutions for engine overheating issues.

Troubleshooting Abnormal Engine Noise

Engine Specifications

Rato R225 Specifications
