INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 21 of 60
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
12.4 Use of the lifting device (only for
G8945V.26S - G8945ITV.26S -
G8945D.26S - G8945ITD.26S models)
FI models)
CARRY OUT A DAILY CHECK OF
MAINTAINED-TYPE CONTROLS
CORRECT FUNCTIONING, BEFORE
STARTING MACHINE OPERATION.

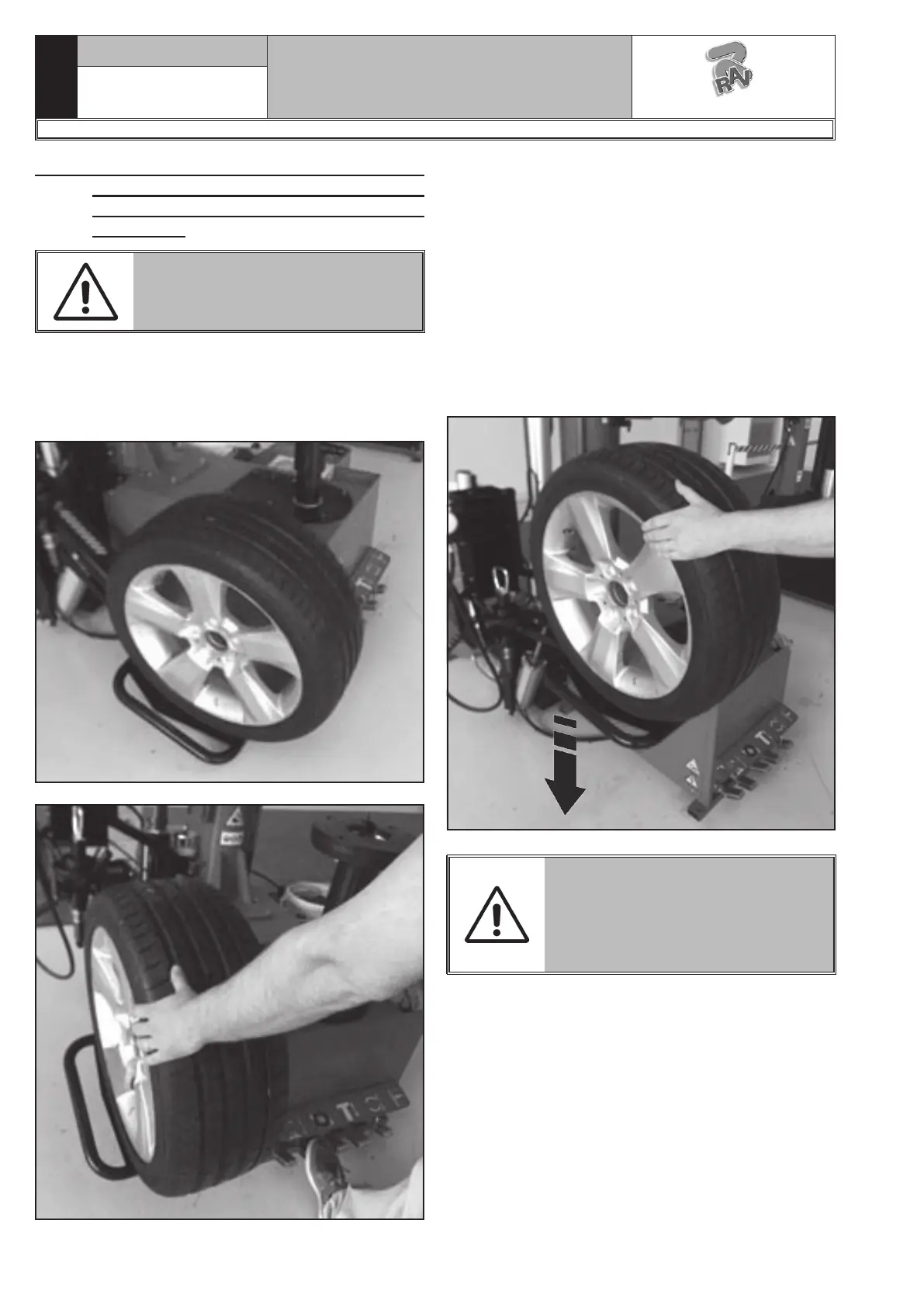

1. After placing the wheel on the lifting plate (see
Fig. 21), press the lifting device drive pedal
(Fig. 19 ref. 1) downwards and bring the wheel
to a level where it can be shifted to the mandrel by
hand (see Fig. 22).
Fig. 21
Fig. 22
2. Place the wheel on the mandrel.
3. Lift the pedal (Fig. 19 ref. 1) upwards in order to
lower the lifting plate.
4. Perform all the tyre fitting and removal operations
(described here as follows) and unlock the wheel
from the mandrel.
5. Lift the lifting plate by pressing again the pedal
downwards basso (Fig. 19 ref. 1).
6. Place the wheel on the lifting plate (see Fig. 22).
7. Move again the pedal upwards to make the plate
lower and bring back the wheel to the ground keep-
ing a hand on it (see Fig. 23).
Fig. 23
KEEP A HAND ON THE WHEEL
DURING ALL LIFTING DEVICE'S
RISING AND DESCENT PHASES,
TO PREVENT THE WHEEL FROM
FALLING FROM THE LIFTER BE-
CAUSE OF IMBALANCES.
