INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 16 of 60

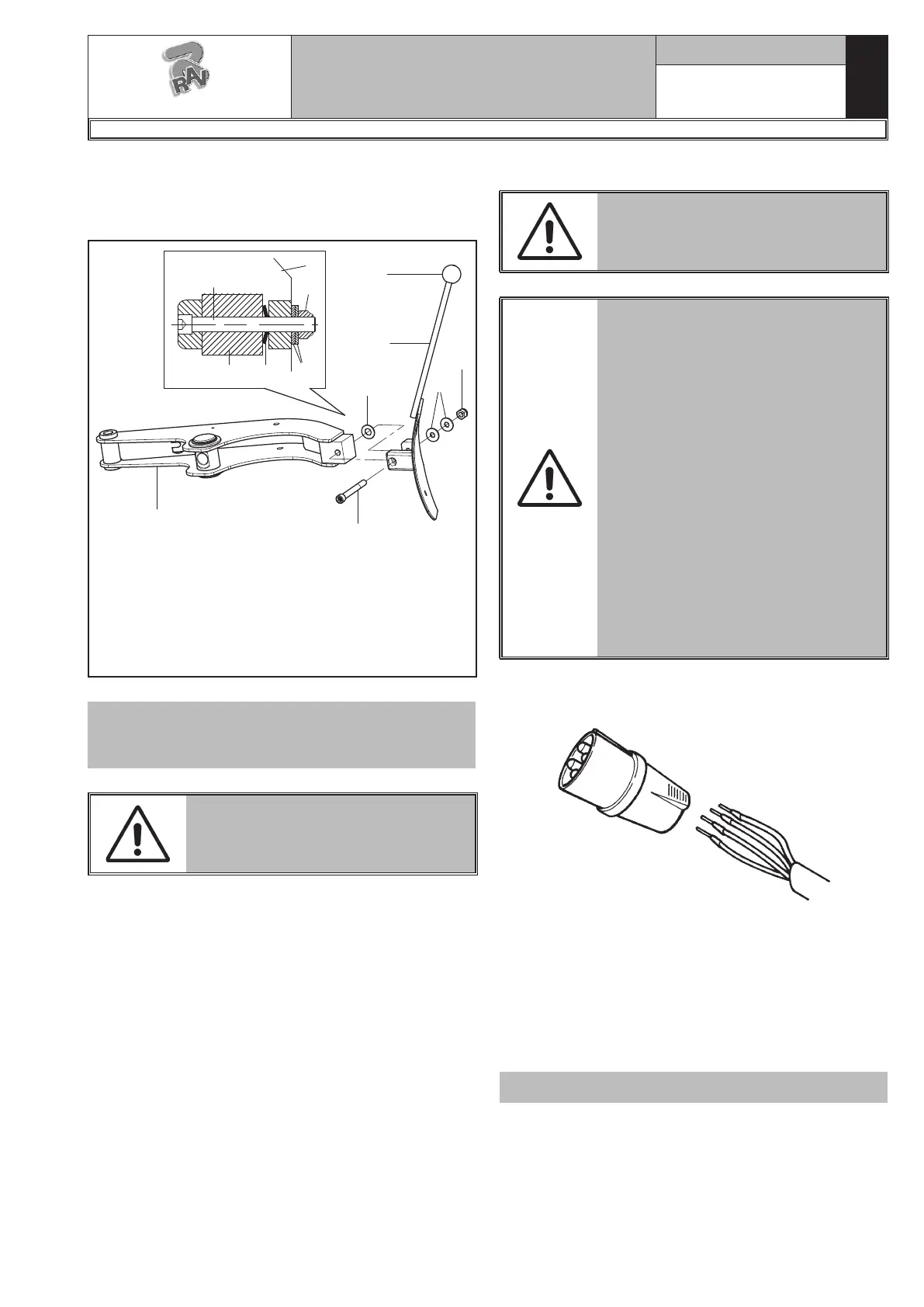

14. Fix the vane (Fig. 15 ref. 2) onto the bead-breaking
arm using the accessories already in place on the
above-mentioned tool. The Belleville washer must
be positioned inside the tool tongue (see Fig. 15).
7
1
2
3
7
5
4
6
2
4
5
1
3
Fig. 15
KEY
1 – Bead breaker arm (# 730011591)
2 – Vane (# B4064201)
3 – Screw for bead breaker arm (# 140925901)
4 – M12 Self-locking nut (# 228006)
5 – Flat washer (# 237069)
6 – Ball knob D. 40 (# 903090)
7 – Belleville washer (# 253017)
ONCE THE ASSEMBLY OPERATIONS HAVE
BEEN ENDED, CHECK ALL MACHINE FUNC-
TIONS.
CARRY OUT A DAILY CHECK OF
MAINTAINED-TYPE CONTROLS
CORRECT FUNCTIONING, BEFORE
STARTING MACHINE OPERATION.
10.0 ELECTRICAL CONNECTION
EVEN THE TINIEST PROCEDURE
OF AN ELECTRICAL NATURE
MUST BE CARRIED OUT BY PRO-
FESSIONALLY QUALIFIED STAFF.
BEFORE CONNECTING THE MA-
CHINE MAKE SURE THAT:
• THE MAIN POWER RATING COR-
RESPONDS TO THE MACHINE
RATING AS SHOWN ON THE
MACHINE PLATE;
• ALL MAIN POWER COMPO-
NENTS ARE IN GOOD CONDI-
TION;
• THE ELECTRICAL SYSTEM
IS PROPERLY GROUNDED
(GROUND WIRE MUST BE THE
SAME CROSS-SECTION AREA
AS THE LARGEST POWER SUP-
PLY CABLES OR GREATER);
• MAKE SURE THAT THE ELEC-
TRICAL SYSTEM FEATURES A
CUTOUT WITH DIFFERENTIAL
PROTECTION SET AT 30 mA.
As envisaged by the regulations in force, the machine is
not equipped with a master circuit breaker, but simply
has a plug-socket connection to the electrical mains.
The machine is supplied with 3 m of free cable. A plug
corresponding to the following requirements must be
connected to the cable:
• Conformity to Norm IEC 309
• 230/400 Volt – 16A
• 3P + Ground
• IP 44
Only for versions with inverter
• Conformity to Norm IEC 309
• 220/240 Volt – 32A
• 2P + Ground
• IP 44
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
