INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 28 of 60

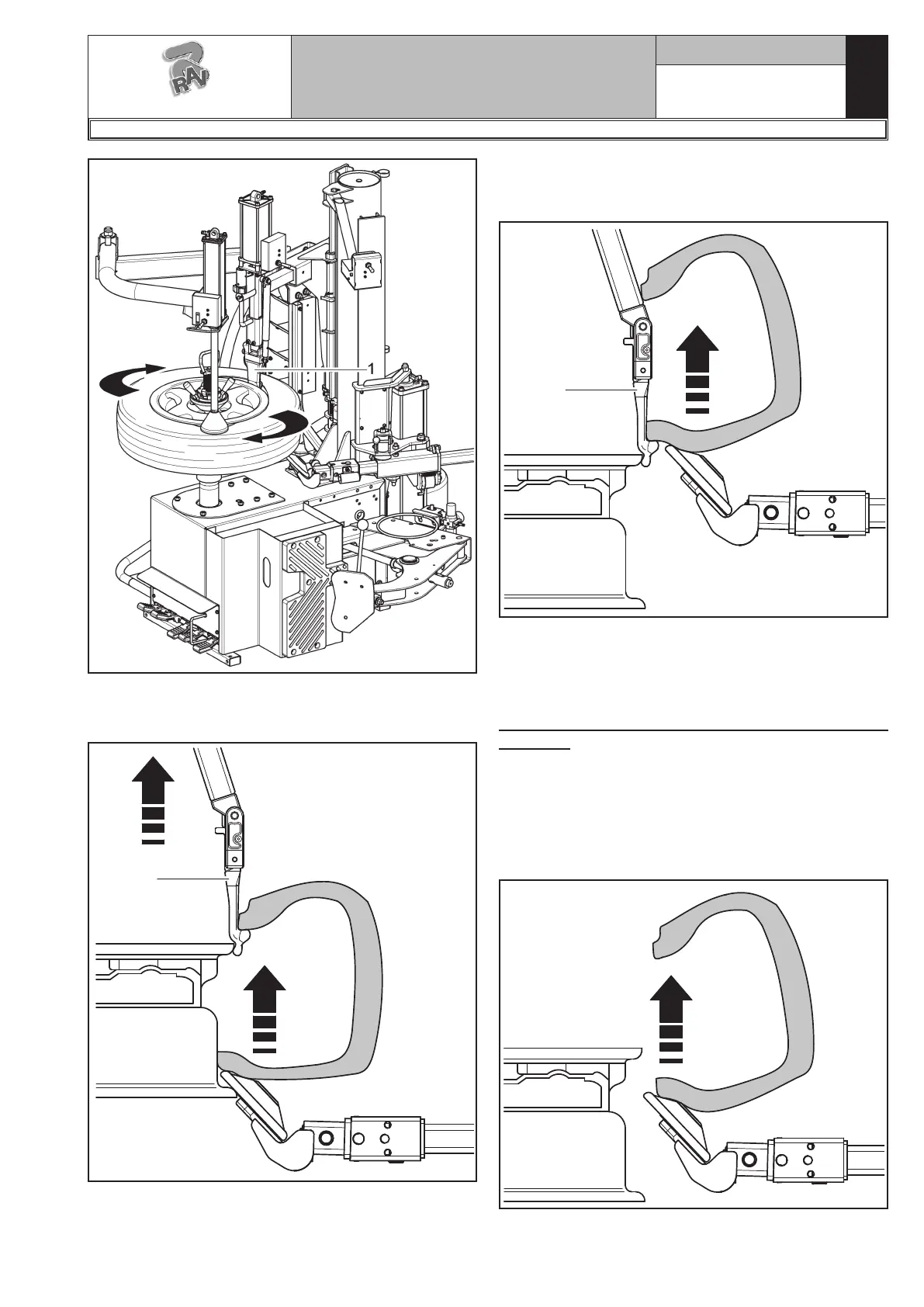

Fig. 44
6. Lift the tool (see Fig. 45 ref. 1) keeping it coupled
to the upper bead of the tyre with the bead breaking
roll in lower position.
1
Fig. 45
7. Position the tool (see Fig. 46 ref. 1) just next to the
rim edge. Using the lower bead breaking roller, load
the lower bead on the tool in demounting position.
1
Fig. 46
8. Rotate the mandrel clockwise until the tyre is com-
pletely disassembled.
9. Lift the presser roll and close again the Plus Device
into rest position.
Dismounting the lower bead with the bead break-
ing roller
For disassembly of the lower bead only the bead break-
er roller can be used as an alternative. Lift the tool and
go away from the working area, through pressing the
pedal (Fig. 19 ref. 2).
1. Lift the roll and the tyre just next to the rim edge
(see Fig. 47).
Fig. 47
