Ravaglioli G8945.26 - Page 4

INSTRUCTION, USE AND
MAINTENANCE MANUAL
GB
Page 4 of 60

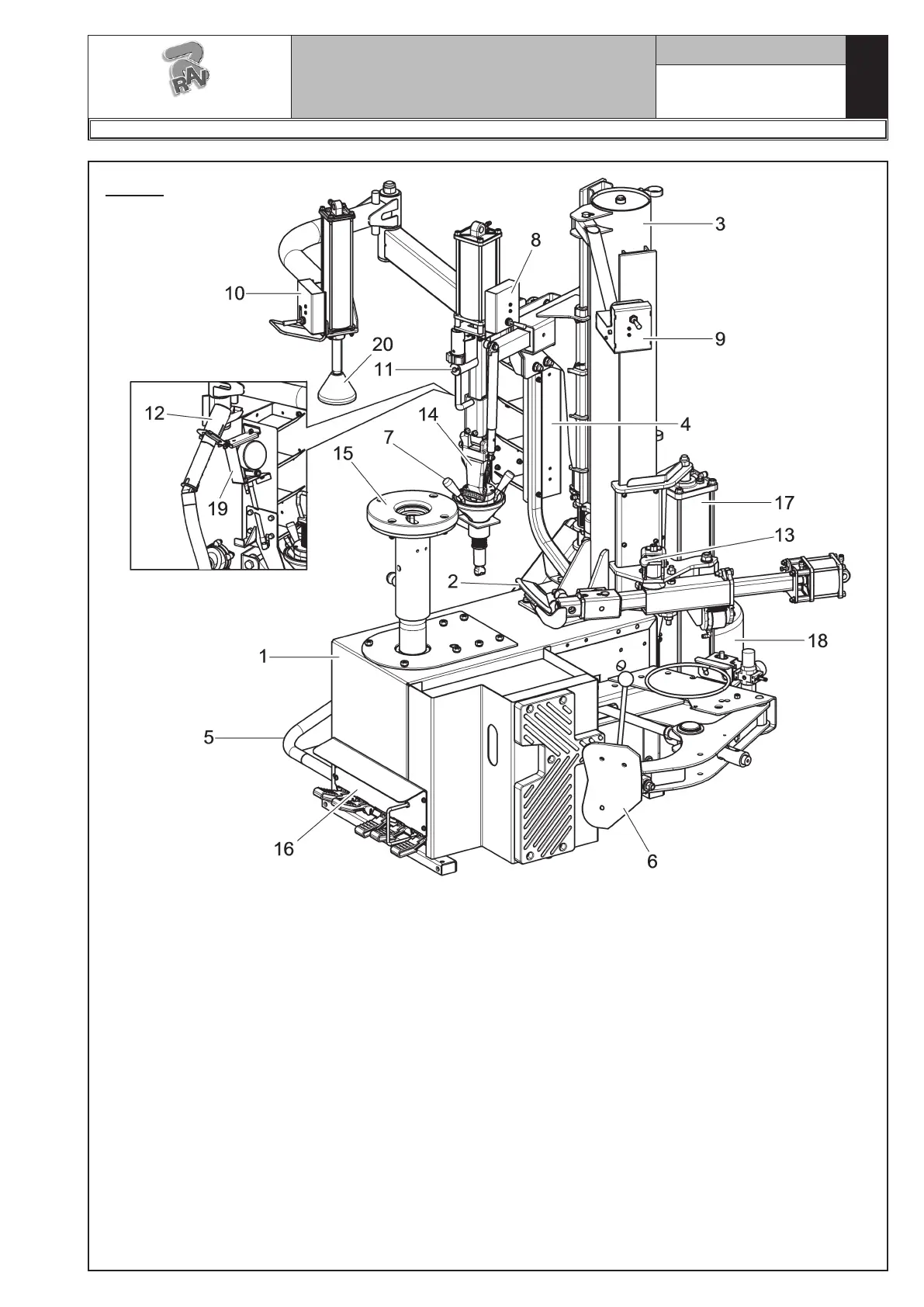

FIG. 1
RAVAGLIOLI S.p.A.
7300-M018-2_R
G8945.26 - G8945IT.26 - G8945V.26 - G8945ITV.26 - G8945V.26S - G8945ITV.26S - G8945D.26 - G8945ITD.26 - G8945D.26S - G8945ITD.26S
KEY
1 – Machine base
2 – Bead breaker roll
3 – Column unit
4 – Tool box
5 – Lifting device (only for G8945V.26S - G8945ITV.26S - G8945D.26S - G8945ITD.26S models)
6 – Lateral bead breaker
7 – Locking device
8 – Tool control unit
9 – Bead breaking roll control unit
10 – Plus device control unit (only for G8945V.26S - G8945ITV.26S - G8945D.26S - G8945ITD.26S
models)
11 – Tool arm unlock push button
12 – Tubeless inflation unit (only for G8945IT.26 - G8945ITV.26 - G8945ITV.26S - G8945ITD.26 -
G8945ITD.26S models)
13 – Lever for bead breaker roll lateral opening release
14 – Tyre mounting/demounting tool
15 – Central locking mandrel
16 – Control pedal
17 – Bead breaker roll movement cylinder
18 – Tank unit (only for G8945IT.26 - G8945ITV.26 - G8945ITV.26S - G8945ITD.26 - G8945ITD.26S
models)
19 – Inflation unit with pressure gauge (only for G8945V.26S - G8945D.26S models)
20 – Plus device (only for G8945V.26S - G8945ITV.26S - G8945D.26S - G8945ITD.26S models)
