Ravaglioli RAV635.3 - Page 50

50
0586-M050-0
RAV635.3 - 635.4 (I-SI-ISI)
RAV640.3 - 640.3.46 - 640.4 - 640.4.46 - 640.5 - 640.6 (I-SI-ISI)
RAV650.3 - 650.4 - 650.5 - 650.6 (I-SI-ISI)

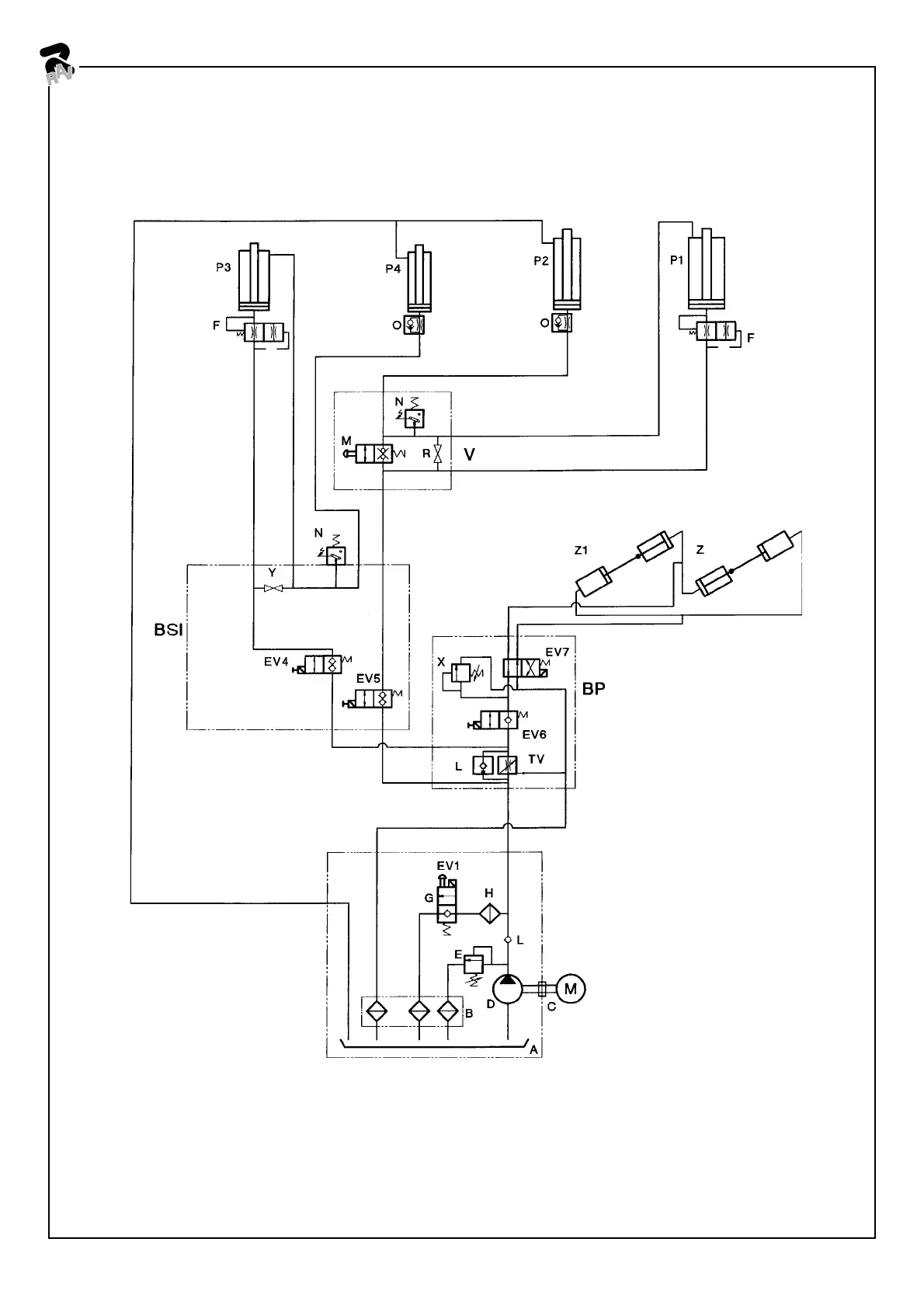

SCHEMA IMPIANTO OLEODINAMICO - HYDRAULIC SYSTEM DIAGRAM
RAV635.3 SI-ISI_RAV635.4 SI-ISI
RAV640.3 SI-ISI_RAV640.4 SI-ISI_RAV640.3.46 SI-ISI_RAV640.4.46 SI-ISI
RAV650.3 SI-ISI_RAV650.4 SI-ISI (Versioni mono centralina/Single control unit versions)
