CALIBRATE ISO RAVEN STEERING CONTROLLER | CR7 AUTOSTEERING | RAVEN EUROPE GENERIC

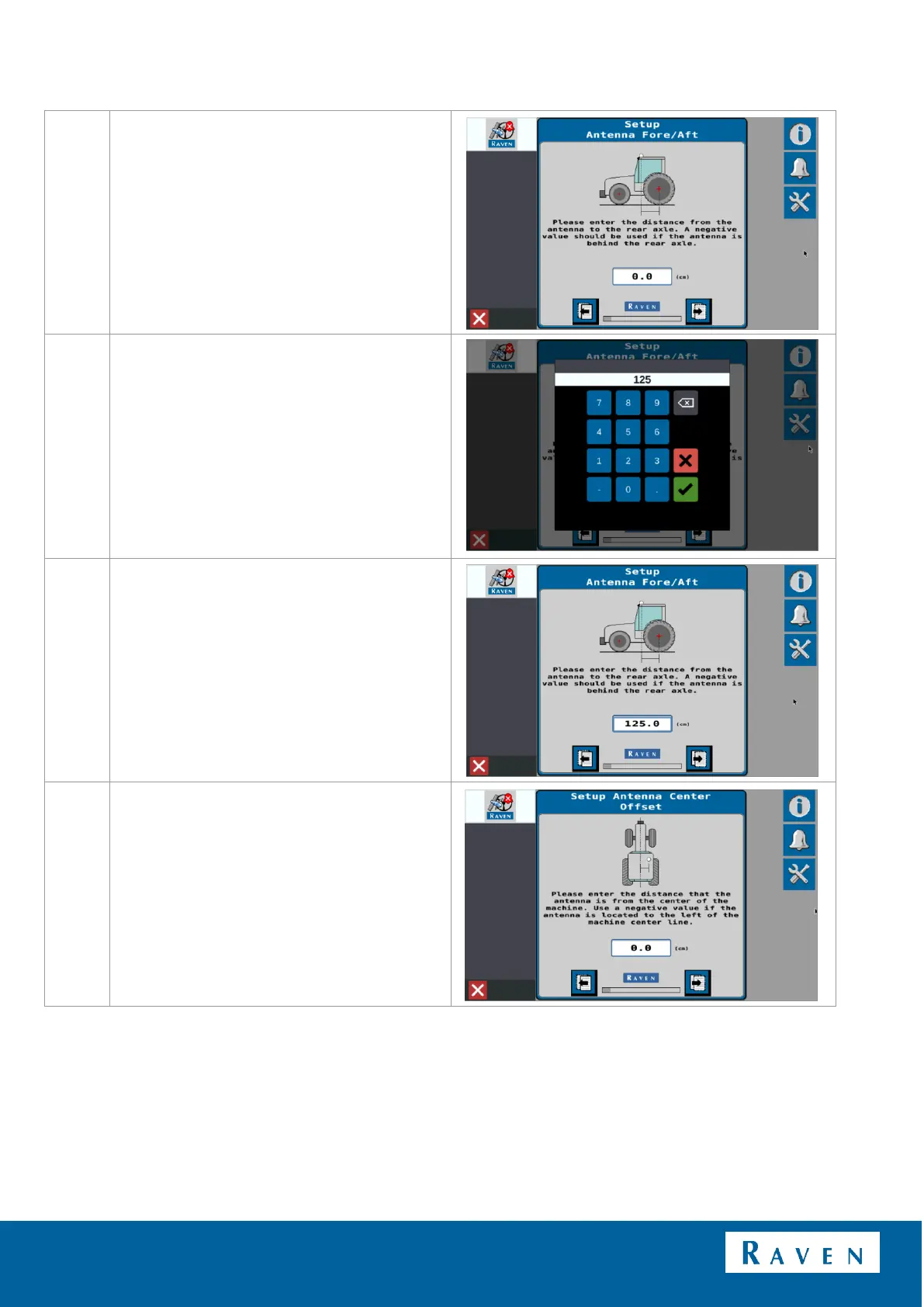

Measure the distance from the rear axle to
the antenna.
Remember this value! Later in the
configuration it needs to be entered
again.
Press on the box to enter a value and enter
the value in centimeters.
The value is in the box now.
Remember this value! Later in the
configuration it needs to be entered
again.
Press next step.
If needed, setup the Antenna Center Offset.
This is the offset from the antenna to the
Center of the machine.
Remember this value! Later in the
configuration it needs to be entered
again.
Press next step.
