2. MOUNTING THE FLOW METER
1) Mount Flow Meter in the area of the boom valves per Figure 4. All flow through Flow Meter must go
to booms only, i.e., no return line to tank or pump after Flow Meter.
2) Mount Flow Meter horizontal to the ground. Use the bracket to secure the Flow Meter.
3) For best results, allow a minimum of 7 1/2 inches [20 cm] of straight hose on inlet of Flow Meter.
Bend radius of hose on outlet of Flow Meter should be gradual.
4) Flow must be in direction of arrow on Flow Meter.
NOTE: It is critical, when using suspensions, that the system be thoroughly rinsed out each day
after use.
NOTE: If system does not use carrier control for PROD 1, the injection option shown for PROD
2 is available for use in place of carrier control.

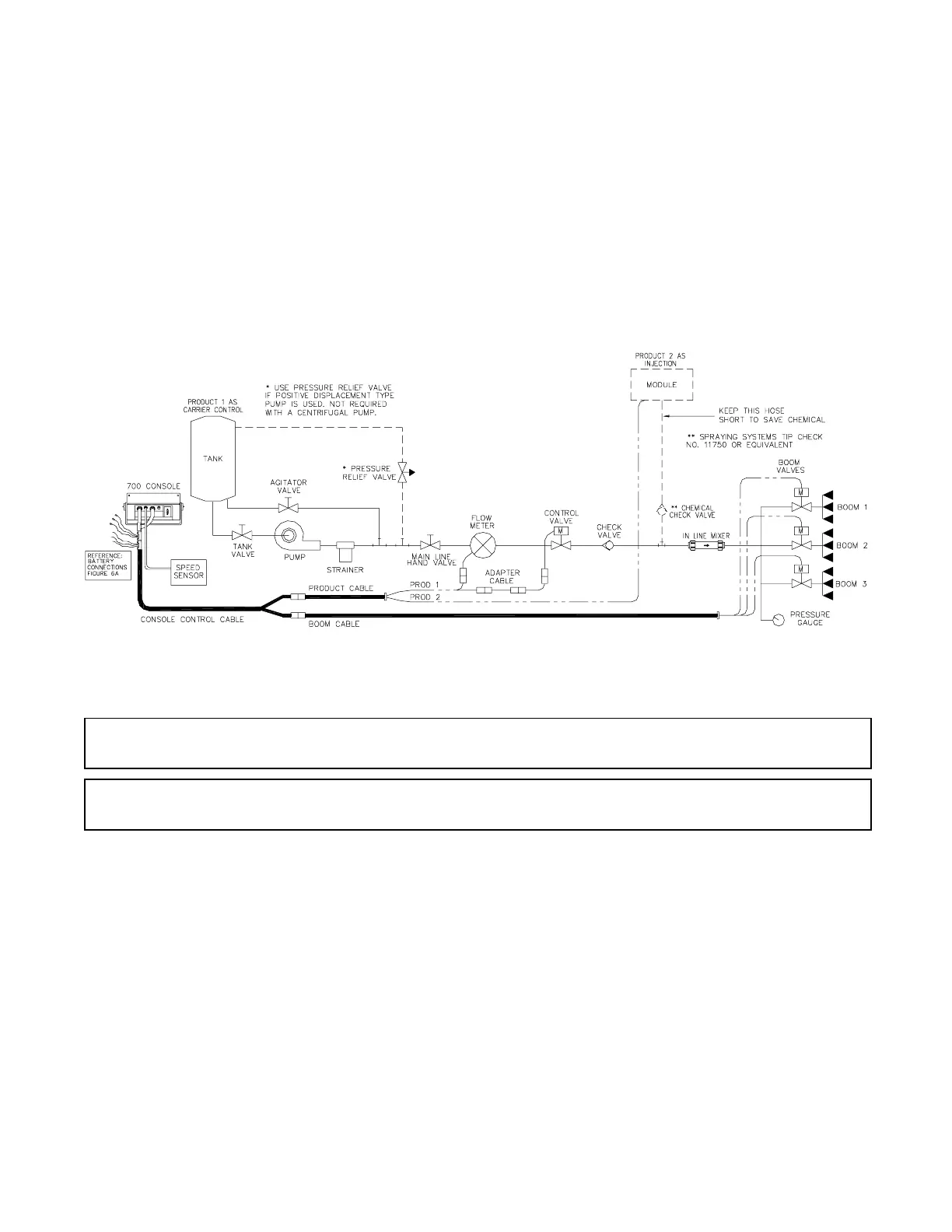

FIGURE 4
3. MOUNTING THE CONTROL VALVE
1) Mount the motorized Control Valve in the main hose line between the Flow Meter and the booms,
with motor in the upright position. (For flow less than 3 GPM [11 lit/min] the motorized Control Valve
is mounted in a bypass line, refer to Appendix 3 for alternate plumbing diagram).
2) Connect Product Cable connectors to Flow Meter, Control Valve, and Injection Module. Install
Adapter Cable P/N 115-0159-456 on Control Valve.
3) Connect Boom Cable to the Boom Valves (Black wire to Valve #1, Brown wire to Valve #2, and
Blue wire to Valve #3.
To Next Page
