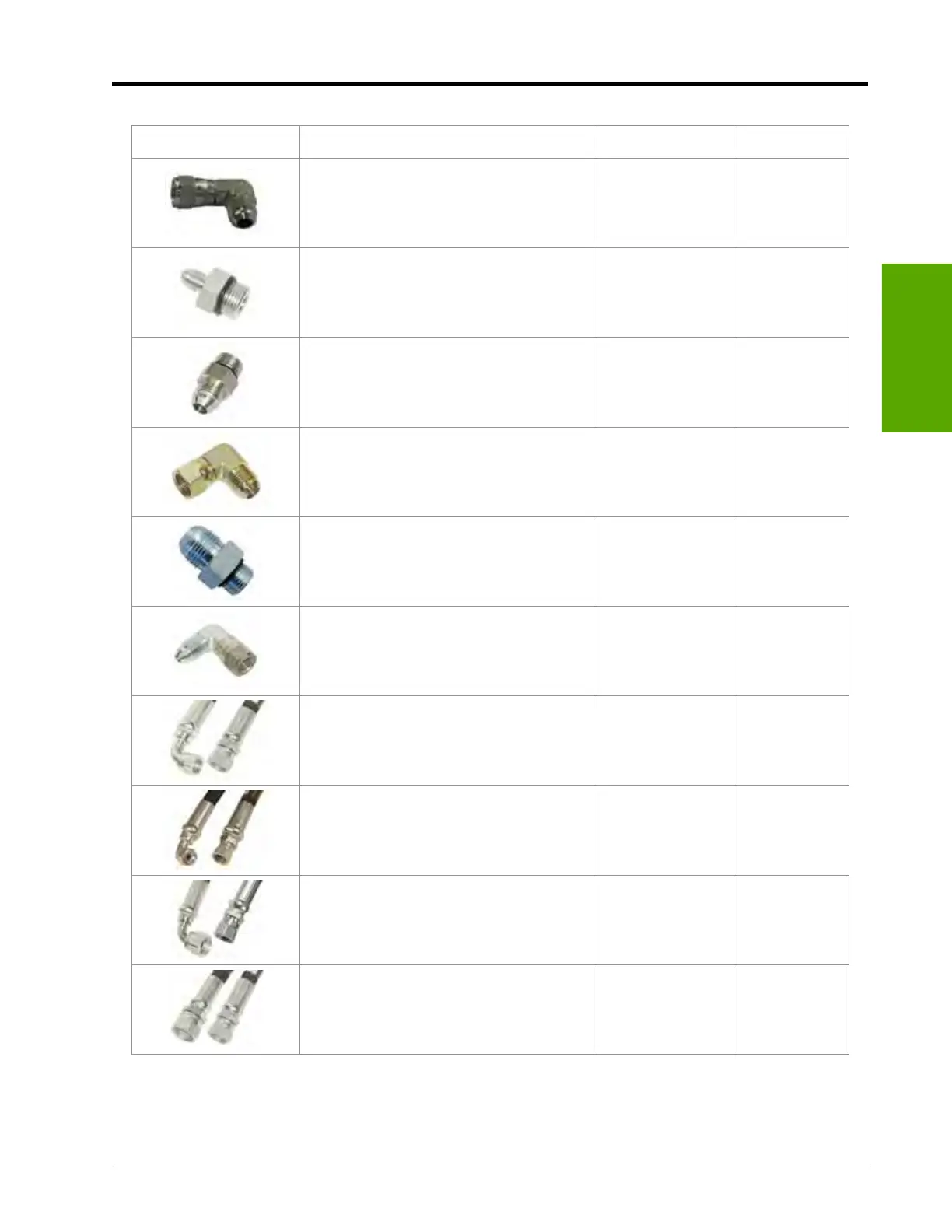

TABLE 2. Hydraulic Installation Kit (P/N 117-0199-127)
Picture Item Description Part Number Qty.
Fitting - -6 JIC M/F 90° Swivel Elbow 333-0012-042 2
Fitting - -4 JIC (M) to -6 SAE O-Ring (M)
Straight Adapter
333-0012-044 2
Fitting - -6 JIC (M) to -10 SAE O-Ring (M)
Straight Adapter
333-0012-106 2
Fitting - -10 JIC M/F 90° Swivel Elbow 333-0012-108 2
Fitting - -10 JIC (M) to -8 SAE O-Ring (M)
Straight Adapter
333-0012-110 2
Fitting - -4 JIC M/F 90° Swivel Elbow 333-0012-154 1
Hydraulic Hose - -10 JIC (F) 90° to -10 JIC
(F) - 42”
214-1000-638 1
Hydraulic Hose - -6 JIC (F) 90° to -6 JIC (F) -
44”
214-1000-780 2
Hydraulic Hose - -4 ORFS (F) 90° to -4
ORFS (F) - 48”
214-1000-958 1
Hydraulic Hose - -12 JIC (F) to -10 JIC (F) -
46”
214-1000-959 1
