Manual No. 016-5030-010 Rev. A 13
Hydraulic System Installation

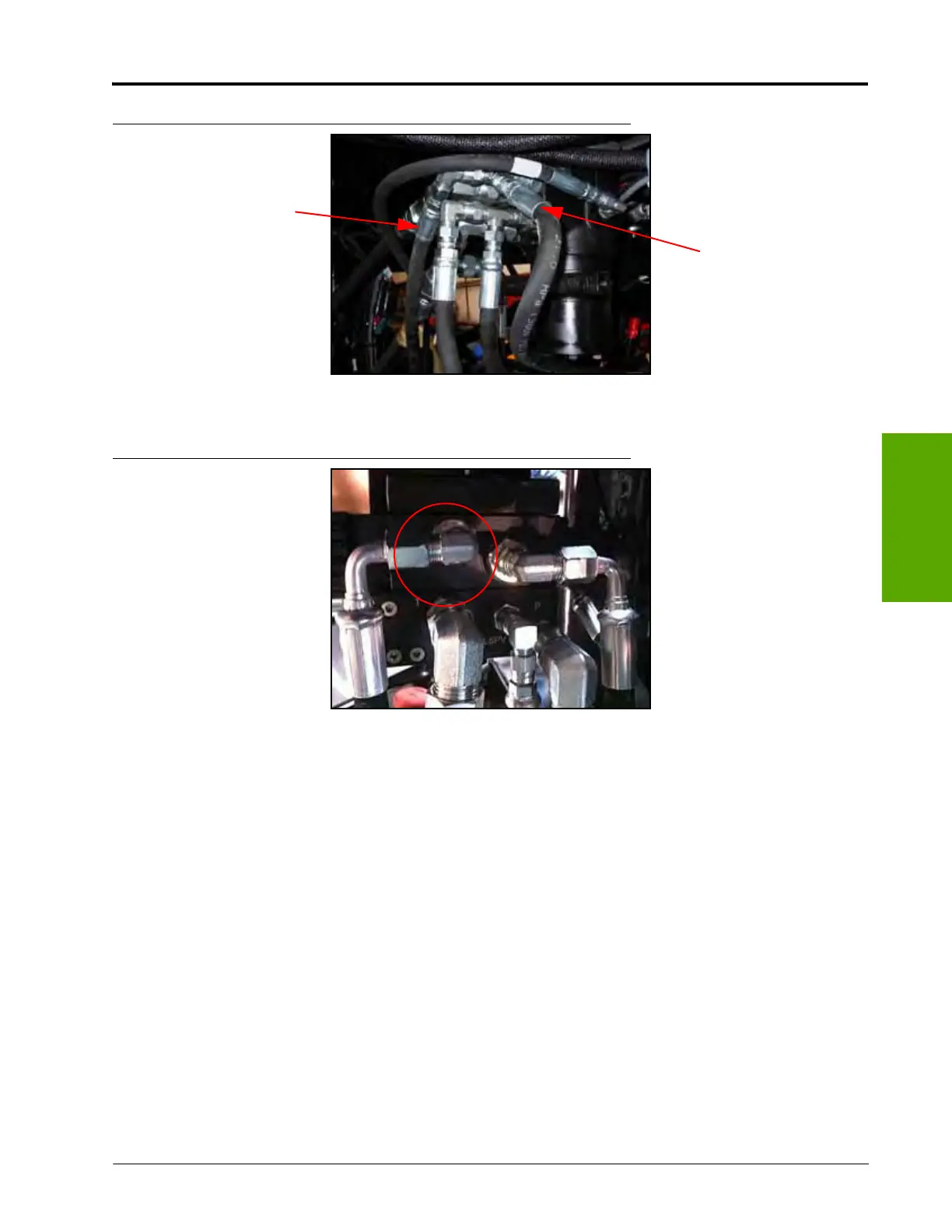

FIGURE 6. Left Steering Hose Installed on Steering Orbital
3. Install the straight end of the supplied hydraulic hose (P/N 214-1000-780) on the open port of the tee fitting.
FIGURE 7. Left Steering Hose Installed on SmarTrax Valve
4. Connect the 90° end of the installed hydraulic hose to the fitting installed in Port A of the SmarTrax valve
(P/N 334-0003-088).
Machine’s Left
Steering Hose
Installed Left
Steering Hose
(P/N 214-1000-780)
To Next Page
