Chapter 3
14 RBR Enterprise Vector 300 LS/Venturi LS SmarTrax™ Installation Manual

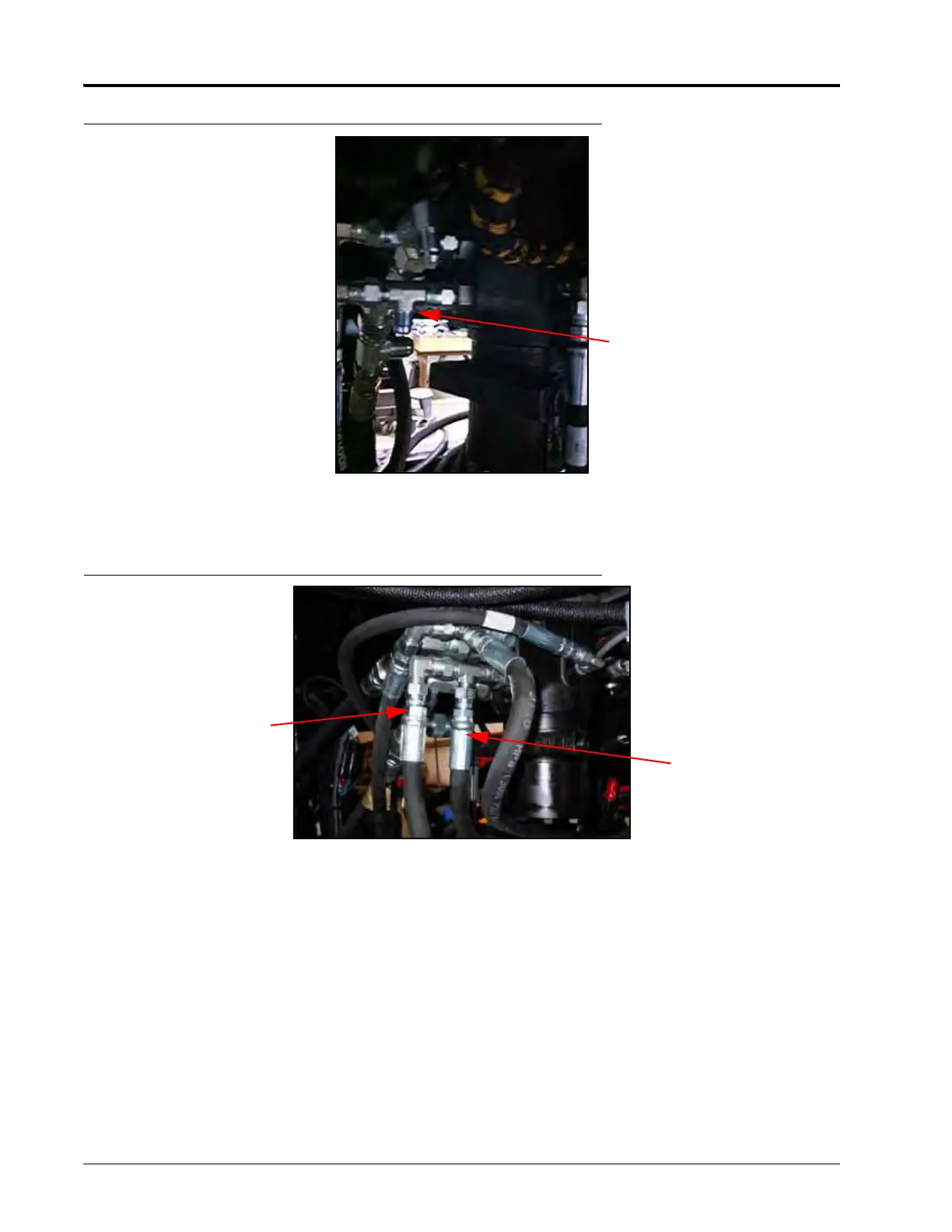

FIGURE 8. Right Steering Port on Steering Orbital
5. Remove the cap from the tee fitting installed in the right steering port (lower-right corner) of the steering
orbital.
FIGURE 9. Right Steering Hose Installed on Steering Orbital
6. Install the straight end of the supplied hydraulic hose (P/N 214-1000-780) in the open port if the tee fitting.
Right Steering Port
Machine’s Right
Steering Hose
Installed Right
Steering Hose
(P/N 214-1000-780)
