Wuhan Raycus Fiber Laser Technologies CO., Ltd.
Pulsed Fiber Laser User’s Guide V2.1
2. Mounting
2.1 Mounting dimensions
a) Fiber Laser module dimensions (As shown in Fig. 1).

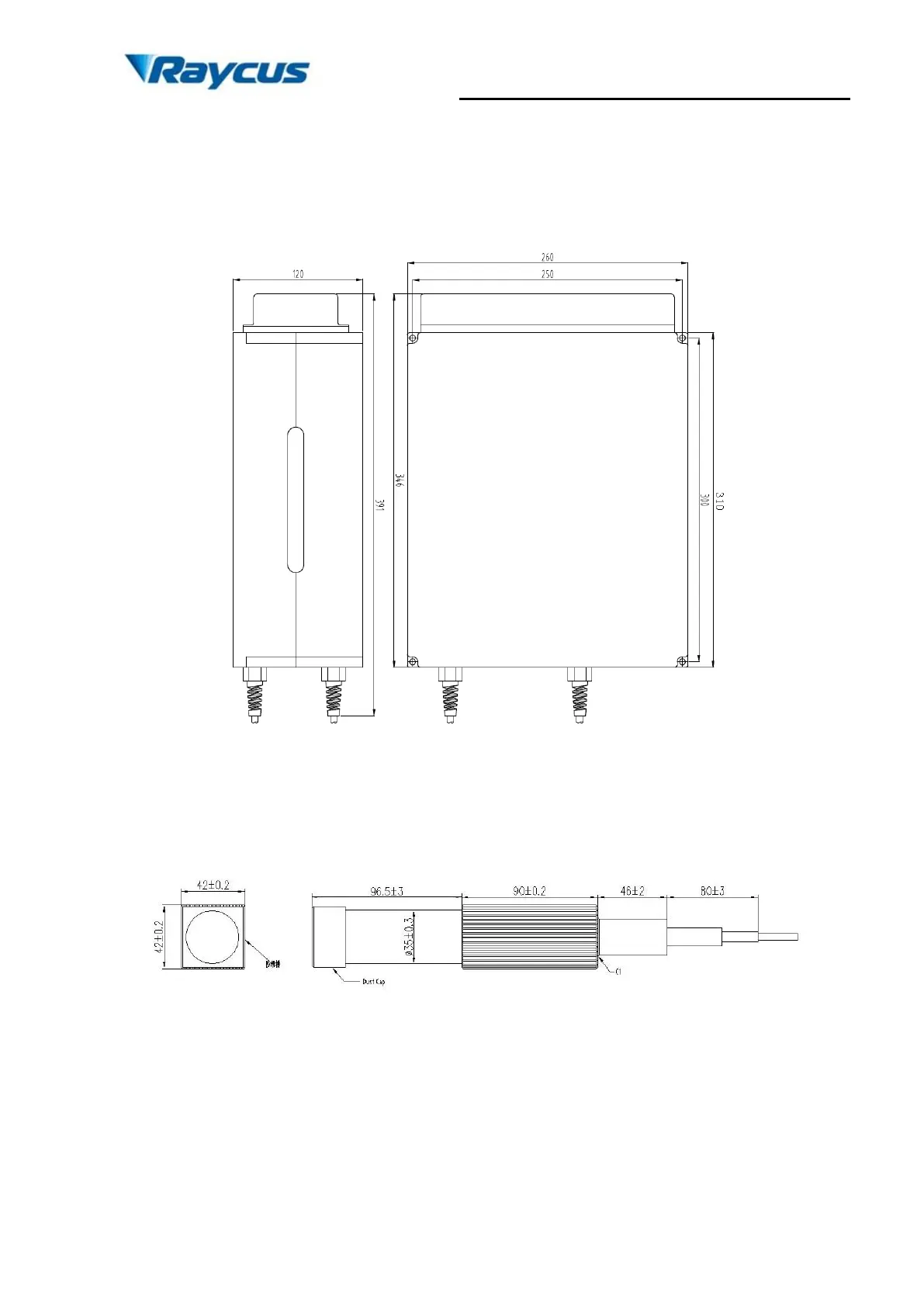

Figure 1. Dimension drawing of laser module(Unit: mm).
b) Isolated output head dimensions (As shown in Fig. 2).
Figure 2. Dimension drawing of output isolator (Unit: mm).
2.2 Method of installation
a) Fix the module stable to the bracket and keep the laser in good ventilation.
b) Connect the power line to 24V DC power and ensure enough DC output power.Keep it
clear to the polarity of the electric current: anode-brown; cathode-blue; PE-yellow and
