3.2.2 HAND HELD CONTROL UNIT
The hand held control unit provides remote
proportional power steering of the vessel as well
as full control of the autopilot. A safety interlock
ii*
MANUAL AUTO
prevents use of the hand held control unit when
the autopilot is disengaged by the helmsman.
em

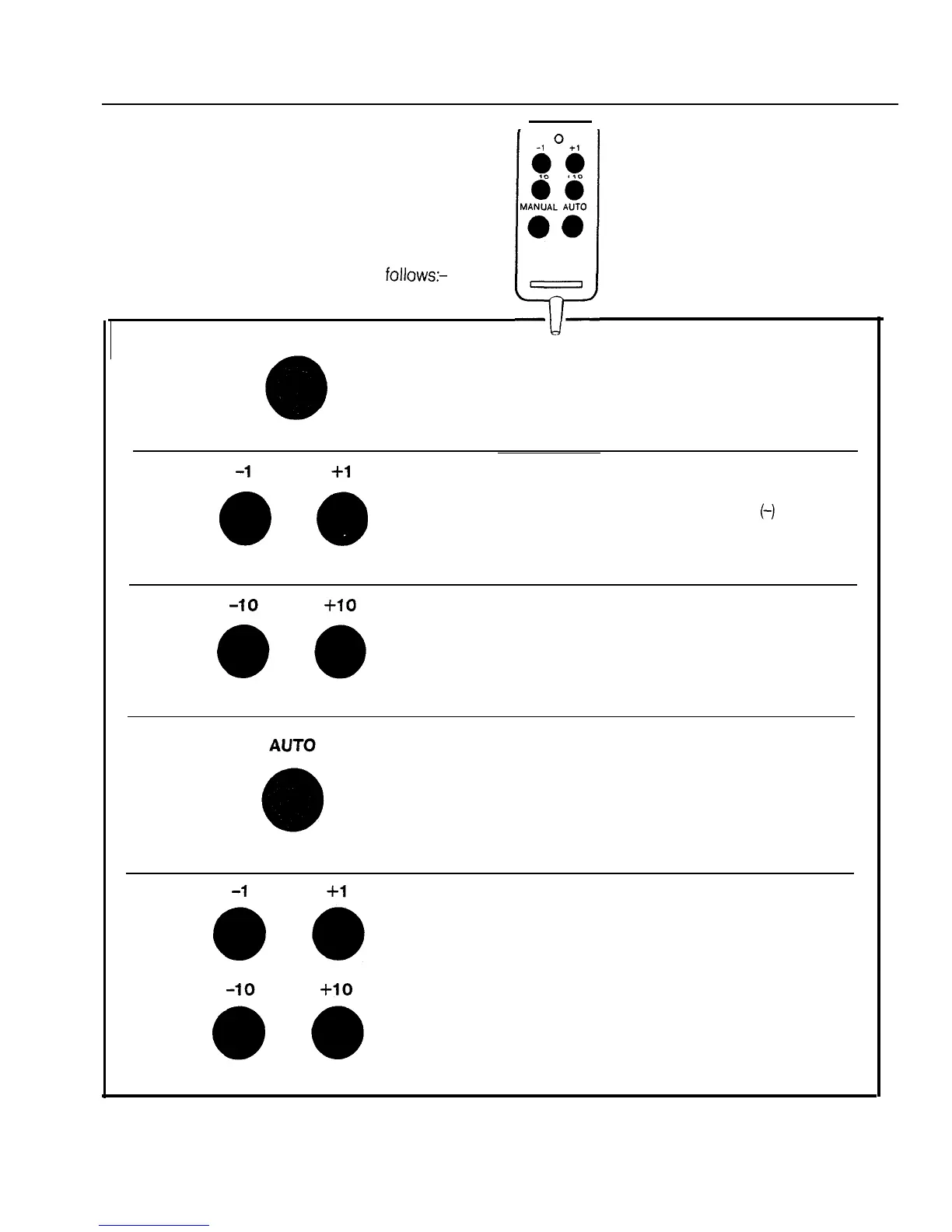

The basic control functions are as
follows-
MANUAL
:,I
Push once to permit power steering.
Push once to move rudder to port
(-)
or
starboard (+) in single fine increments.
Push once to move rudder to port (-) or
starboard (+) in single coarse increments.
Push once to reengage automatic
compass heading control and maintain
the current heading.
or
Push twice (within 2 seconds) to return to
the previous automatic heading.
Push to permanently alter course to port (-)
or starboard (+) in increments of
1 or 10 degrees.
