Raymarine E70363 - User Manual

84 pages

Save Page as PDF

To Next Page

To Next Page

Loading...

© 2020 Raymarine UK Limited

87298-3Document number:

01-2020Date:

English (en-US)

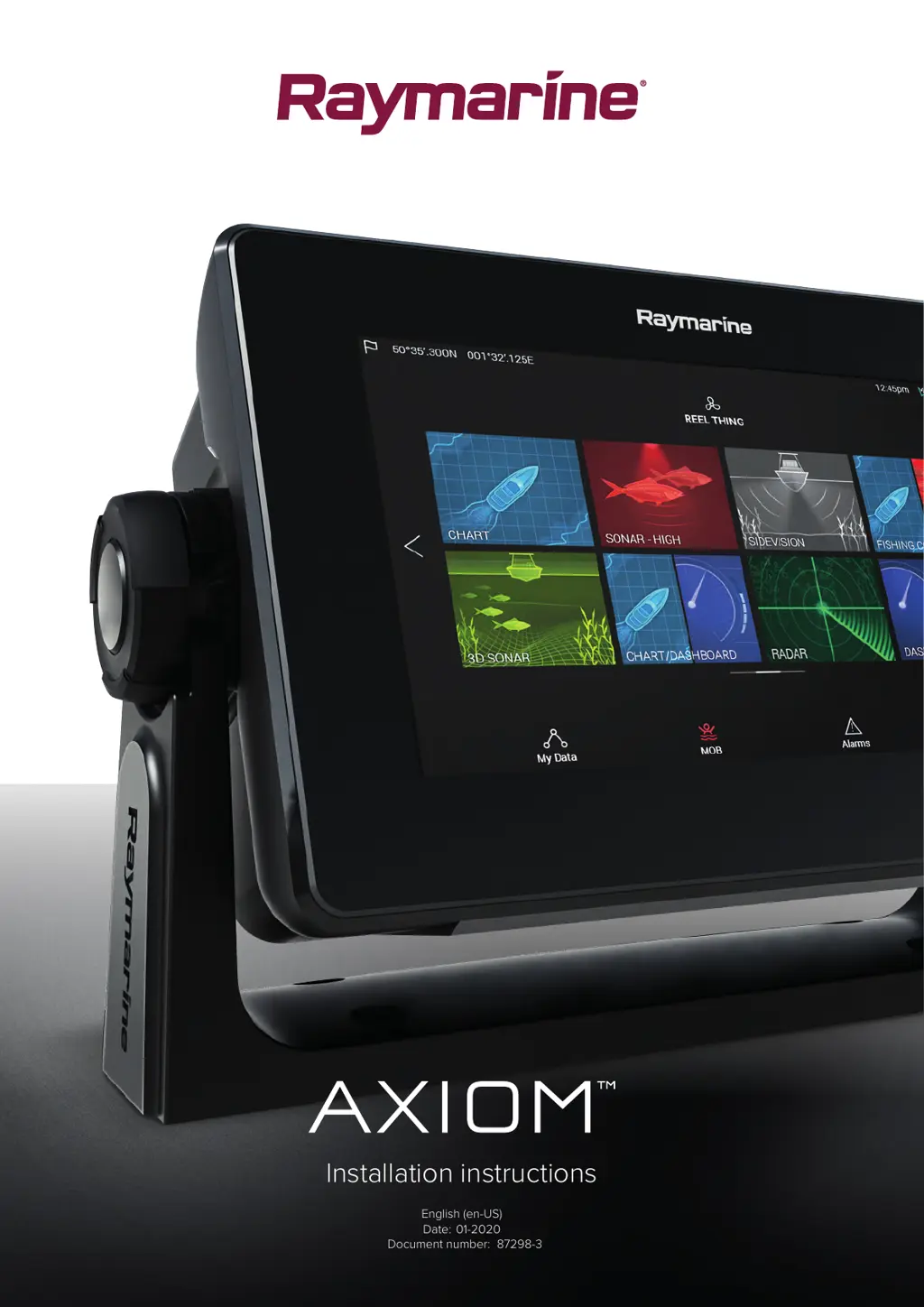

Installation instructions

Table of Contents

Questions and Answers

L
Lisa GarciaAug 17, 2025
How to fix a Raymarine E70363 that won't turn on?
- C
  Carmen FrederickAug 17, 2025
  If your Raymarine Monitor doesn't turn on or keeps turning off, here are some things to check: * Make sure the relevant fuses and breakers are in good condition and properly connected; replace them if needed. * Verify the power cable is correctly oriented, fully inserted into the display connector, and locked in place. * Confirm the power supply is wired correctly, referring to the installation instructions if necessary.
J
John WilsonAug 22, 2025
What to do if Raymarine E70363 Monitor connection is slow or keeps dropping?
- G
  garciajakeAug 22, 2025
  If your Raymarine Monitor's connection is slow or keeps dropping, it might be due to: * Wi-Fi performance degrades over distance. Move devices closer together. * Interference being caused by other Wi-Fi enabled or older Bluetooth enabled devices. Change the Wi-Fi Channel of the device you are trying to connect to and retry the connection. * Interference from devices on other vessels. Change the Wi-Fi Channel of the device you are trying to connect to and retry the connection.
I
Ian DeanAug 26, 2025
How to troubleshoot a Raymarine E70363 Monitor that cannot find a network?
- P
  pbrownAug 26, 2025
  If your Raymarine Monitor cannot find a network, consider the following: * Ensure Wi-Fi is enabled on both Wi-Fi devices and rescan available networks. * Some devices may automatically turn off Wi-Fi when not in use to save power. Power cycle / reboot devices and rescan available networks. * Try to enable broadcasting of the device’s network using the Wi-Fi settings on the device you are trying to connect to. * Move devices closer together or, if possible remove the obstructions and then rescan available network.
J
Jocelyn WilliamsAug 30, 2025
What to do if Raymarine Monitor touchscreen is not working?
- T
  Tamara RichmondAug 30, 2025
  If the touchscreen on your Raymarine Monitor is not working as expected: * Check if TouchLock is enabled. Swipe your finger from left to right across the Power button swipe area to de-activate the TouchLock. * Ensure you are operating the screen with bare fingers. Bare fingers must make contact with the screen for correct operation. * If there are water deposits on the screen, carefully clean and dry the screen in accordance with the instructions provided.
D
davispriscillaSep 5, 2025
Why does my Raymarine E70363 display behave erratically?
- B
  Barbara OnealSep 5, 2025
  If your Raymarine Monitor is behaving erratically with frequent unexpected resets, system crashes, or other erratic behavior, consider the following: * Intermittent problem with power to the display: Check relevant fuses and breakers. * Software mismatch on system (upgrade required): Go to www.raymarine.com and click on support for the latest software downloads. * Corrupt data / other unknown issue: Perform a factory reset. Important: This will result in the loss of any settings and data (such as waypoints) stored on the product.
M
Miguel DelgadoSep 8, 2025
Why is the Raymarine E70363 mobile application running slowly or not at all?
- C
  Chase CooperSep 8, 2025
  If the mobile application for your Raymarine Monitor is running slowly or not at all, check these things: * Raymarine app not installed: Install mobile app from relevant app store. * Raymarine app version not compatible with MFD software: Ensure mobile app and MFD software are latest available versions. * Mobile apps not enabled on MFD: Enable “Viewing only” or “Remote Control” as required in the Mobile Apps setting on your MFD.
T
Tanya RodriguezSep 12, 2025
What to do if Raymarine Monitor will not start up (restart loop)?
- D
  Donna DoyleSep 12, 2025
  In the unlikely event that the Raymarine Monitor will not start up (restart loop) due to software corruption, try downloading and installing the latest software from the Raymarine website.
C
Cameron AndersonSep 13, 2025
Why does my Raymarine E70363 show a “No Fix” GNSS status?
- D
  dawn42Sep 13, 2025
  The “No Fix” GNSS status icon on your Raymarine Monitor may be displayed due to: * Geographic location or prevailing conditions preventing satellite fix. Check periodically to see if a fix is obtained in better conditions or another geographic location. * GNSS (GPS) connection fault. Ensure that external GNSS connections and cabling are correct and fault free. * External GNSS (GPS) receiver in poor location. Ensure GNSS (GPS) receiver has a clear view of the sky. * GNSS (GPS) installation problem. Refer to the installation instructions.
D
Dakota HarrisonNov 18, 2025
Why can't I connect my Raymarine Monitor to the network?
- C
  Cynthia HopkinsNov 18, 2025
  If you're having trouble connecting your Raymarine Monitor to the network, consider these potential causes and solutions: * Ensure that Wi-Fi is enabled on your devices. * Some devices may automatically turn off Wi-Fi when not in use to save power. Power cycle/reboot devices and retry the connection. * Verify that you are trying to connect to the correct Wi-Fi network. * Make sure you are using the correct passphrase. * Bulkheads, decks, and other heavy structures can degrade and even block the Wi-Fi signal. Try repositioning the devices so the structure is removed from the direct line of sight between the devices. * Interference being caused by other Wi-Fi enabled or older Bluetooth enabled devices. Try changing the Wi-Fi Channel of the device you are trying to connect to and...
V
vbrownNov 27, 2025
Why is the scrolling image not displaying on my Raymarine Monitor?
- G
  Glenn RogersNov 27, 2025
  If the scrolling image is not being displayed on your Raymarine Monitor, check the following: * Sonar disabled: Select Ping Enable from the Sonar app’s Sounder menu. * Incorrect transducer selected: Check that the correct transducer is selected in the Sonar app’s Transducer menu. * Damaged cables: Check that the transducer cable connector is fully inserted and locked in position. * Damaged or fouled transducer: Check the condition of the transducer ensuring it is not damaged and is free from debris/fouling, clean or replace as necessary. * Wrong transducer fitted: Ensure the transducer is compatible with your system. * External sonar module: SeaTalkhs ™ / RayNet network problem: Check that the unit is correctly connected to the multifunction display or Raymarine network switch...

Summary

Chapter 1: Important Information

Chapter 3: Installation

Location Selection Guidelines

Key factors and guidelines for choosing an optimal installation location.

Mounting Options

Axiom 7 Mounting Procedures

Rear Mount Kit Installation

Chapter 4: Connections

Connection Overview and Power Supply

Summary of connection ports, including network, accessory, and power supply details.

NMEA 2000, Transducer, and Network Connections

Accessory Connections

Chapter 6: Troubleshooting

LED Diagnostics and Power Issues

Interpreting LED status lights and troubleshooting power-on problems.

GNSS, Sonar, and Wi-Fi Troubleshooting

Diagnosing and resolving issues with GNSS, Sonar, and Wi-Fi connectivity.

Touchscreen and General Troubleshooting

Chapter 7: Technical Support

Product Support and Servicing Contact

Contact information and resources for warranty, service, and repairs.

Chapter 8: Technical Specifications

Axiom MFD Specifications

Detailed specifications for Axiom 7, 9, and 12 models including power, environmental, and LCD.

Sonar and GNSS Receiver Specifications

Technical details for internal sonar capabilities and GNSS receiver performance.

Raymarine E70363 Specifications
