P/N 241417Rev 4
Effective: 12-04-12
Replaces: 10-07-11
Page 12
Resets board to factory default
settings.
Resets faults in the History File.
Change from Fahrenheit to Celsius.
SPA setpoint maximum adjustment.
POOL setpoint maximum adjustment.

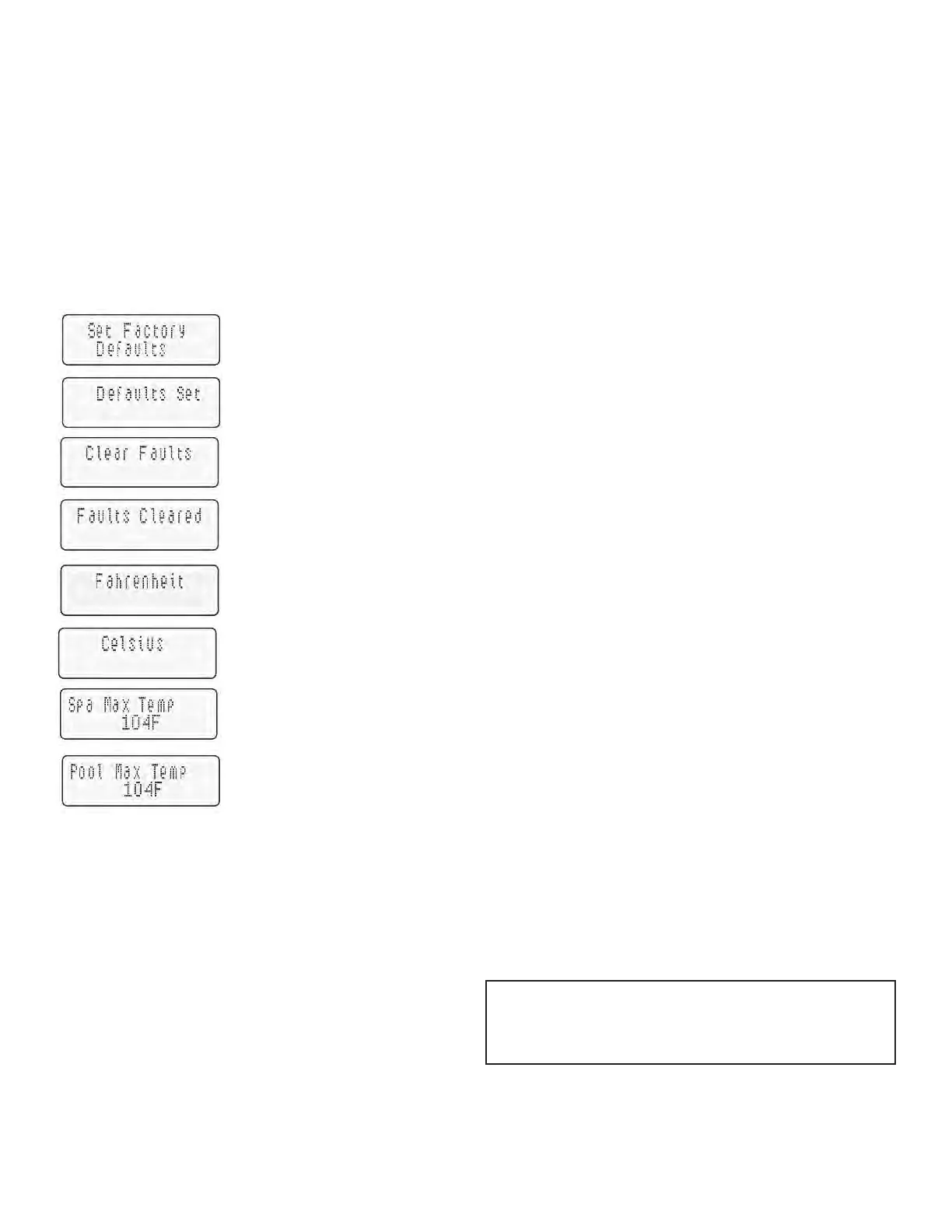

Set Factory Defaults
Refer to step one above to access the program screen. Set
Factory Defaults should appear on the screen. If it does not,
press the Mode button until Set Factory Defaults appears
on the digital display. Press and hold both UP and DOWN
buttons for 5-7 seconds until Defaults Set appears. This op-
eration resets the operating program to its factory default val-
ues. Both the POOL and SPA setpoints will revert to 65°F
(18.5°C) and both POOL and SPA maximum temperature
settings will be 104°F (40.0°C). The Control Lockout PIN will
be cleared and the control will resume normal operation.
Clear Faults
Refer to step one above to access the program screen.
Press the Mode button until Clear Faults appears on the
digital display. Press and hold both UP and DOWN buttons
for 5-7 seconds until Faults Cleared appears. This operation
resets the Fault History file to “0” and clears all the stored
faults.
Program Button
1) Remove the four screws holding the control cover, and
swing the panel down so the back side of the board is
visible (see page 2). Locate the Program Mode button
(marked as SW1) as shown on page 15. Press and hold
the button (5-7 seconds) until Set Factory Defaults ap-
pears on the display. Release the program button.
2) Press the Mode button sequentially until the desired pro-
gram event is reached. There are 5 different events that
can be programmed. They appear in the sequence listed
below:
Fahrenheit or Celsius
Refer to step one above to access the program screen.
Press the Mode button until Fahrenheit or Celsius appears
on the digital display. The digital display is capable of dis-
playing Celsius as well as Fahrenheit temperatures. The UP
or DOWN buttons will select Fahrenheit or Celsius on the
temperature display. Choose the desired temperature scale.
Spa Max Temp – Spa Set Point Maximum Adjustment
Refer to step one above to access the program screen.
Press the Mode button until Spa Max Temp appears on the
digital display. Using the UP and DOWN buttons will change
the Maximum Temperature Setting to your desired value.
The control can be set for a maximum of 107°F.
Pool Max Temp – Pool Set Point Maximum Adjustment
Refer to step one above access into the program screen.
Press the Mode button until Pool Max Temp appears on the
digital display. Using the UP and DOWN buttons will change
the Maximum Temperature Setting to your desired value.
The control can be set for a maximum of 107°F.
Control Lockout
The heater is equipped with a Control Lockout feature to pre-
vent unauthorized tampering or adjustment of the control set-
tings. To lock out the controls, press the DOWN button and
Mode button for 5 seconds. Choose a three digit PIN, using
the UP and DOWN buttons to select the digits and the Mode
button to lock in selections. Confirm your selection and
record your PIN.
To unlock the controls, press any button to bring up the Enter
PIN menu. Enter the PIN that was used to lock the control.
Note that power cycling will not clear the lockout. Success-
fully unlocking the control will display “Lockout Cleared.”
Failure to enter the correct PIN will display “Invalid PIN.”
In the event that the user-selected PIN is lost or does not
clear the Control Lockout, use the Program Button to Set
Factory Defaults. This will clear the PIN and allow normal
operation and selection of a new PIN if desired. See the
Program Button directions on this page for details.
NOTE: Both the POOL and SPA setpoints will revert back
to 65°F (18.5°C) and the POOL and SPA maximum tem-
perature settings will be 104°F (40.0°C). These setpoints
will need to be readjusted to desired settings.
