THIS DIAGRAM IS RAYPAK’S RECOMMENDATION
AND IS NOT INTENDED TO REPLACE AN ENGINEERED
PIPING SYSTEM BY A PROFESSIONAL ENGINEER.
THIS DIAGRAM IS RA
YPAK’S RECOMMENDATION
AND IS NO
T INTENDED TO REPLACE AN ENGINEERED
PIPING S
YSTEM BY A PROFESSIONAL ENGINEER.

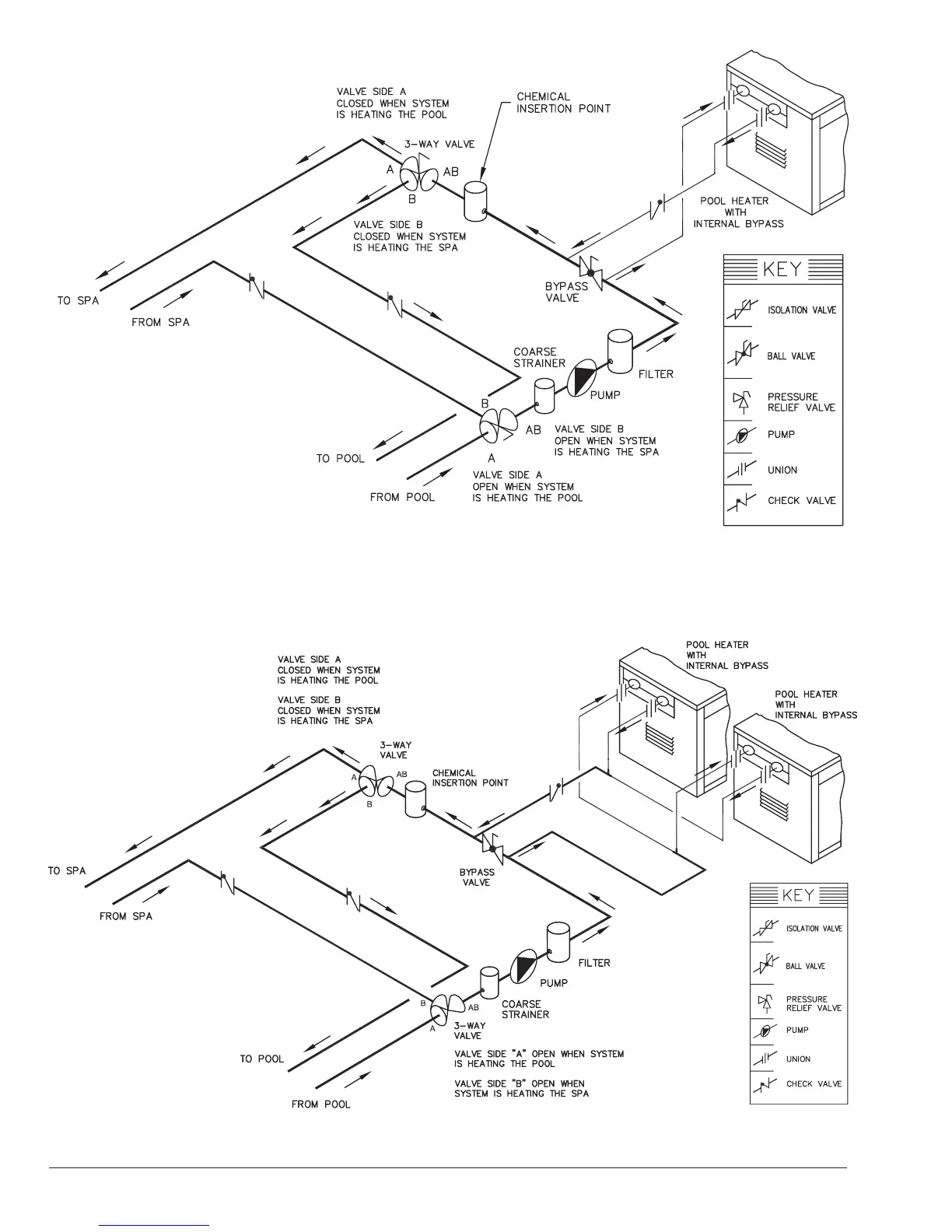

Figure 30. Multiple Pool Heater Installation
Figure 29. Single Pool Heater Installation
