Raypak 4350 Series User Manual

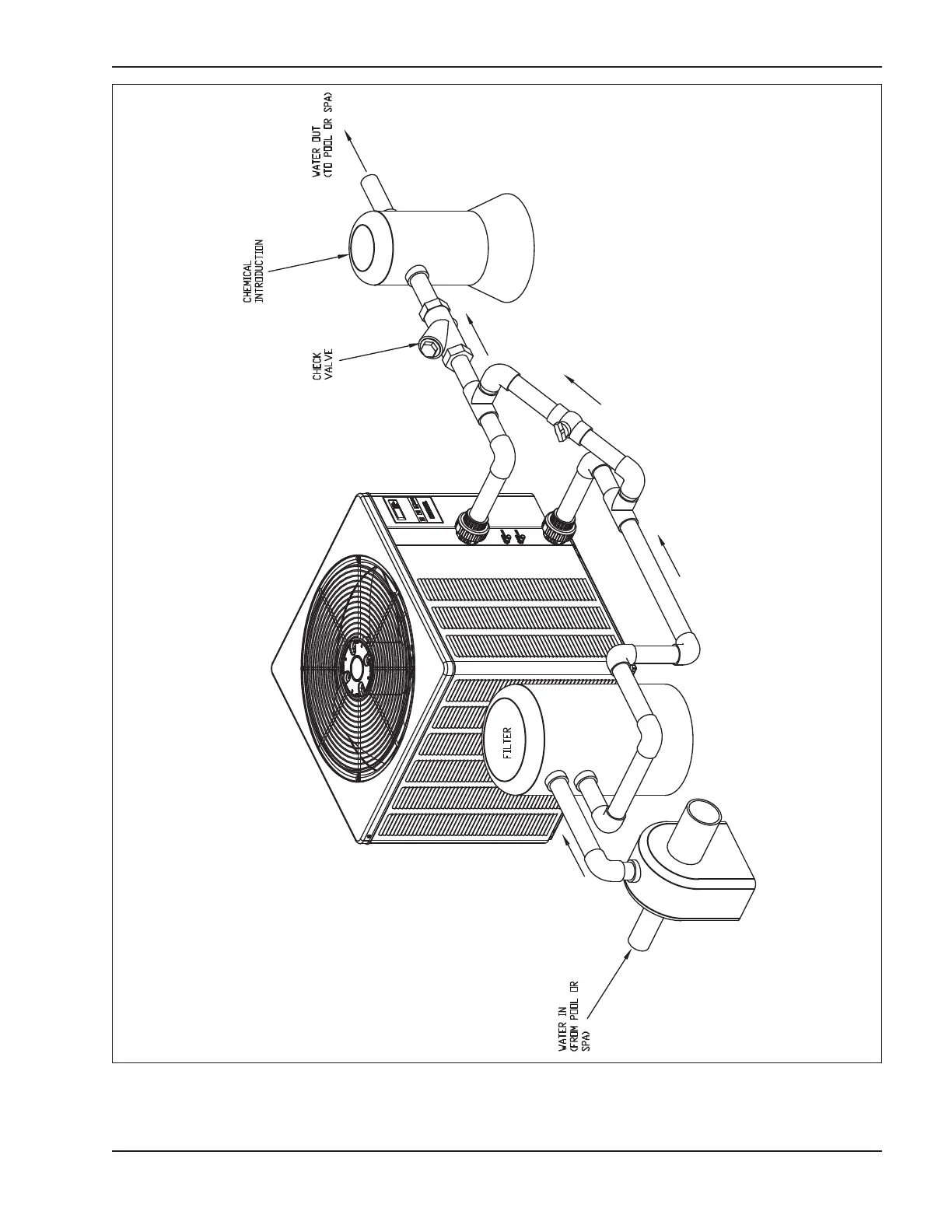

Fig. 6: For systems with pumps of 1-1/2 HP or greater (over 50 gpm), an external
bypass is required. Adjust the bypass valve to divert a minimum of 15 gpm
through the heat pump pool heater. Connections are 1-1/2 inch unions. Plumb the
heat pump pool heater AFTER the filter and BEFORE any chlorinators.
15

Raypak 4350 Series Specifications

General

Brand	Raypak
Model	4350 Series
Category	Heat Pump
Language	English
