LEFT SIDE

The D-2 Power Vent assembly includes a wire harness, shown in Fig. 6 below, which provides quick connec-

tions with the respective controls in the heater control box. The harness is of sufficient length to fit the appliance

for which it is sized.

Reference the wiring diagram supplied with each appliance for actual connections.

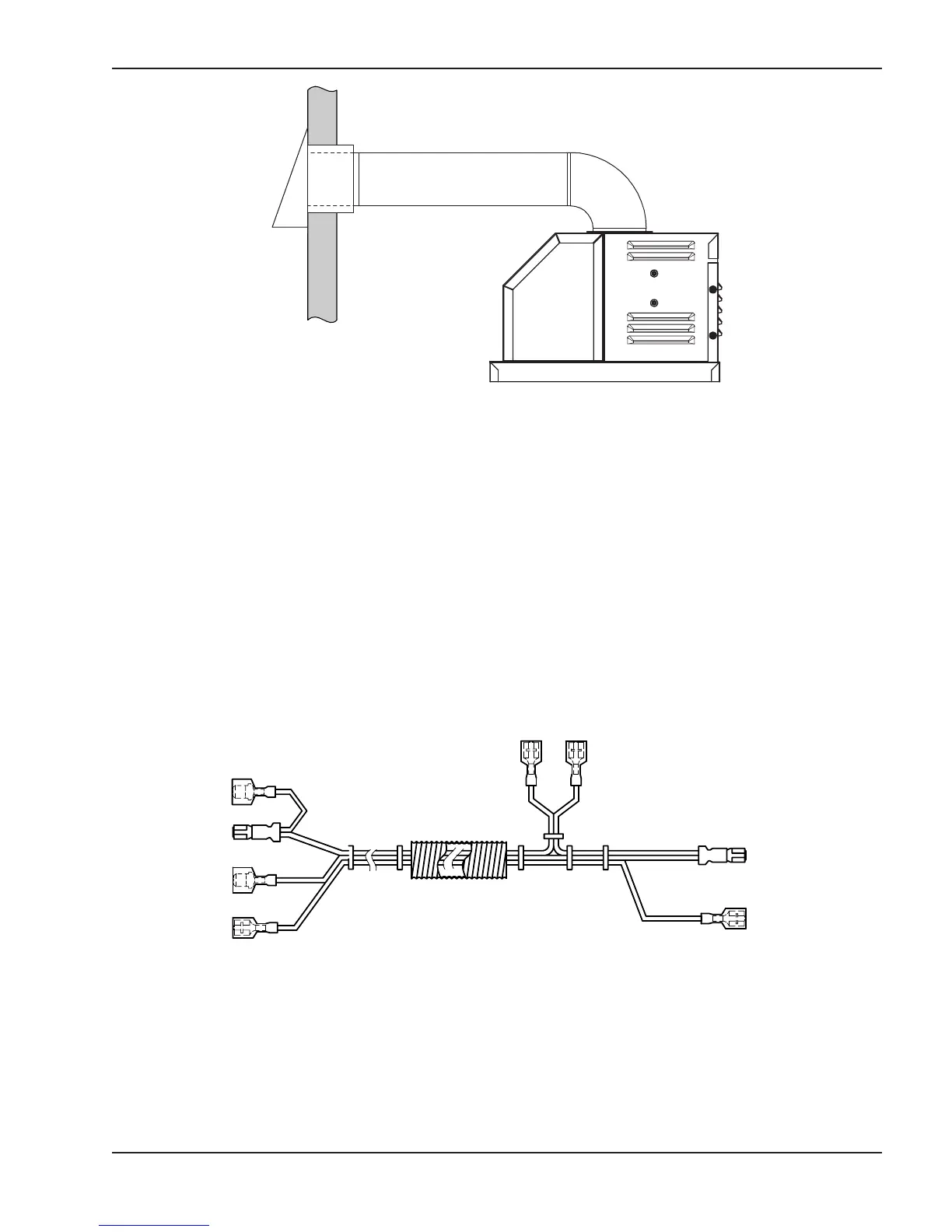

Fig. 5: Through the Wall Vent

PRESSURE

SWITCH

GAS

VALVE

RELAY

Y/BK

V/BK

V/W

Y/BK V/BK

V/BK

V/W

Fig. 6: D-2 Power Vent Wire Harness
