MODE 2
(With Default Settings Shown)
VIEW MENU

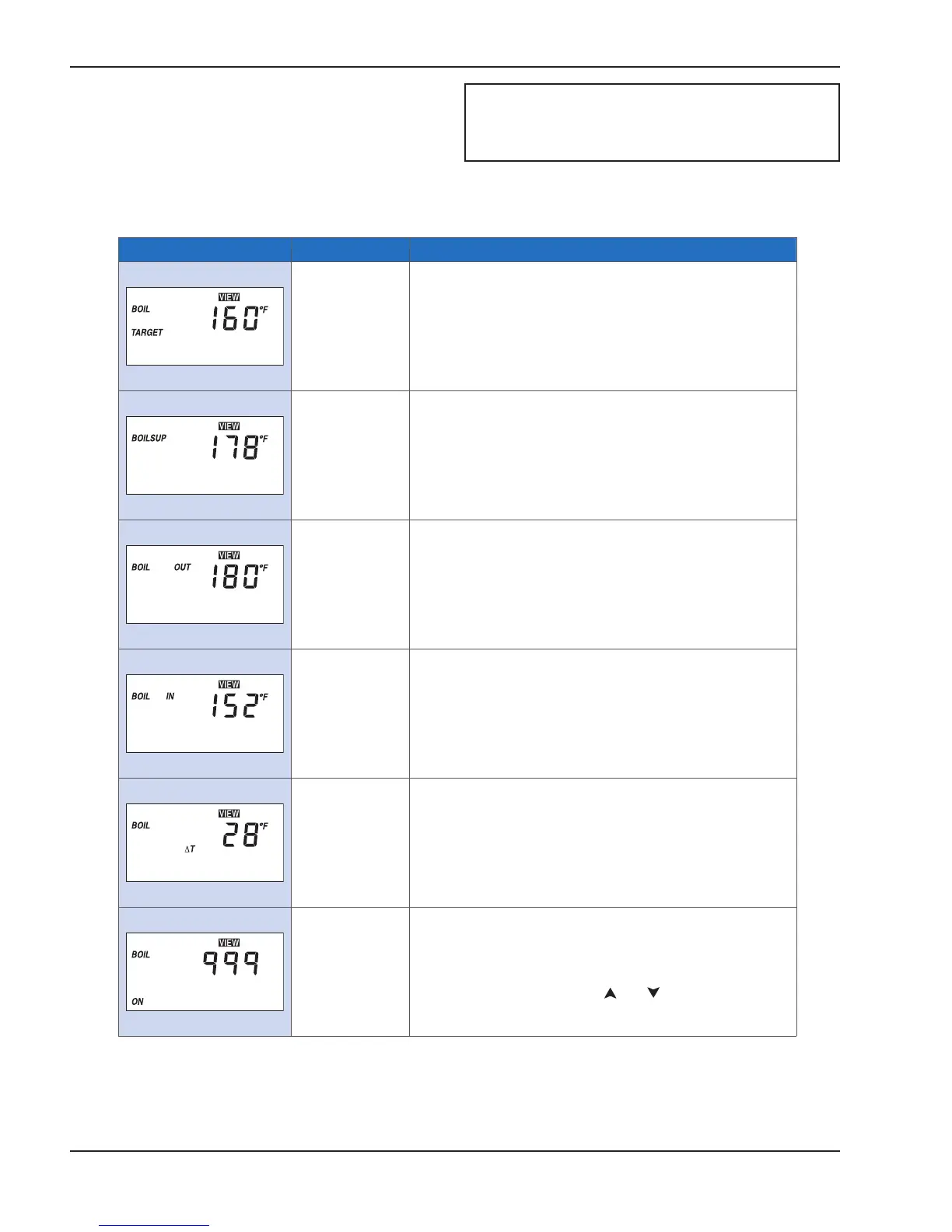

The View menu items display current operating tem-
peratures and system status information. Use the
Item button (see Fig. 5) to view items in this menu.
Item Field Range Description
--- ,
35 to 266°F
(2 to 130°C),
OFF
BOILER TARGET
The boiler target is the temperature the control is
currently trying to maintain at the boiler supply sensor
or the boiler outlet sensor.
-20 to 266°F
(-29 to 130°C)
BOILER SUPPLY
Current boiler supply water temperature as measured
by the boiler supply sensor.
Note: This item is only available when MODE is set to 2.
-20 to 266°F
(-29 to 130°C)
BOILER OUTLET
Current boiler outlet water temperature as measured
by the boiler outlet sensor.
Note: When MODE is set to 2 this item is only visible
in the Factory access level.
-20 to 266°F
(-29 to 130°C)
BOILER INLET
Current boiler inlet water temperature as measured by
the boiler inlet sensor.
Note: This item is only available when a boiler inlet
sensor is installed.
0 to 252°F
(0 to 140°C)
BOILER DELTA T
Current temperature dierence between the boiler outlet
sensor and the boiler inlet sensor.
Note: This item is only available when a boiler inlet
sensor is installed.
0 to 999
BOILER ON HOURS
The total number of running hours of the boiler since
this item was last cleared. Clear the numbers of hours
by pressing and holding the and buttons together
while viewing this item.
Table F: View Menu, Mode 2
