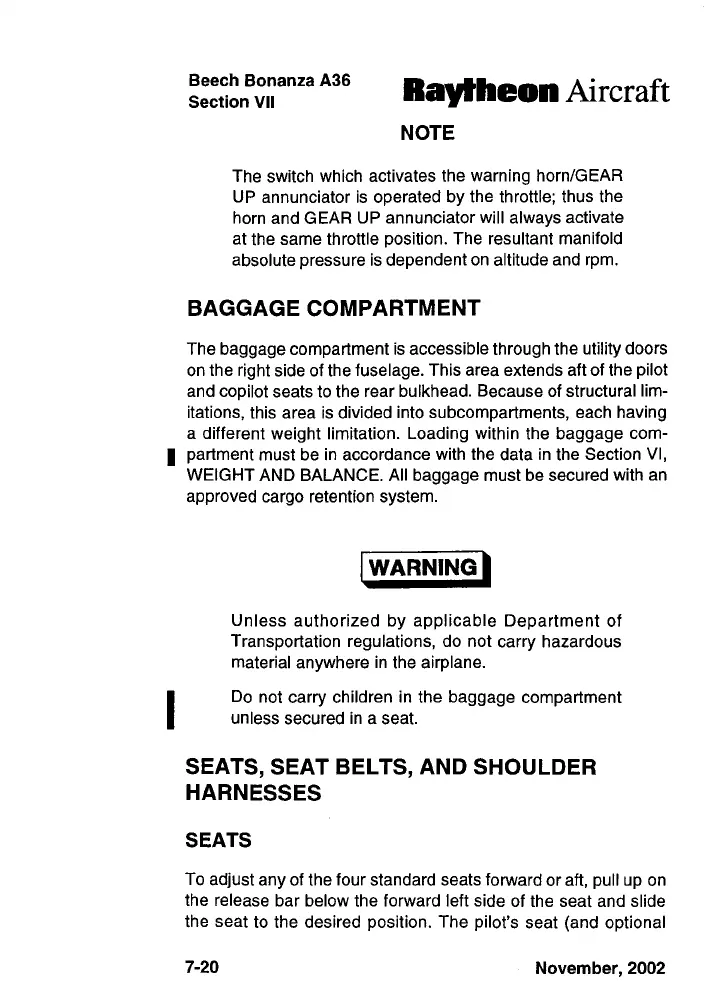

Beech Bonanza A36
Section VII
Raytheon Aircraft
NOTE
The switch which activates the warning horn/GEAR
UP annunciator is operated by the throttle; thus the
horn and GEAR UP annunciator will always activate
at the same throttle position. The resultant manifold
absolute pressure is dependent on altitude and rpm.
BAGGAGE COMPARTMENT
The baggage compartment is accessible through the utility doors
on the right side of the fuselage. This area extends aft of the pilot
and copilot seats to the rear bulkhead. Because of structural lim-
itations, this area is divided into subcompartments, each having
a different weight limitation. Loading within the baggage com-
I partment must be in accordance with the data in the Section VI,
WEIGHT AND BALANCE. All baggage must be secured with an
approved cargo retention system.
I
I WARNING I
Unless authorized by applicable Department of
Transportation regulations, do not carry hazardous
material anywhere in the airplane.
Do not carry children in the baggage compartment
unless secured in a seat.
SEATS, SEAT BELTS, AND SHOULDER
HARNESSES
SEATS
To adjust any of the four standard seats forward or aft, pull up on
the release bar below the forward left side of the seat and slide
the seat to the desired position. The pilot's seat (and optional
7-20
November, 2002
