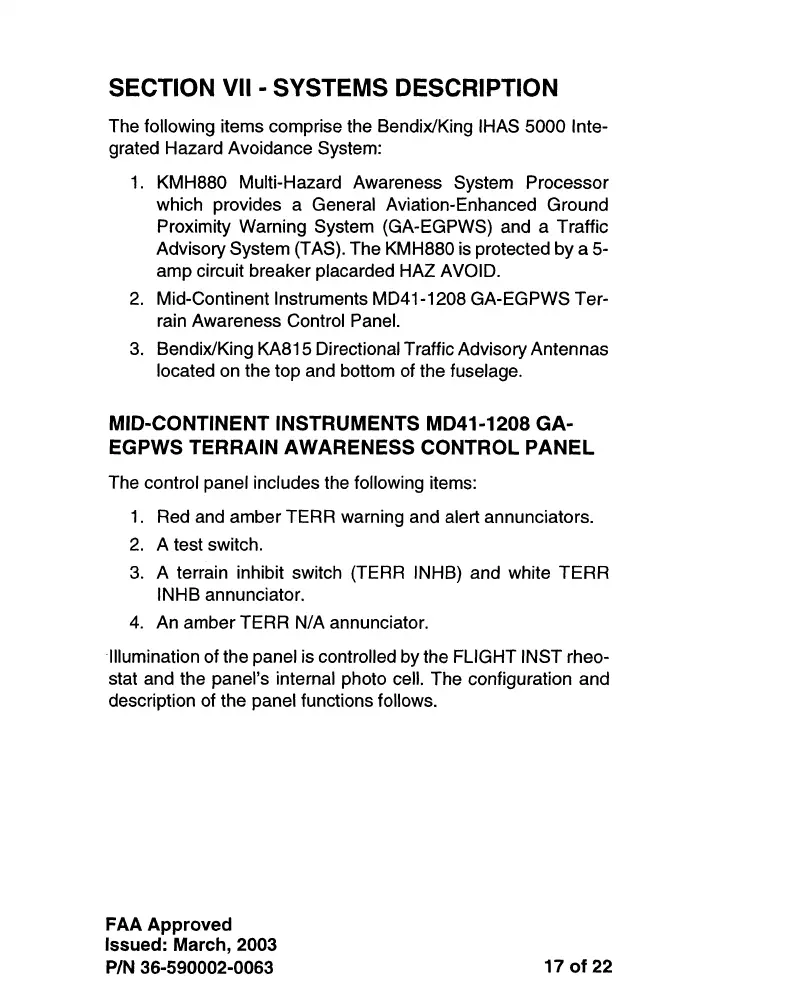

SECTION VII - SYSTEMS DESCRIPTION
The following items comprise the Bendix/King IHAS 5000 Inte-
grated Hazard Avoidance System:
1. KMH880 Multi-Hazard Awareness System Processor
which provides a General Aviation-Enhanced Ground
Proximity Warning System (GA-EGPWS) and a Traffic
Advisory System (T AS). The KMH880 is protected by a 5-
amp circuit breaker placarded HAZ AVOID.
2. Mid-Continent Instruments MD41-1208 GA-EGPWS Ter-
rain Awareness Control Panel.
3. Bendix/King KA815 Directional Traffic Advisory Antennas
located on the top and bottom of the fuselage.
MID-CONTINENT INSTRUMENTS MD41•1208 GA-
EGPWS TERRAIN AWARENESS CONTROL PANEL
The control panel includes the following items:
1. Red and amber TERR warning and alert annunciators.
2. A test switch.
3. A terrain inhibit switch (TERR INHB) and white TERR
INHB annunciator.
4. An amber TERR N/A annunciator.
Illumination of the panel is controlled by the FLIGHT INST rheo-
stat and the panel's internal photo cell. The configuration and
description of the panel functions follows.
FAA Approved
Issued: March, 2003
P/N 36-590002-0063
17 of 22
