Razor E100 series User Manual

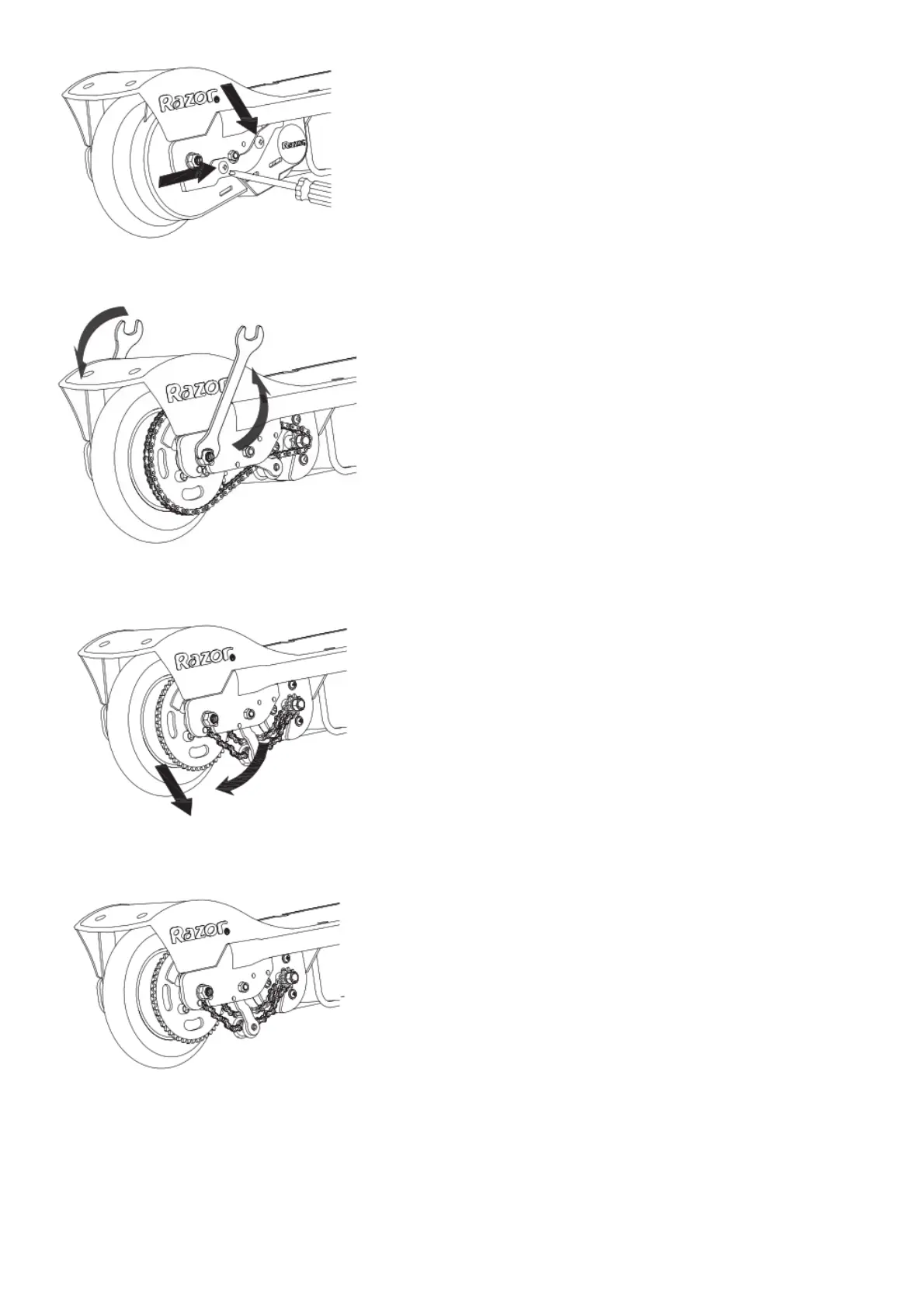

2 Using two (2) 13 mm wrenches, loosen the locknuts by turning the wrenches counter clockwise.
3 To loosen the chain, pushing the tensioner down to create some slack in the chain.
4 Remove wheel and install replacement wheel. (Note the sequence of the hardware.)
5 Push the chain tensioner down to install the chain on both sprockets.

Razor E100 series Specifications

General

Max Speed	10 mph (16 km/h)
Run Time	Up to 40 minutes of continuous use
Frame Material	Steel
Weight Limit	120 lbs (54 kg)
Age	8+
Throttle	Twist-grip throttle
Charge Time	12 hours
Motor	100-watt, high-torque, chain-driven motor
Battery	24V (two 12V) sealed lead acid rechargeable battery system
Brake	Hand-operated, front
Tires	8-inch pneumatic front tire
Deck	Full-size
