Razor E100 series User Manual

WARNING: DO NOT USE NON-RAZOR PRODUCTS WITH YOUR RAZOR ELECTRIC SCOOTER. The scooter
has been built to certain Razor design specifications. The original equipment supplied at the time of
sale was selected on the basis of its compatibility with the frame, fork and all other parts. Certain
aftermarket products may not be compatible and will void the warranty.
Note: Electric scooter must be moving at least 3 mph (5 km/h) while applying throttle to engage
motor.

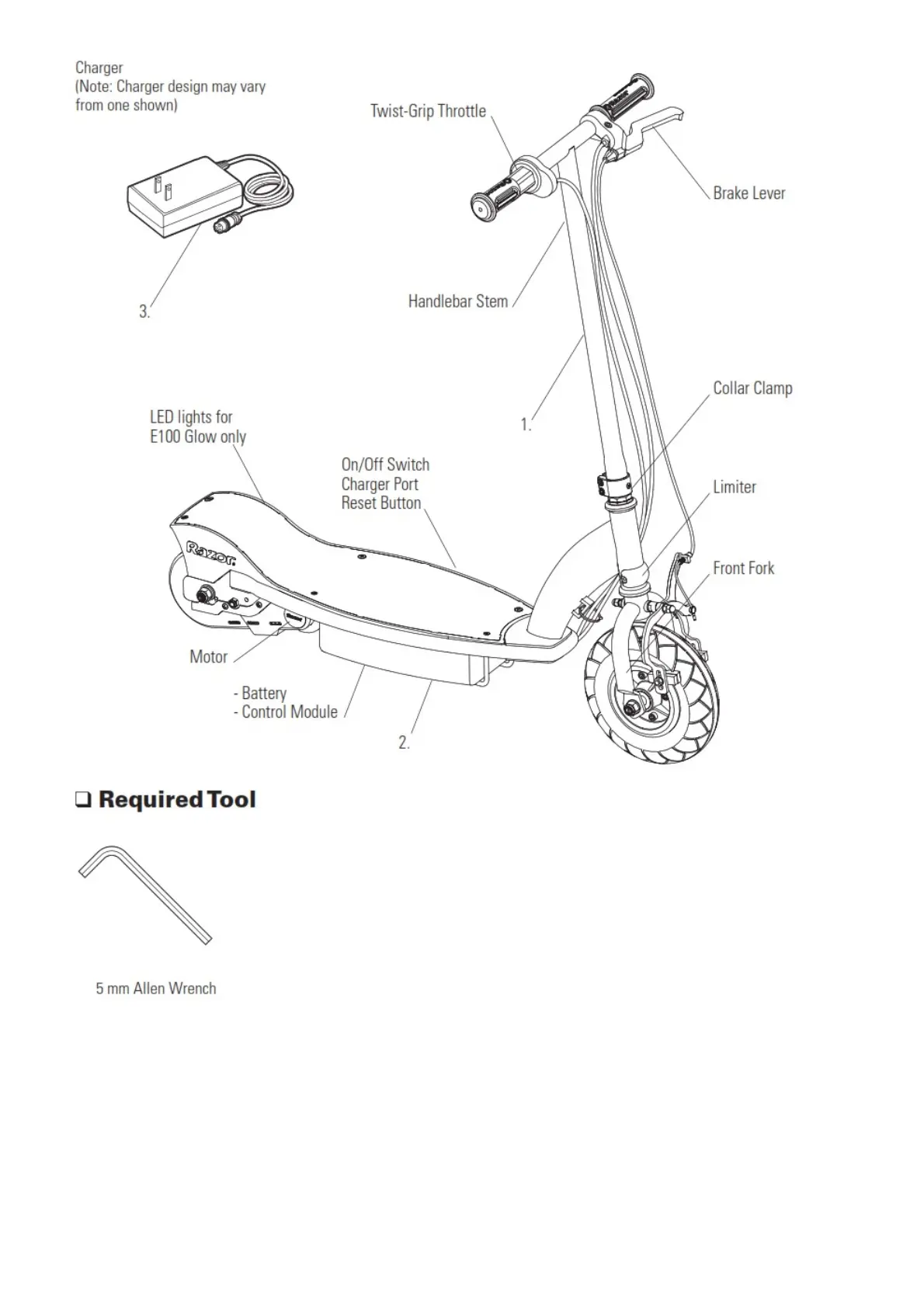

Product ID Locations:
(See location to the left)

Razor E100 series Specifications

General

Max Speed	10 mph (16 km/h)
Run Time	Up to 40 minutes of continuous use
Frame Material	Steel
Weight Limit	120 lbs (54 kg)
Age	8+
Throttle	Twist-grip throttle
Charge Time	12 hours
Motor	100-watt, high-torque, chain-driven motor
Battery	24V (two 12V) sealed lead acid rechargeable battery system
Brake	Hand-operated, front
Tires	8-inch pneumatic front tire
Deck	Full-size
