Razor E100S User Manual

9
Keep your scooter running for years with genuine Razor parts. Visit our web site or e-mail us for more information on spare part availability.
(Specifications subject to change without notice.)

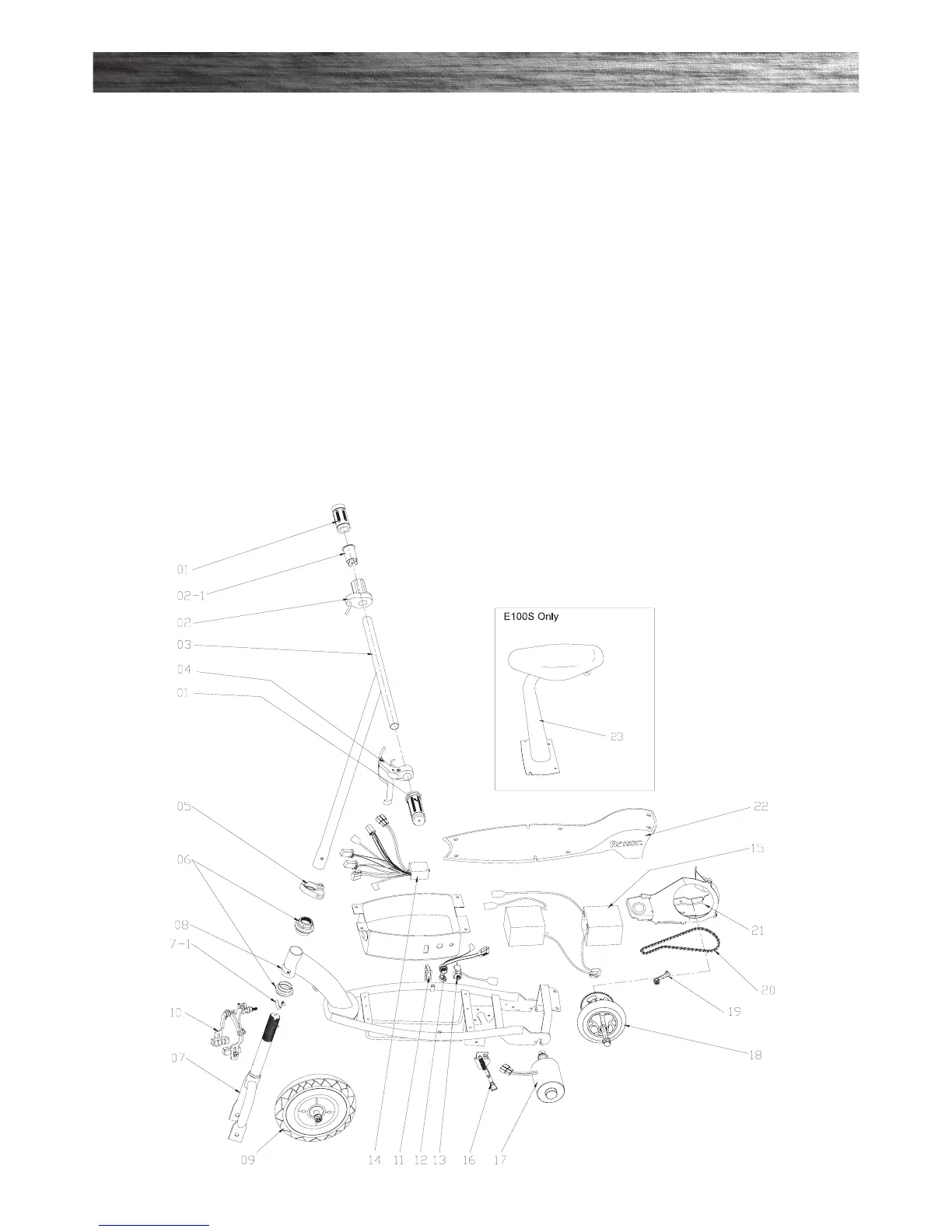

E100 SERIES ELECTRIC SCOOTER PARTS
01 Handlebar grip (right/left)
02 Single speed twist grip throttle
02-1 Sleeve
03 Handlebar stem
04 Brake lever assembly
05 Quick release lever
06 Headset (upper/lower)
07 Front fork
07-1 V Spring push button
08 Limiter
09 Front wheel complete
(refer to pg. 5 for hardware sequence)
10 Front caliper brake with brake pad
11 On/ Off switch
12 Charger port
13 Reset button
14 Control module
15 Battery (2- 12V/ 4.5Ah)
16 Kickstand
17 Motor (24V / 100W)
18 Rear wheel complete
(refer to pg.6 for hardware sequence)
19 Chain Tensioner
20 Chain
21 Chain guard
22 Deck plate with grip tape
23 Seat with post (if applicable)

Razor E100S Specifications

General

Type	Classic scooter
Foldable	No
Kickstand	Yes
Maximum speed	18 km/h
Product color	Black, Red
Number of wheels	2 wheel(s)
Front brake system	Disc
Recommended gender	Any gender
Maximum load weight	54 kg
Recommended age (min)	8 yr(s)
Battery voltage	12 V
Number of batteries supported	2

Weight and Dimensions

Depth	857 mm
Width	420 mm
Height	892 mm
