7
REPAIR AND MAINTENANCE

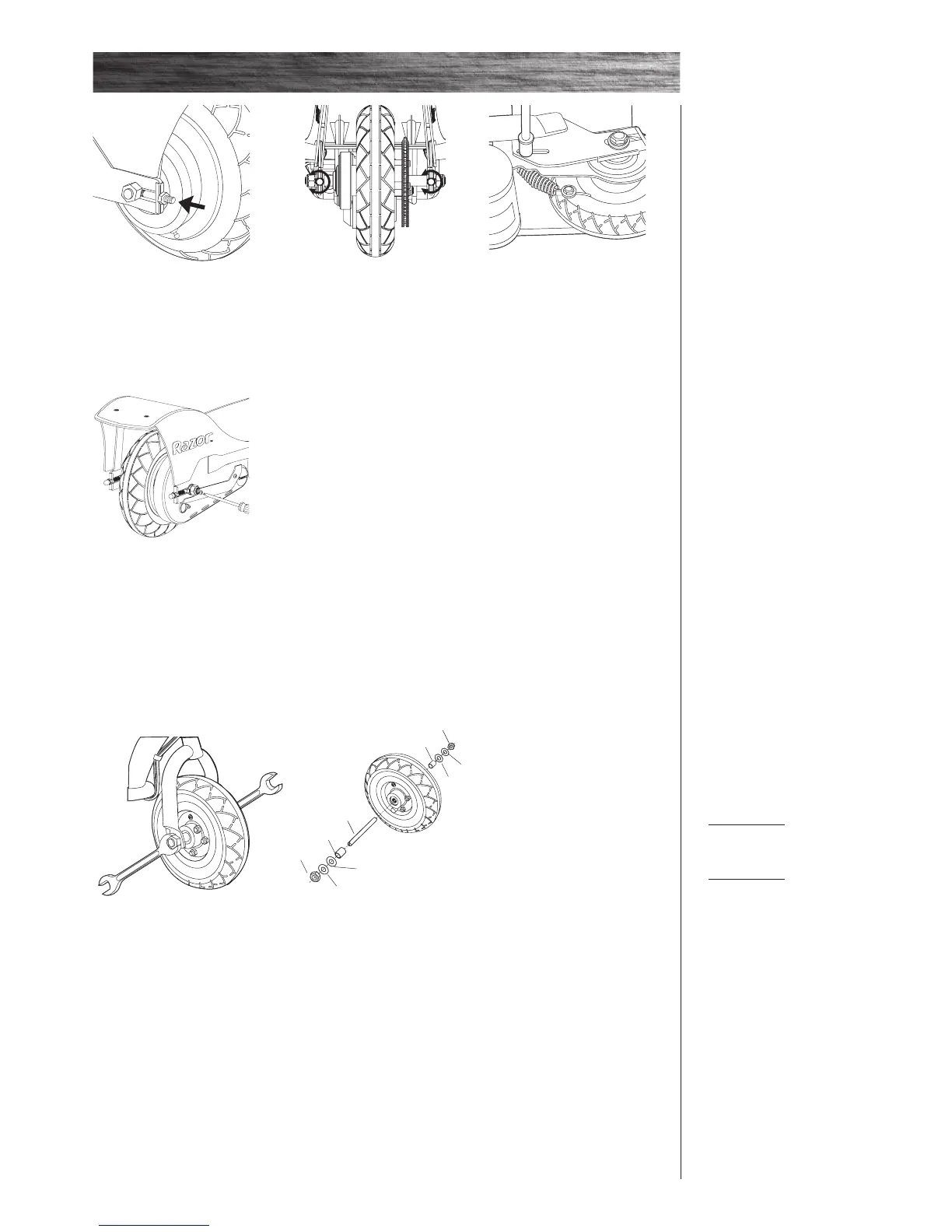

q Front Tire Replacement
Tools required: two (2) 17mm wrenches and a flathead screwdriver.
1 Using two 17mm wrenches,
loosen the front axle bolts by
turning the wrenches counter
clockwise.
2 Remove wheel and install re-
placement wheel.
10 Install the axle adjusters
and axle nuts. Tighten until they
just barely hold the hardware
in place.
11 Tighten both axle adjusters
the same number of turns to fine-
tune the tension on the chain and
center the wheel.
12 Tighten the brake housing
anchor securely. Test ride and
check. Readjust as needed.
13 Replace the chain guard.
Right Side (Throttle)
8-3 - (Short) spacer
8-2 - Washer
8-2 - Washer
8-1 - 17mm locknut
Left Side (Brake)
8-5 - (Long) spacer
8-2 - Washer
8-2 - Washer
8-1 - 17mm locknut
Middle
8-6 - Front axle bolt
8-2
8-1
8-2
8-1
8-2
8-5
8-6
8-3
8-2
