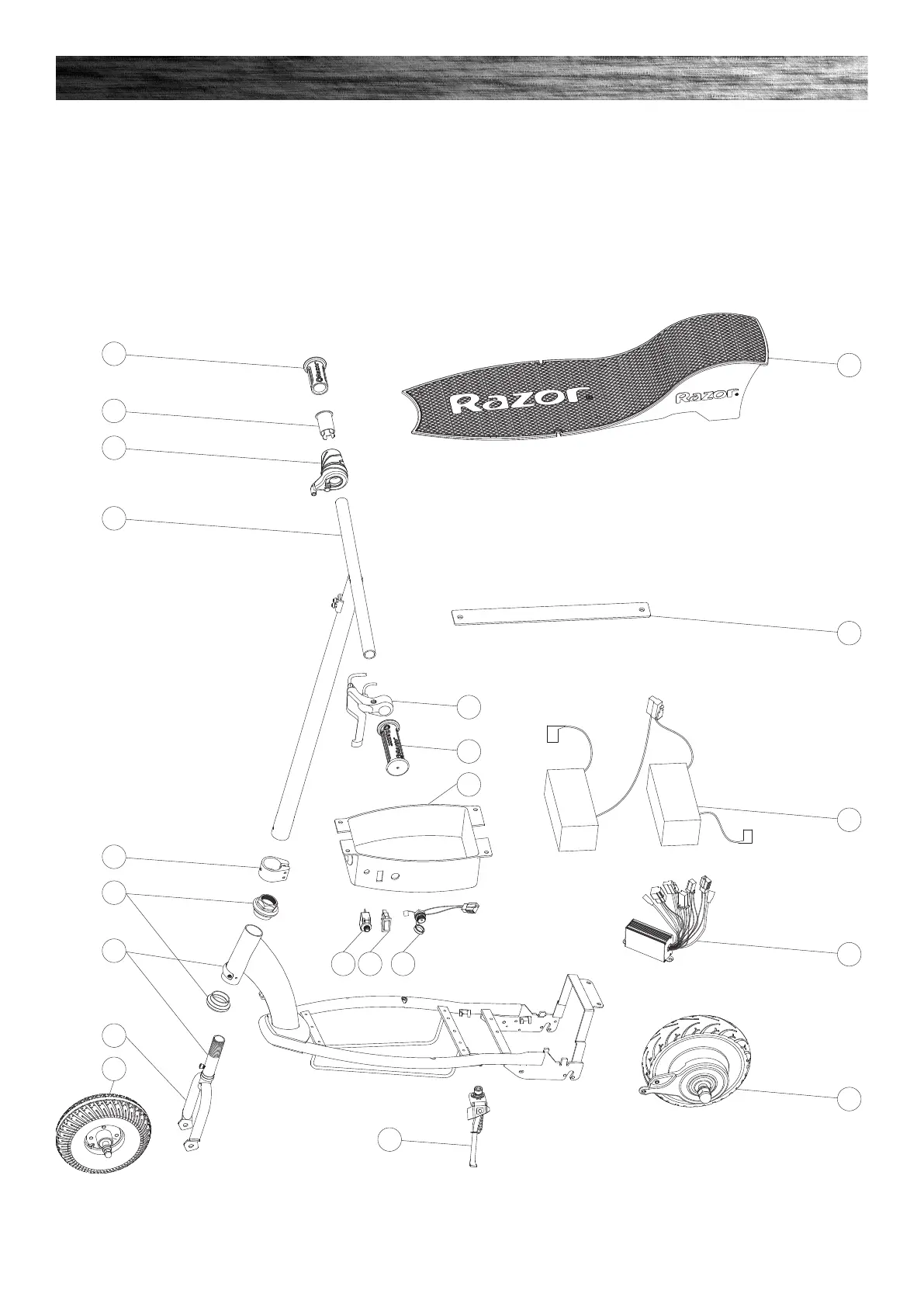

E300 HD SERIES ELECTRIC SCOOTER PARTS
Keep your electric scooter running for years with genuine Razor parts. Visit our website or e-mail us for more information on spare part availability.
(Specifications subject to change without notice.)
1. Handlebar Grips (Right/Left)
2. Variable-Speed Twist-Grip Throttle
2-1 Sleeve
3. Handlebar Stem
4. Brake Lever Assembly
5. Collar Clamp
6. Headset (Upper/Lower)
7. Limiter and Cover
8. Front Fork
9. Front Wheel Complete
(See page 8 for hardware sequence)
10. Reset Button
11. On/Off Switch
12. Charger Port
13. Battery Tray
14. Kickstand
15. Rear Wheel Complete
(See page 9 for hardware sequence)
16. Control Module
17. Battery (2x 12V/7Ah)
18. Battery Bracket
19. Deck Plate with Rubber Tape
