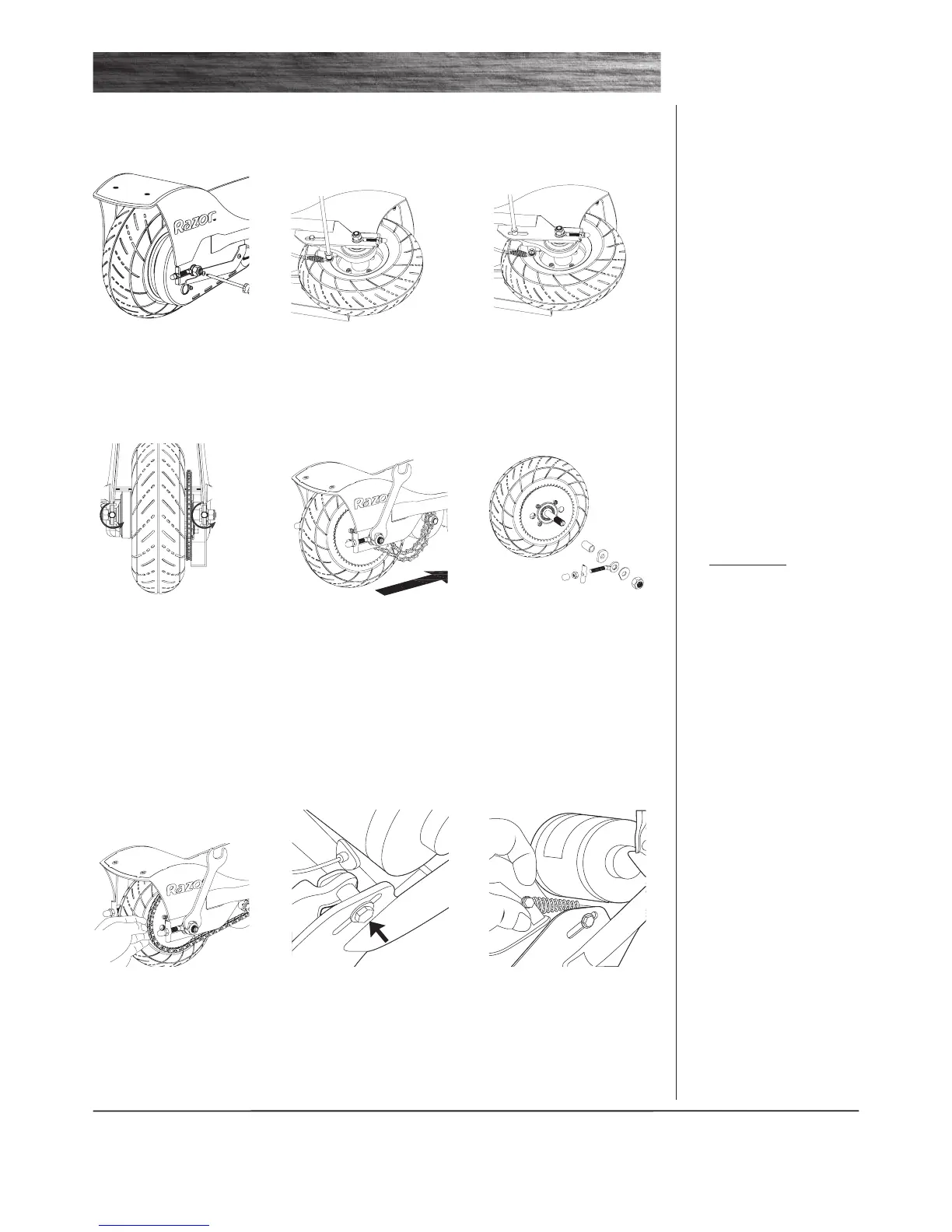

q Chain and Rear Tire Replacement
Tools required: Phillips screwdriver, 10mm wrench, two (2) 8mm wrenches, and two (2) 17mm wrenches.
1 With a Phillips screwdriver,
loosen the two screws and
remove the chain guard.
2 With a 10mm wrench,
loosen the brake cable anchor
and disconnect the cable.
3 With two 8mm wrenches,
loosen brake housing anchor
and disconnect. Keep the spacer
and bolts together.
4 With a 10mm wrench, loosen
both axle adjusters an equal
amount, approximately five
turns.
5 With two 17mm wrenches,
loosen the axle. Slide the wheel
forward to loosen the chain.
6 Remove wheel. Note the se-
quence of the hardware.
Need Help? Visit our web site for replacement parts, product support and a list of authorized service centers at
www.razor.com or call toll-free at 866-467-2967 Monday - Friday 8:00AM - 5:00PM Pacific Time.
Right Side (Throttle)
(Long) spacer
Washer (thick)
Washer (plate cut)
Axle adjusting eye
Locknut
Left Side (Brake)
Spacer (medium)
Brake plate
Spacer (small)
Washer (thick)
Washer (plate cut)
Axle adjusting eye
Locknut
REPAIR AND MAINTENANCE
7 Install new chain or wheel by
maneuvering the chain onto the
sprocket and slipping the axle
into the slots on the frame.
8 To hook up the brake housing
anchor, align the cable guide
adjuster and install the spacer
and bolt. Do not tighten until
final step.
9 Install the brake spring and
thread the cable wire into the
cable anchor. Thread the cable
to its original position and
tighten securely.
