Razor EcoSmart Metro HD

WARNING:
Failure to properly install and tighten
the screws, nuts and bolts that affix
seat can cause you to lose control
and crash.
HEADLINE
Need Help? Visit our website for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer
Service contact information is listed at the back of this manual.
4
ASSEMBLY AND SET-UP
Need Help? Visit our website for replacement parts, product support, a list of authorized service centers in the US and customer service contact information
at www.razor.com. Please have the product I.D. code (located on the white label of your product) available for better assistance. Additional Customer
Service contact information is listed at the back of this manual.
4

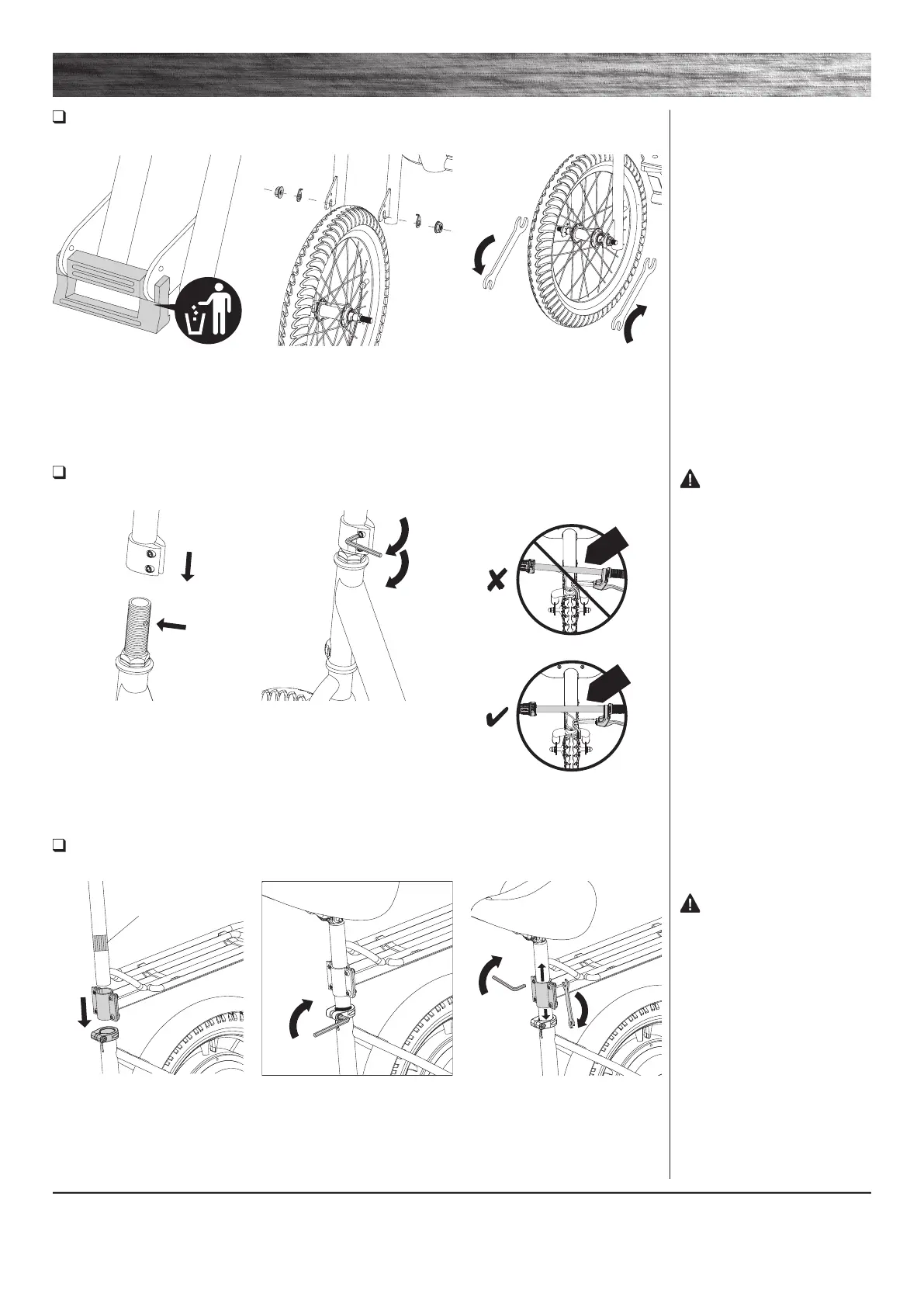

Attaching the Front Wheel
Tools Required: Two (2) 15 mm Wrenches
Attaching the Handlebars
Tool Required: 5 mm Allen Wrench
Attaching the Seat and Luggage Rack (EcoSmart Metro HD Only)
Tools Required: 5 mm Allen Wrench, 10 mm Wrench
A
B
B
A
1 Remove the packing material
from the front fork.
1 Face the handlebars forward with
the throttle on the right and brake
lever on the left, depress the push
button located on the front fork and
insert the handlebar stem until the
button locks securely into the stem.
1 Slide the seat tube through the
luggage rack and into the frame
tube down to the safety line on the
seat tube.
2 Remove axle nuts (A) from the
axle bolt (C) and insert the wheel
into the front fork.
2 Tighten the collar clamp using a
5 mm Allen wrench.
2 The clamp of the luggage rack
should be above the seat clamp.
Adjust seat to the desired height.
Secure the seat by tightening the
collar clamp bolt using a 5 mm
Allen wrench.
3 Adjust the luggage rack to the
desired height and tighten the
four (4) bolts on the luggage rack
with 5 mm Allen wrench and
10 mm wrench.
3 Insert the tab on the safety
washers into the hole on the front
fork and tighten axle nuts using two
15 mm wrenches.
WARNING:
Failure to properly install and tighten
the collar clamp may allow the
handlebars to dislodge while riding
and may cause you to lose control
and fall. When correctly tightened,
the handlebars will not rotate out
of alignment with the front wheel
under normal circumstances.
Note: The cable and wire assembly
from the handlebar must not be
wrapped around the steering tube or
handlebar. Sharp bends or twisting
of the brake cable can cause the
brake to malfunction.
Safety
Line
C
