REPAIR AND MAINTENANCE
Turn power switch “OFF” before conducting any maintenance procedures.
1 To adjust the brake cable
play, thread the brake lever
adjuster in or out 1/4 to 1/2 turn
until the desired brake adjust-
ment is attained. Most
adjustments are complete at
this step. If brake still needs
further adjustment, proceed to
step 2.
2 If brake is too tight or has
too much slack, use a 10mm
open wrench to loosen the
brake cable and adjust accord-
ingly.
3 Inspect the brake pads (A)
for proper alignment against
the wheel or excess wear. To
realign brake pads, loosen the
xing nut (B) and adjust the pad
to contact the rim. Retighten
and test. Readjust as needed.

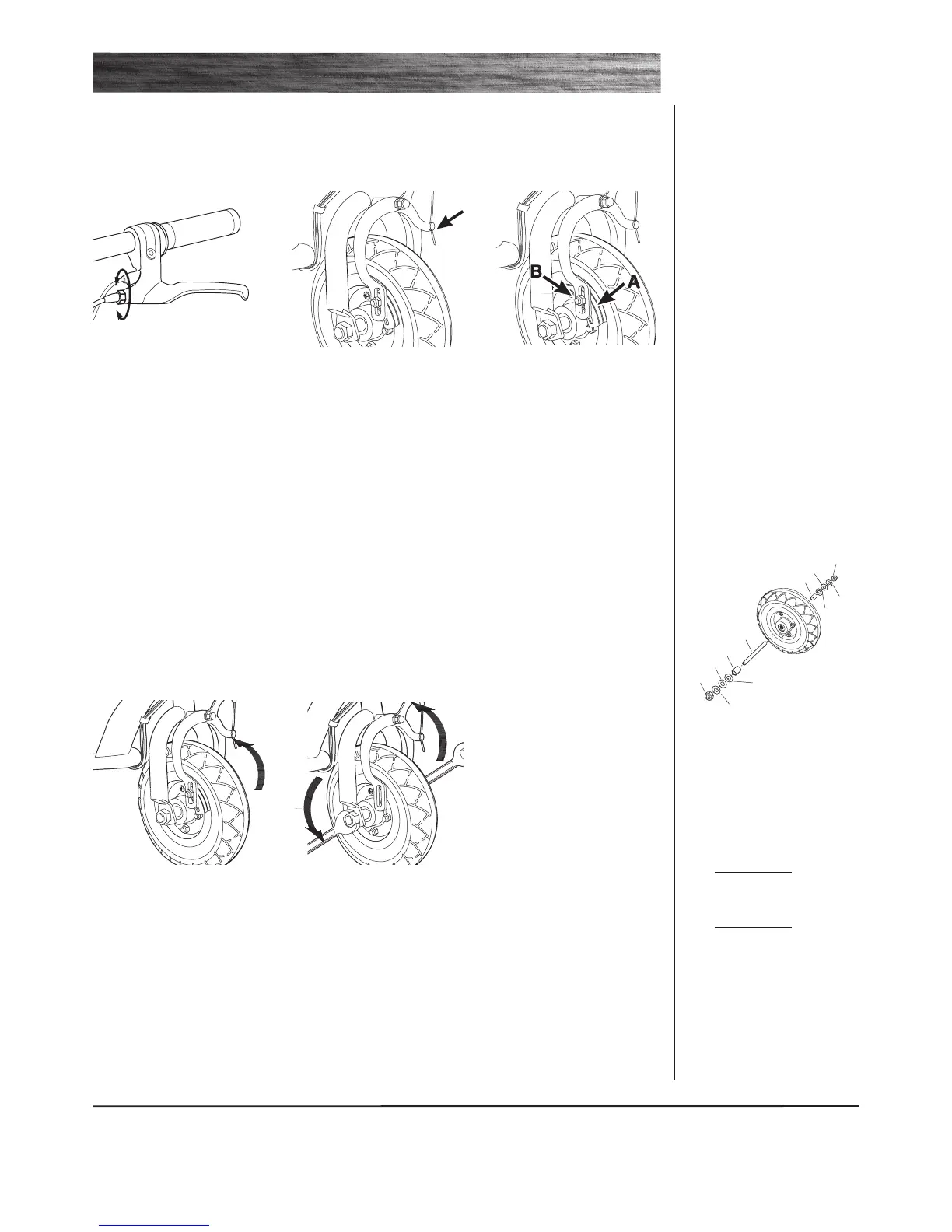

q Adjusting the Brakes
1
Using a 10mm open wrench,
loosen the brake cable bolt.
q Front Wheel Replacement
2
Using two 17mm open
wrenches, loosen the locknuts
by turning the wrenches coun-
ter clockwise. Remove wheel
and install replacement wheel.
8-4
8-1
8-2
8-1
8-2
8-5
8-6
8-5
8-4
Right Side (Throttle)
8-5 - (Short) spacer
8-4 - Flat washer
Fork
8-3 - Flat washer
8-2 - Lock washer
8-1 - 17mm locknut
Left Side (Brake)
8-5 - (Short) spacer
8-4 - Flat washer
Fork
8-3 - Flat washer
8-2 - Lock washer
8-1 - 17mm locknut
Middle
8-6 - Front axle bolt
Note: Front wheel hardware
sequence
8-3
8-3
To Next Page
