REPAIR AND MAINTENANCE

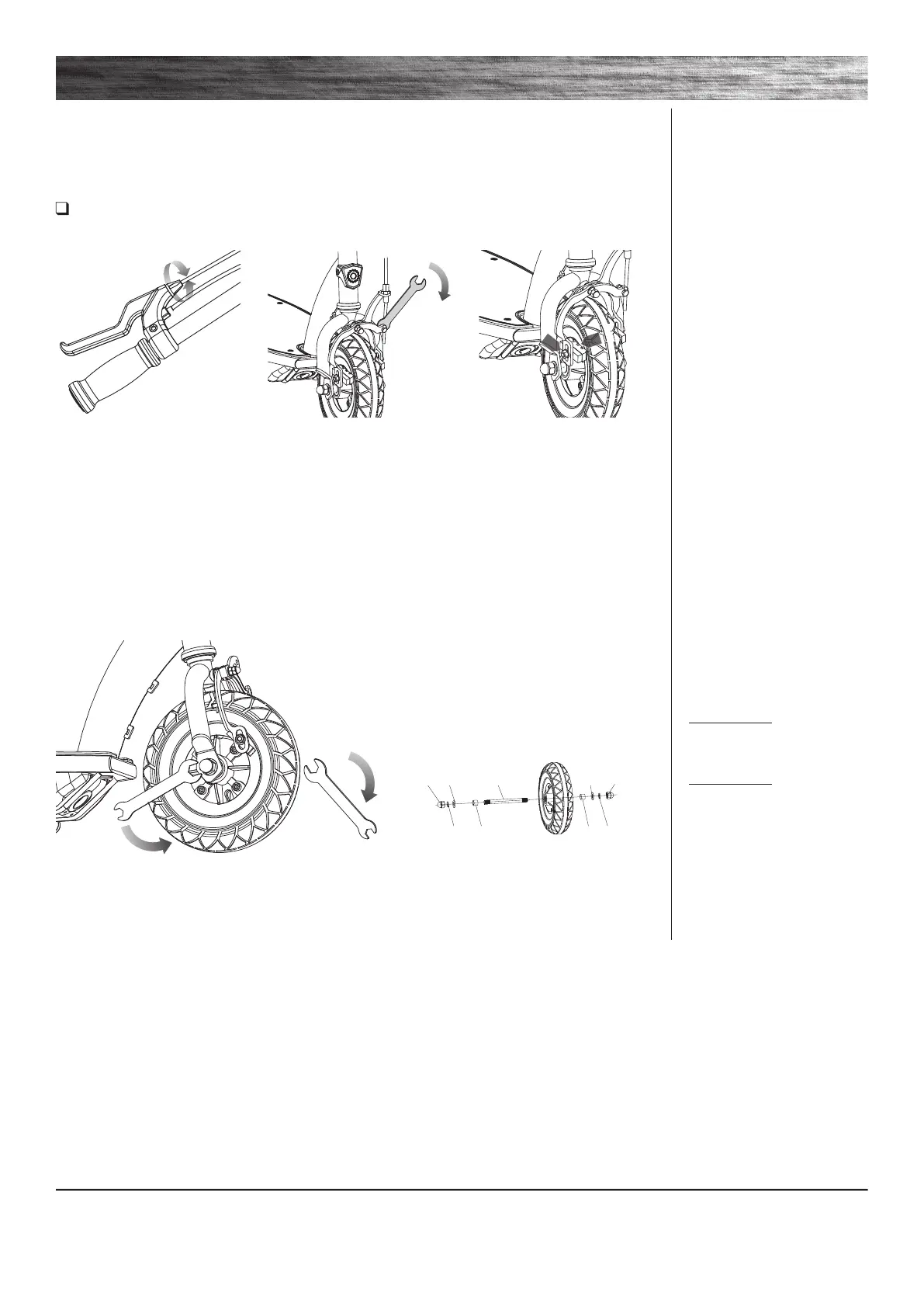

1 To adjust brake cable play, thread
the brake lever adjuster in or out 1/4
to 1/2 turn until the desired brake
adjustment is attained. Most adjust-
ments are complete at this step. If
brake still needs further adjustment,
proceed to step 2.
2 If brake is too tight or has too
much slack, use a 10 mm wrench
to loosen the brake cable and
adjust accordingly.
3 Inspect the brake pads (A) for
proper alignment against the wheel
or excess wear. To realign brake
pads, loosen the fixing nut (B) and
adjust the pad to contact the rim.
Re-tighten and readjust as needed.
Verify proper brake function prior to
riding the scooter.
Adjusting the Brake
Required Tool: 10 mm Wrench (not included)
Turn power “OFF” before beginning repair or maintenance:
• Read the instructions
• Remove charger plug
• Turn the power off
• Secure the product under repair
• Exercise caution around
exposed parts
• Contact Razor customer service
if unsure about any repair or
maintenance
Right Side (Throttle)
8-4 Spacer
8-3 Washer
8-2 Spring Washer
8-1 M10 locknut
Middle
8-5 Front axle bolt
Left Side (Brake)
8-4 Spacer
8-3 Washer
8-2 Spring Washer
8-1 M10 locknut
1 Using two (2) 16 mm wrenches, loosen the axle bolt.
Remove wheel and install replacement wheel.
(Note the sequence of the hardware)
q Front Tire Replacement
Required Tools: Two (2) 16 mm Wrenches (not included)
Note: Front wheel
hardware sequence
To Next Page
