RCA 27V412T Technical Service Data

MAIN BOARD
SET 5303 Page 3
Page 3 SET 5303

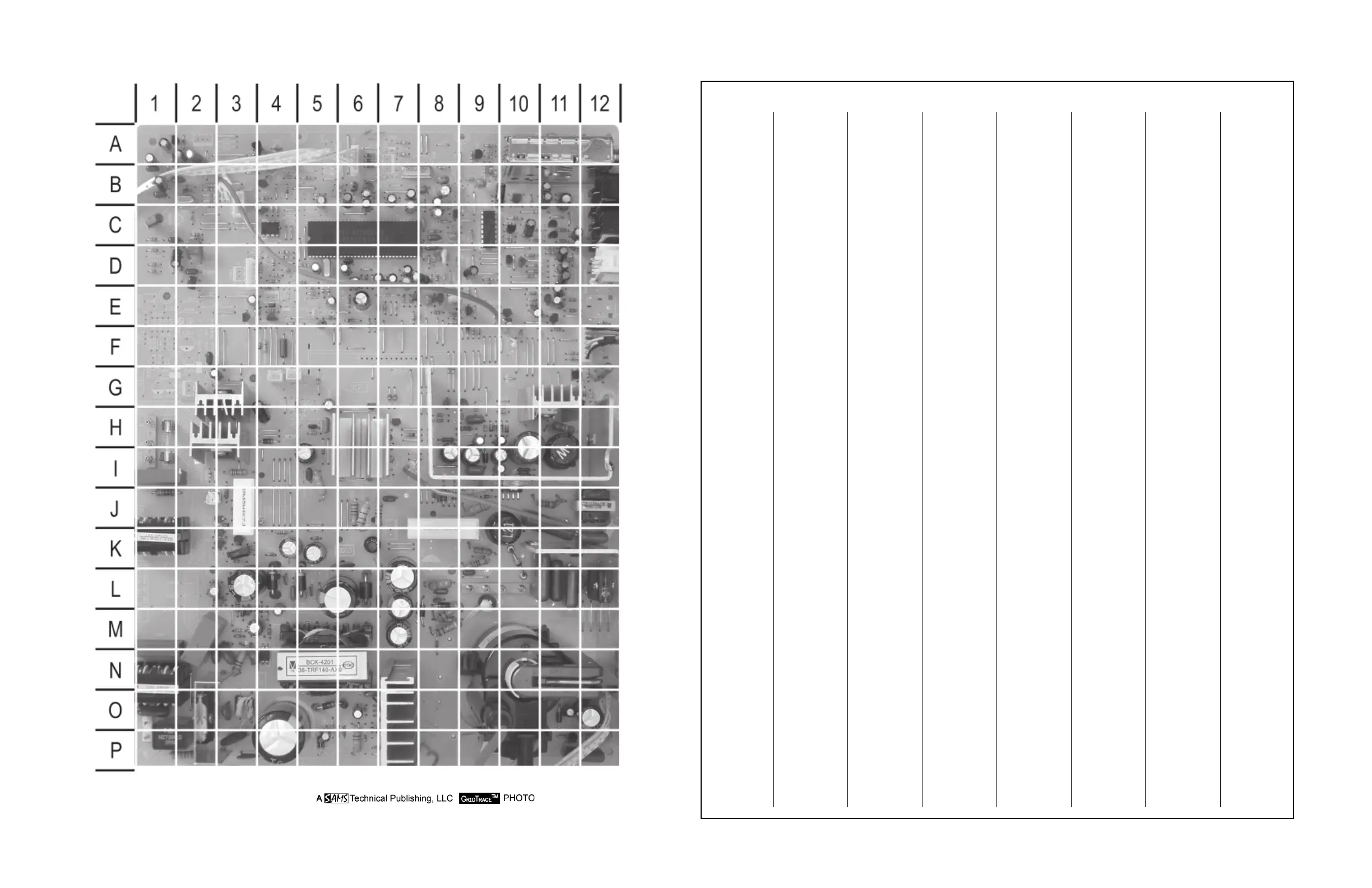

MAIN BOARD, GRIDTRACE LOCATION GUIDE
C008 B5
C01 L2
C021 C4
C022 C4
C025 B5
C026 B5
C027 D4
C028 E3
C029 E4
C030 E5
C031 E5
C032 E5
C033 E5
C034 E5
C041 D5
C043 D4
C101 A12
C104 A10
C105 A11
C106 A11
C107 A10
C108 B9
C109 B9
C209 A3
C210 A4
C211 A4
C212 A4
C213 B6
C214 B6
C216 B6
C217 B6
C218 B6
C219 B7
C220 B8
C221 B7
C223 C7
C224 B8
C225 B7
C226 C8
C227 B8
C228 C8
C229 D9
C230 C8
C231 D8
C233 D8
C234 D8
C235 D7
C236 D7
C237 D7
C238 D8
C239 E7
C241 D7
C242 C8
C243 D7
C244 D6
C245 E6
C246 D6
C247 D6
C248 D6
C249 G12
C250 H9
C251 H10
C254 B8
C261 G4
C262 H4
C263 G2
C264 F2
C266 J7
C280 E7
C281 E8
C301 I8
C302 I10
C303 I10
C304 H9
C305 I9
C306 J9
C308 I9
C309 L9
C311 L8
C315 J8
C401 I12
C402 J10
C403 I12
C411 L11
C412 L11
C413 K12
C414 L11
C415 H10
C419 J11
C422 L7
C431 M7
C432 M7
C433 L8
C435 M7
C441 O12
C442 O12
C443 O11
C451 P12
C624 I5
C625 I5
C626 I7
C627 I7
C630 H5
C631 H5
C634 H7
C661 G5
C801 I1
C802 M1
C803 O1
C804 O2
C804A N2
C805 O3
C805A N3
C806 P4
C807 P3
C810 O6
C811 O6
C812 P5
C813 P6
C814 P5
C815 O6
C820 L4
C821 K4
C822 K4
C826 L7
C827 K6
C828 L6
C829 M4
C830 L5
C831 K5
C832 K5
C833 L3
C834 K3
C835 M3
C836 M3
C840 N3
C902 F11
C903 D11
C904 F11
C905 E11
C908 D11
C909 C11
C910 C11
C911 E10
C912 E10
C913 D11
C914 D11
C915 F10
C916 F10
C924 B10
C925 B10
C926 B11
C927 B11
C928 B11
C929 C10
C930 C10
C1001 B2
C1002 B2
C1004 B2
C1005 B2
C1006 B2
C1008 B1
C1009 B1
C1010 A1
C1011 B1
C1012 A1
C1013 A1
C1014 A2
C1015 C1
C1016 A2
C1017 D2
C1018 C1
C1019 D1
C1023 D2
C1024 D2
C1025 A2
C1031 C2
C1033 B2
C1034 B2
C1035 C2
C1036 D2
C1037 D1
C1038 D1
D001 E4
D01 L3
D02 L3
D101 A10
D202 B6
D203 A6
D204 A6
D205 E7
D206 F9
D207 B7
D208 E6
D209 E6
D210 G12
D211 H10
D212 H10
D213 H9
D214 D9
D215 A4
D262 H12
D301 I9
D303 J8
D304 J7
D309 J8
D310 J9
D410 G11
D411 K10
D412 K11
D420 O11
D431 M8
D432 L8
D441 O12
D602 G4
D810 P5
D811 O5
D811A O5
D811B O6
D812 P6
D813 P6
D820 L4
D820A K4
D820B L4
D822 L6
D822A L6
D822B L6
D823 L5
D823A L5
D823B L5
D824 H4
D826 J3
D828 M3
D829 M4
D834 K3
DB801 O2
F801 H1
IC001 C4
IC101 C5
IC201 I3
IC202 G3
IC301 J10
IC602 H6
IC801 O7
IC802 N4
IC901 C9
IC1001* C1
J215 G8
J603 H7
J604 G7
J1005 B2
L001 F4
L002 E5
L101 B9
L102 B9
L204 B8
L205 B8
L206 C8
L208 E8
L209 E8
L212 B6
L413 I11
L414 J10
L801 K6
L1001 D2
P001 D3
P201 A6
P411 L9
P421 O12
P601 G4
P602 G4
P801 H1
P803 P1
P903 C12
P904 D12
P905 B12
P911 F12
Q007 E3
Q008 E4
Q01 L3
Q101 A9
Q202 G11
Q203 E8
Q204 E9
Q205 G12
Q208 A4
Q209 B4
Q401 H12
Q402 P12
Q411 L12
Q412 G8
Q413 G9
Q414 H11
Q601 H7
Q602 G6
Q603 H7
Q820 K3
Q821 K3
Q822 M3
Q823 K3
Q824 K3
Q825 J3
Q901 E11
Q902 E11
Q903 C11
Q904 C11
Q911 B10
Q912 C10
Q913 D10
Q914 D10
Q917 C8
Q918 E10
Q919 E10
Q1003 A1
R001 E4
R003 B4
R004 E4
R005 B4
R006 B5
R01 L2
R02 L3
R010 D4
R024 B4
R025 C4
R026 C4
R030 F4
R031 F4
R032 E4
R033 D5
R034 E5
R036 D4
R036A D4
R043 D4
R044 D5
R101 A11
R101A A11
R102 B9
R103 B9
R104 A9
R106 A9
R107 A9
R108 A9
R209 A4
R211 B4
R212 A4
R213 A4
R214 B6
R215 B6
R216 B6
R219 B6
R220 B6
R222 A7
R223 A7
R225 D8
R226 C8
R227 C8
R228 C8
R229 D8
R230 D8
R231 D8
R232 D8
R233 E8
R233A D8
R234 E8
R235 E9
R238 E8
R239 E7
R241 E7
R242 E7
R243 E7
R244 E7
R245 D6
R246 D6
R247 E6
R248 D7
R250 G12
R251 G12
R253 G12
R254 E8
R255 E8
R256 F9
R257 F9
R258 D8
R261 G12
R262 H9
R266 J7
R302 H9
R303 H8
R304 J9
R309 K9
R310 J9
R311 I10
R312 I10
R313 J9
R316 M8
R401 H12
R402 J11
R404 K8
R412 H8
R413 H8
R414 H10
R415 H11
R416 G11
R417 H9
R418 G8
R419 K9
R420 H9
R420A H10
R422 L8
R431 M8
R432 M8
R433 M8
R453 P11
R460 N12
R461 P12
R605 H5
R605A H7
R606 H6
R608 I5
R610 H7
R611 I5
R612 I7
R618 D4
R656 G5
R801 J1
R810 P2
R811 P6
R812 P6
R813 O5
R814 O5
R815 P6
R816 P6
R820 L4
R821 L7
R823 L5
R825 K4
R826 J6
R827 J3
R828 J6
R829 K3
R830 M4
R831 M3
R832 K3
R833 M4
R834 J3
R834A J3
R834B J3
R835 I3
R836 L3
R837 K3
R838 I2
R840 N3
R901 F11
R902 E12
R903 D10
R904 E11
R905 D10
R906 E11
R908 D11
R910 C11
R911 C11
R912 C11
R913 C11
R914 E6
R915 E6
R916 F11
R917 D11
R920 C10
R923 C10
R924 B11
R925 B11
R926 B10
R929 D10
R930 C10
R931 C10
R932 D11
R932A E10
R933 B10
R934 D10
R934A E10
R935 B10
R936 C10
R937 C10
R944 D9
R945 D9
R946 D8
R946A C9
R947 C8
R948 B8
R951 D11
R952 D11
R953 E11
R954 E11
R1001 C2
R1002 D2
R1004 D1
R1005 A1
R1006 A2
R1007 A2
R1010 C2
R1011 B2
R1022 C1
R1023 D1
RL01 M1
RT801 P1
RT802 P3
S1202 F6
T401 J12
T402 N10
T801 K1
T802 N1
T803 N5
TU101 A11
VR802 J2
X001 D5
X201 E8
X202 D8
X1001 B2
Z101 B7
* Located on
other side of
board.
