SET 5303 Page 1
TUNER INFORMATION
TUNER VOLTAGE CHART
Pin Voltage
(1) AGC 1.8V
(2) VT 0V
(3) GND 0V
(4) SCL 4.0V
(5) SDA 4.4V
(6) VCC 4.8V
(7) VCC 4.8V
(8) NC 0V
(9) 33V 33.0V
(10) NC 0V
(11) IF1 0V
NOTE: Voltages do not change
on different bands.
(1)
(11)
(9)
(7)
(5)
(3)
(2)
(4)
(6)
(8)
(10)

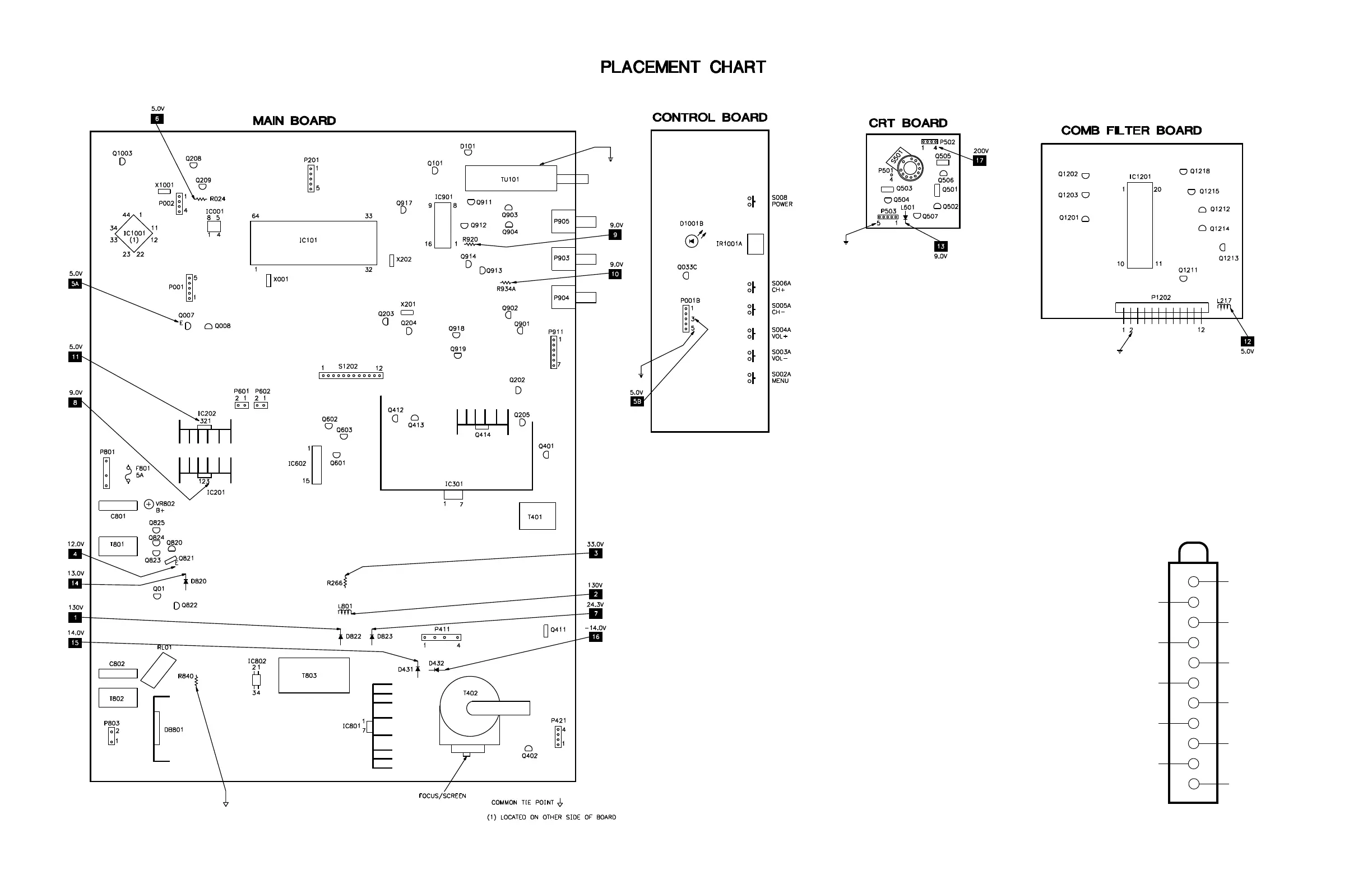

TUNER TERMINAL GUIDE
